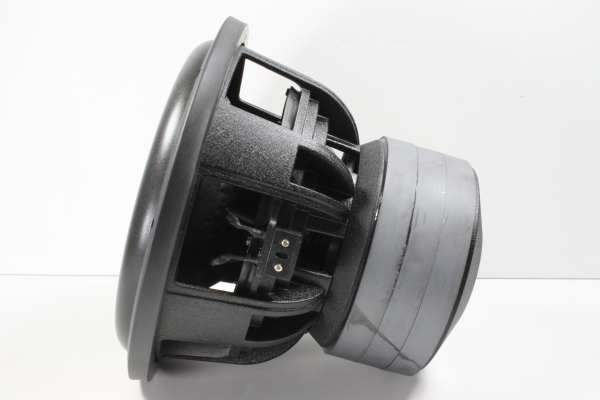

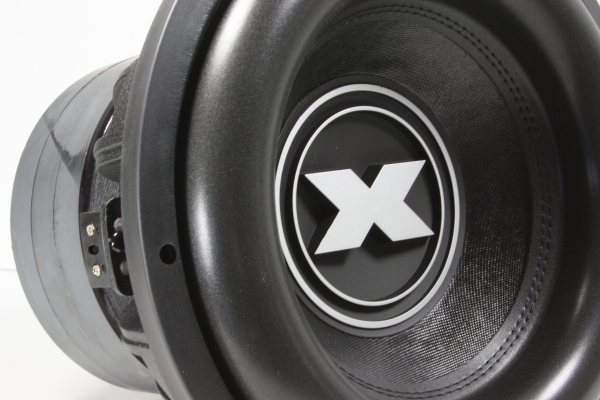

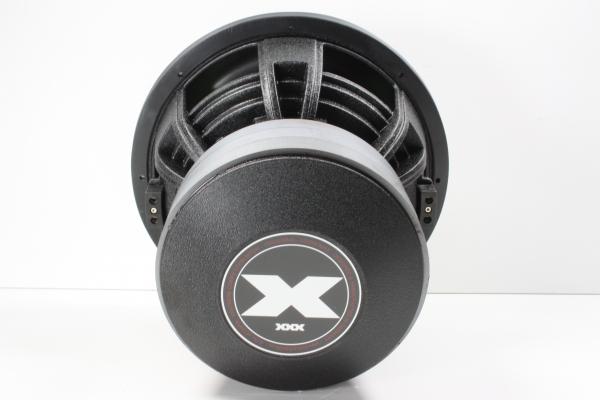

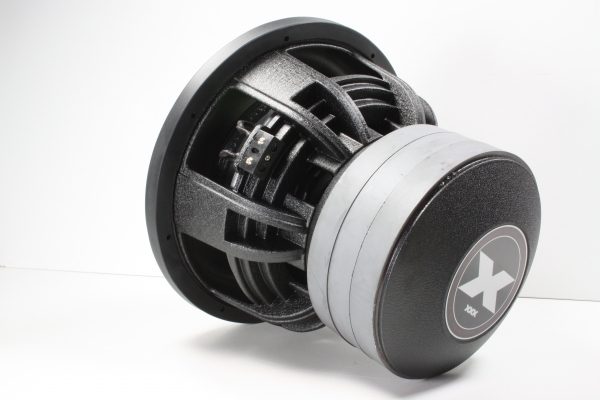

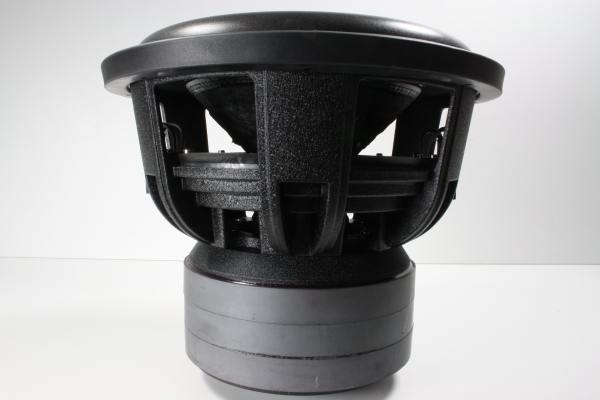

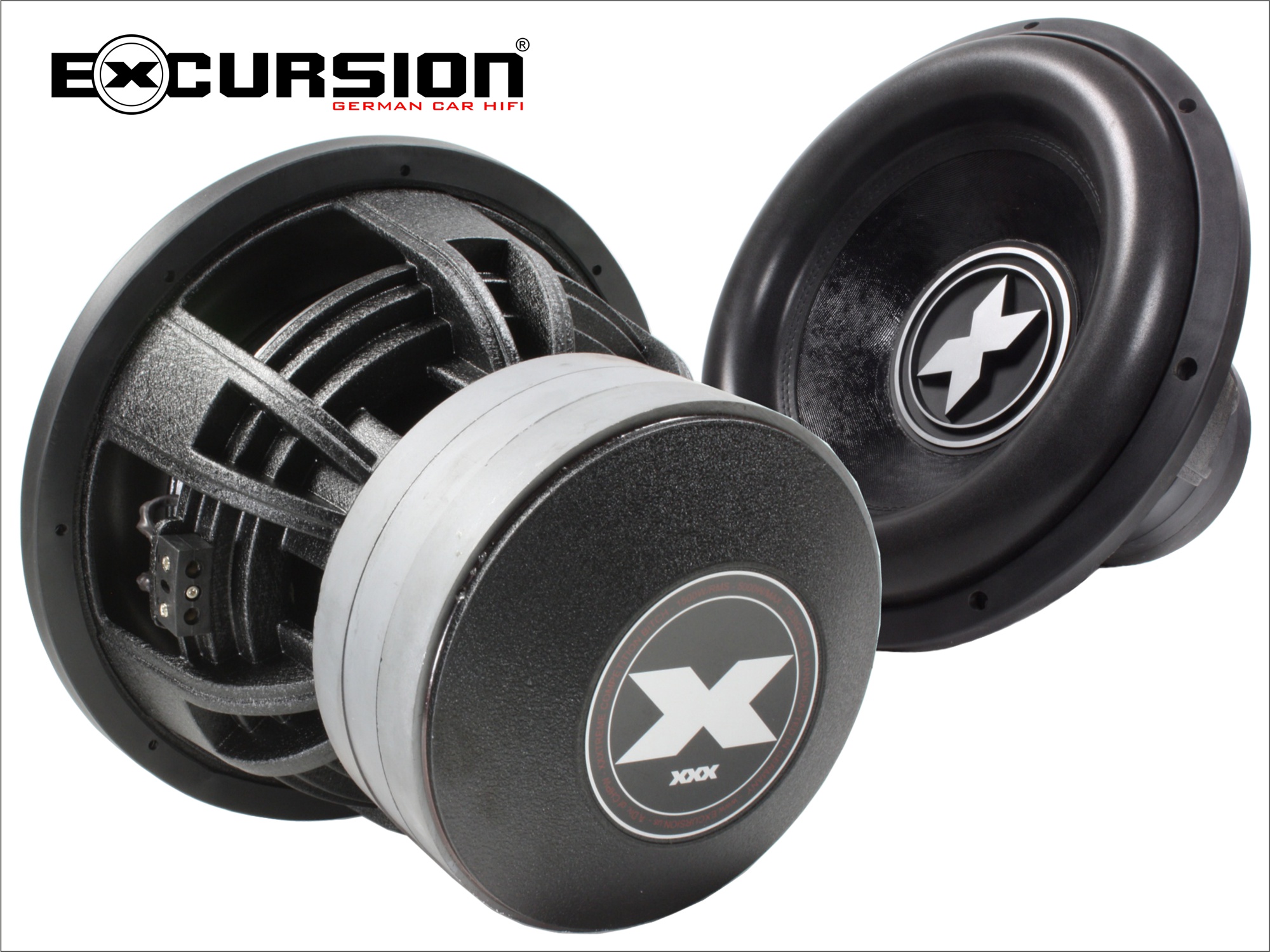

Excursion XXX.v2 12 D2

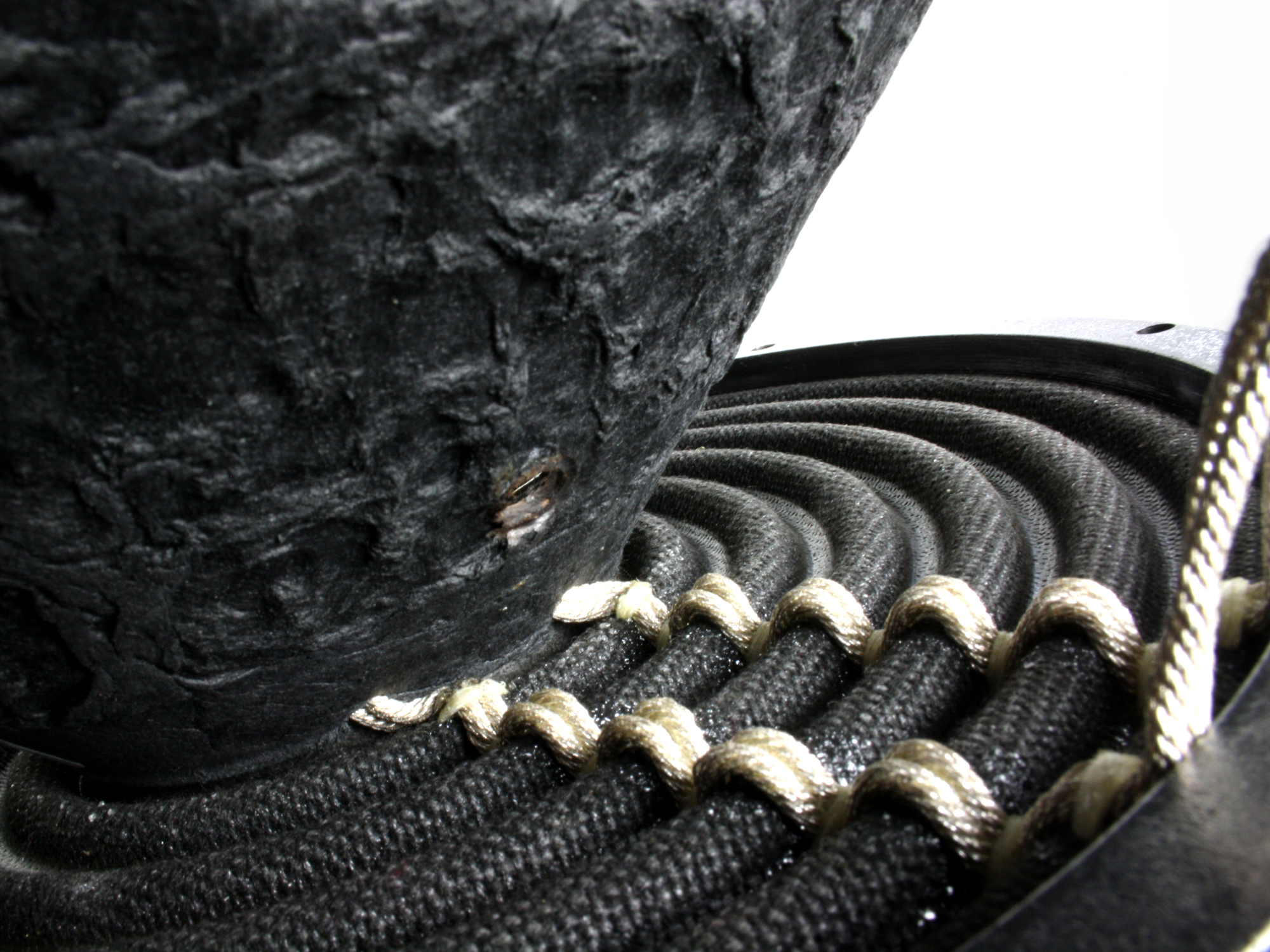

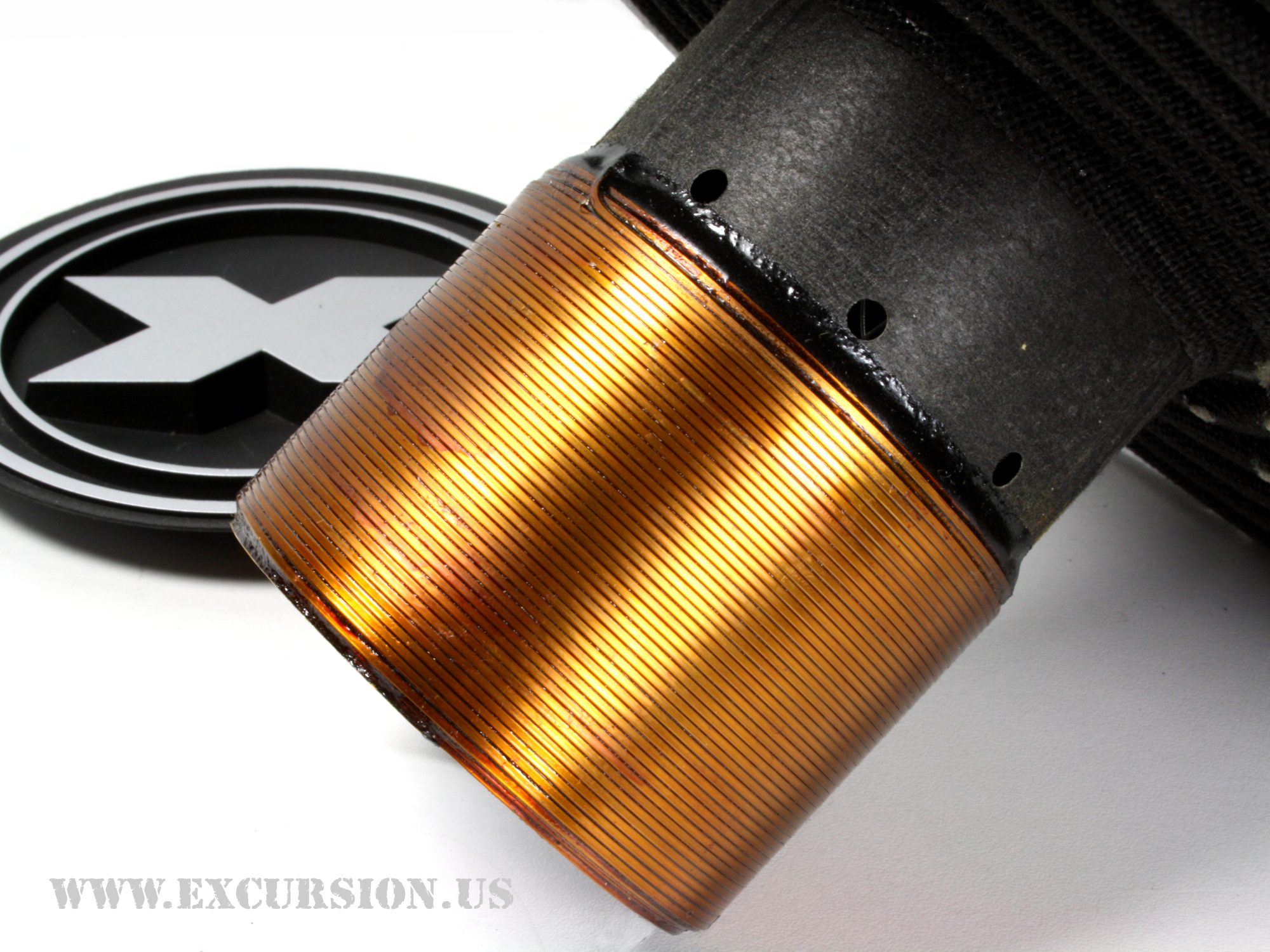

12" / 30cm - 2x2Ohm 23,3kg 2000 RMS / 6000 W 3"CCAR 6L Alu Flat VC 700oz Y35 Tripple Stack Motor MD=242mm ID=286mm OD=318mm Dual Composit black linear Spider 8GA Terminal - 12GA Dual Tinseal Black stiched 70:5 HDR FAT Surround Roll Range Height 64mm XMAX linear 18.5mm BL @ Series 24.3 Suspension Compliance Cms 0.039 Mechanical Q Factor Qms 5.04 Electrical Q Factor Qes 0.75 Total Q Factor Qts 0.65 Moving Mass Mms 377,8 g Eq.Cas Air Load( liters) VAS Liter 9.59 Resonant Frequency Fs 43 Hz Effective Pistion Area SD 471.4
