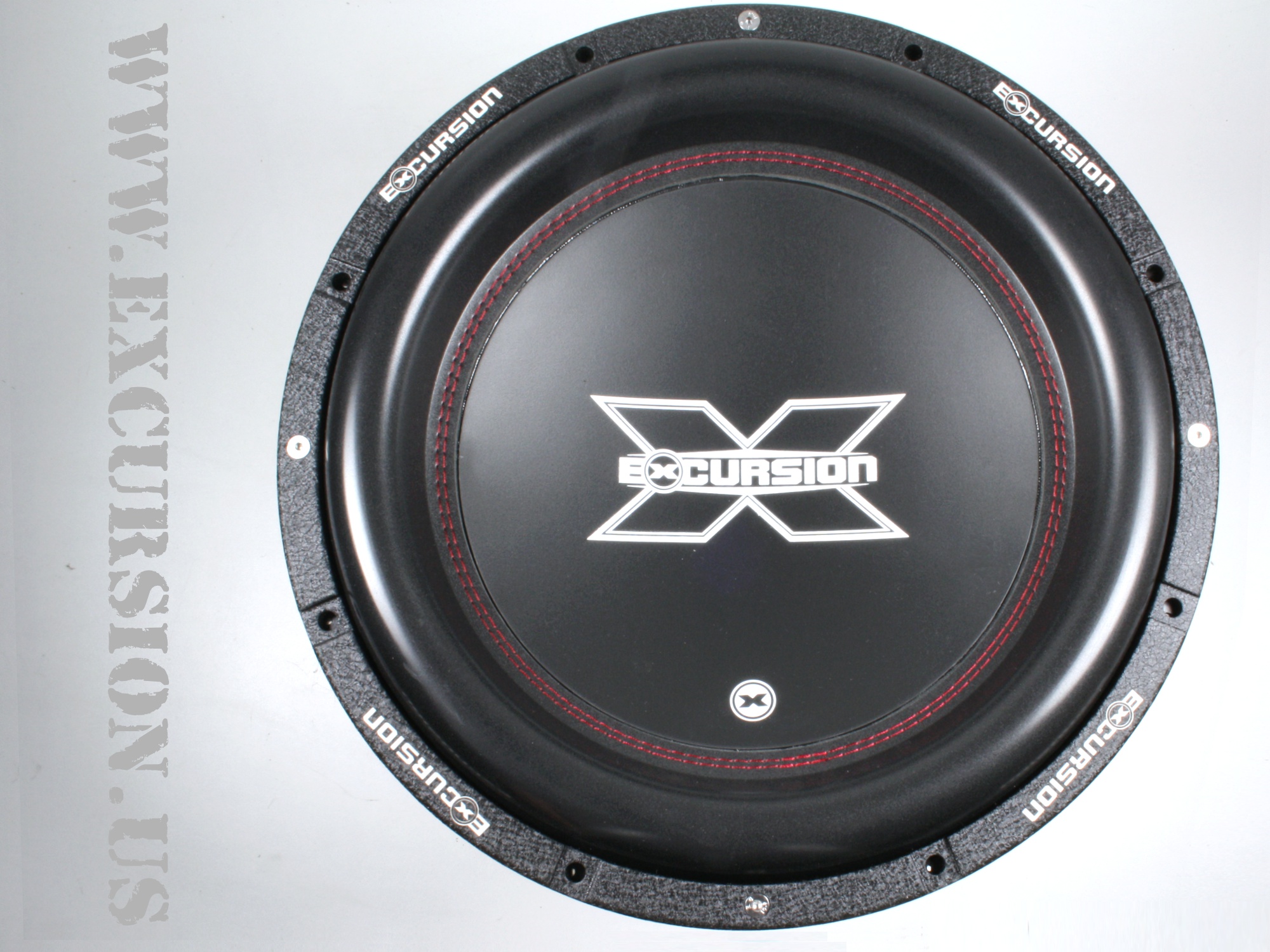

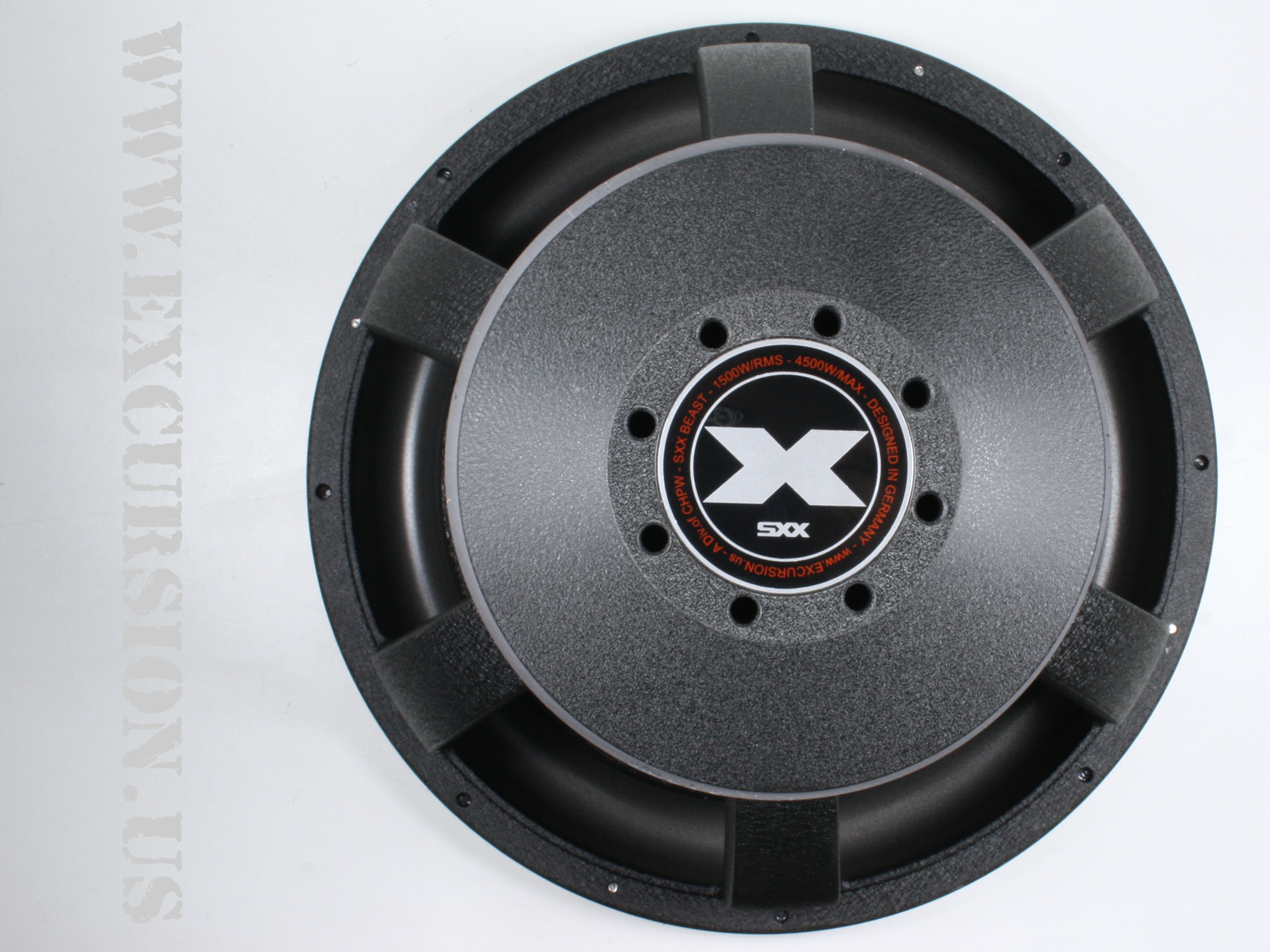

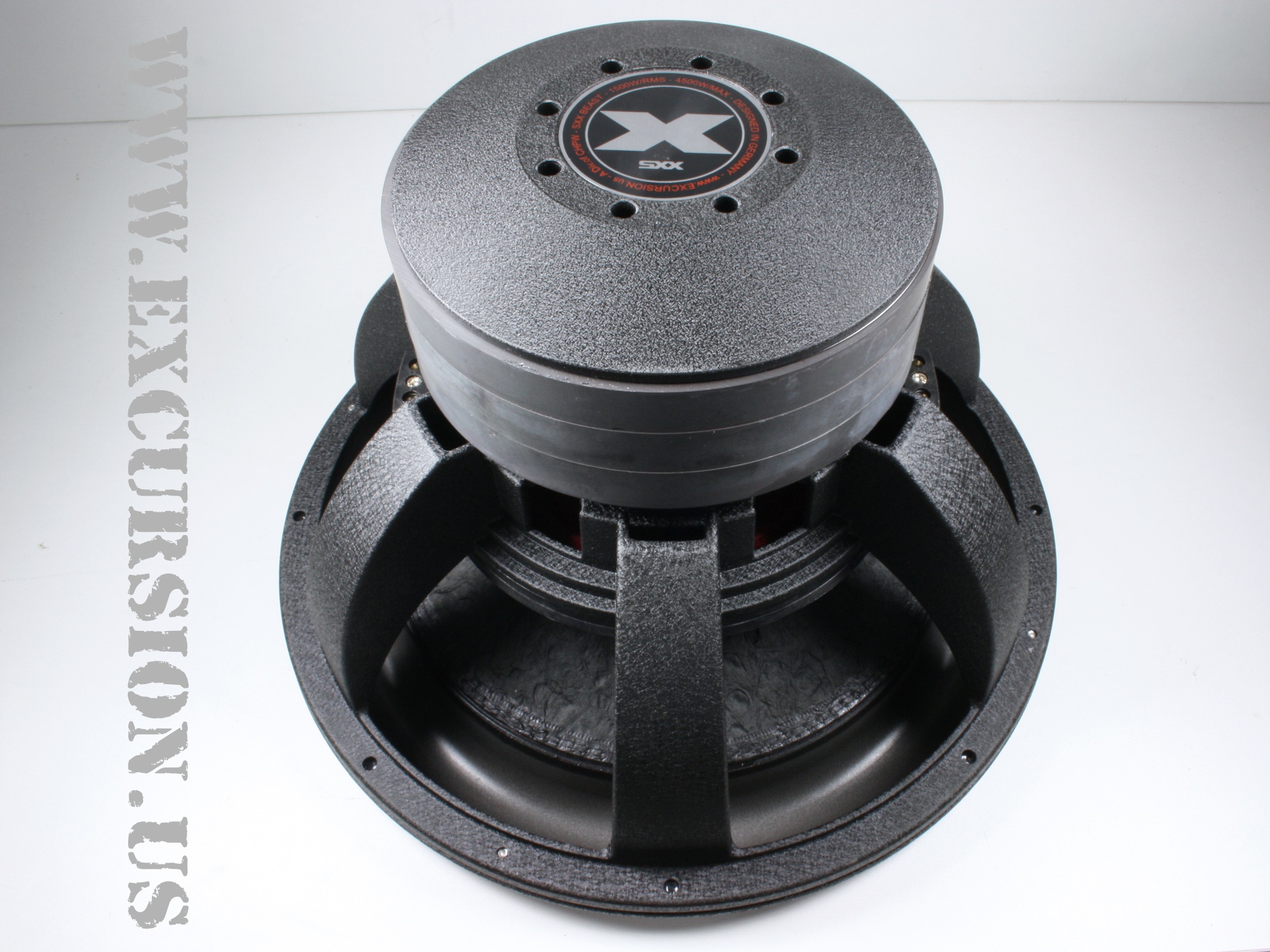

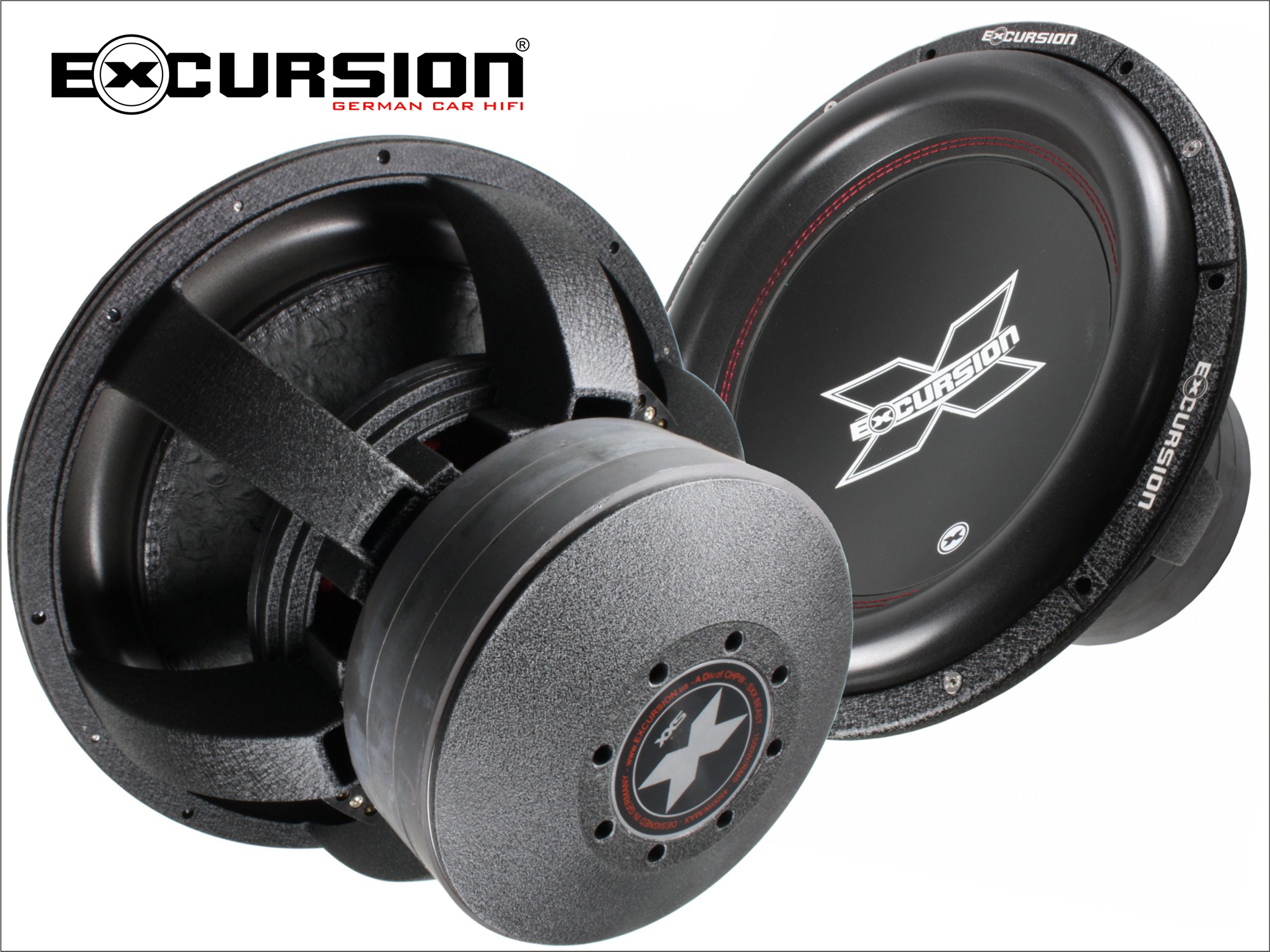

Excursion SXX v2 15 D2

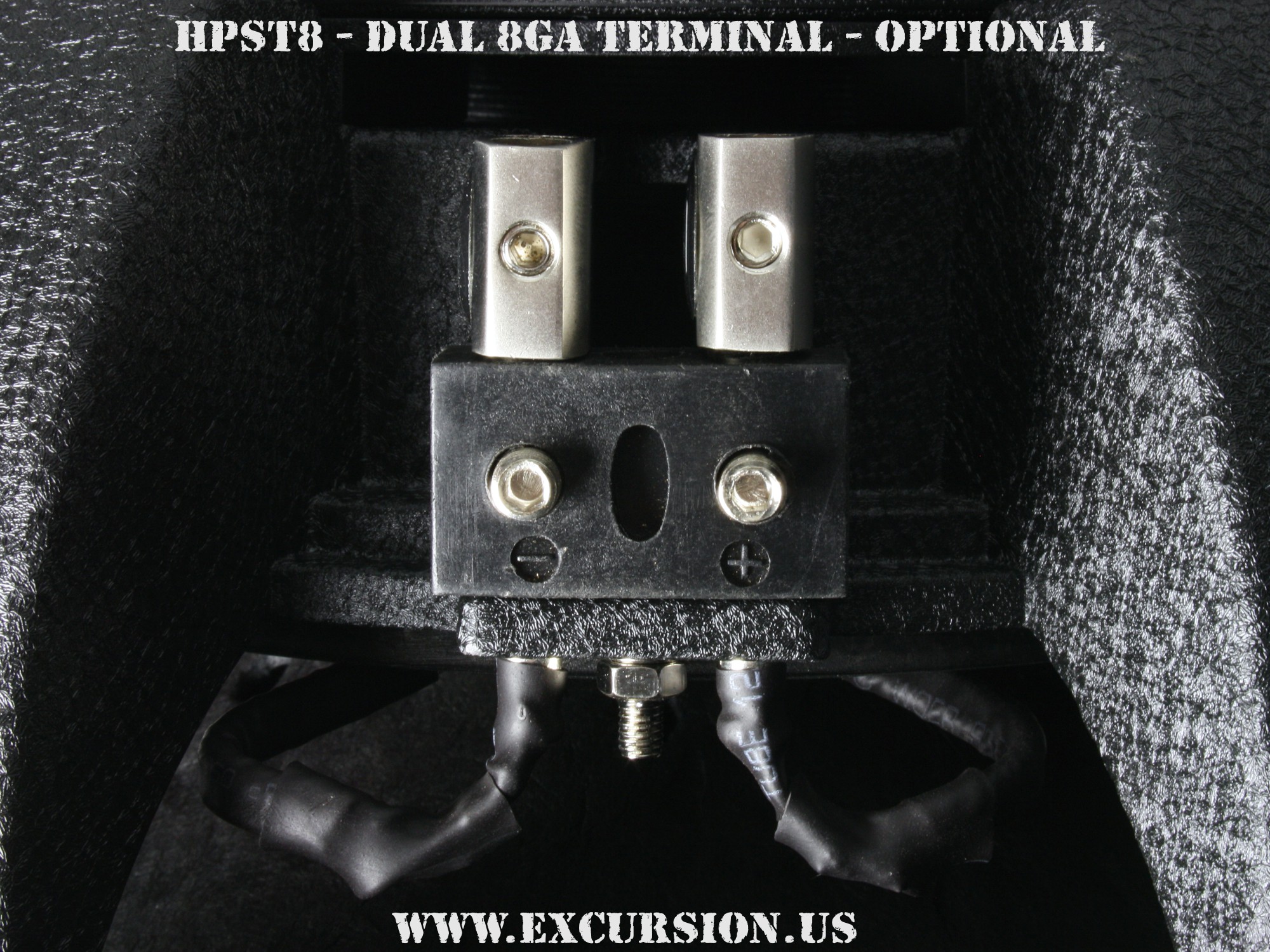

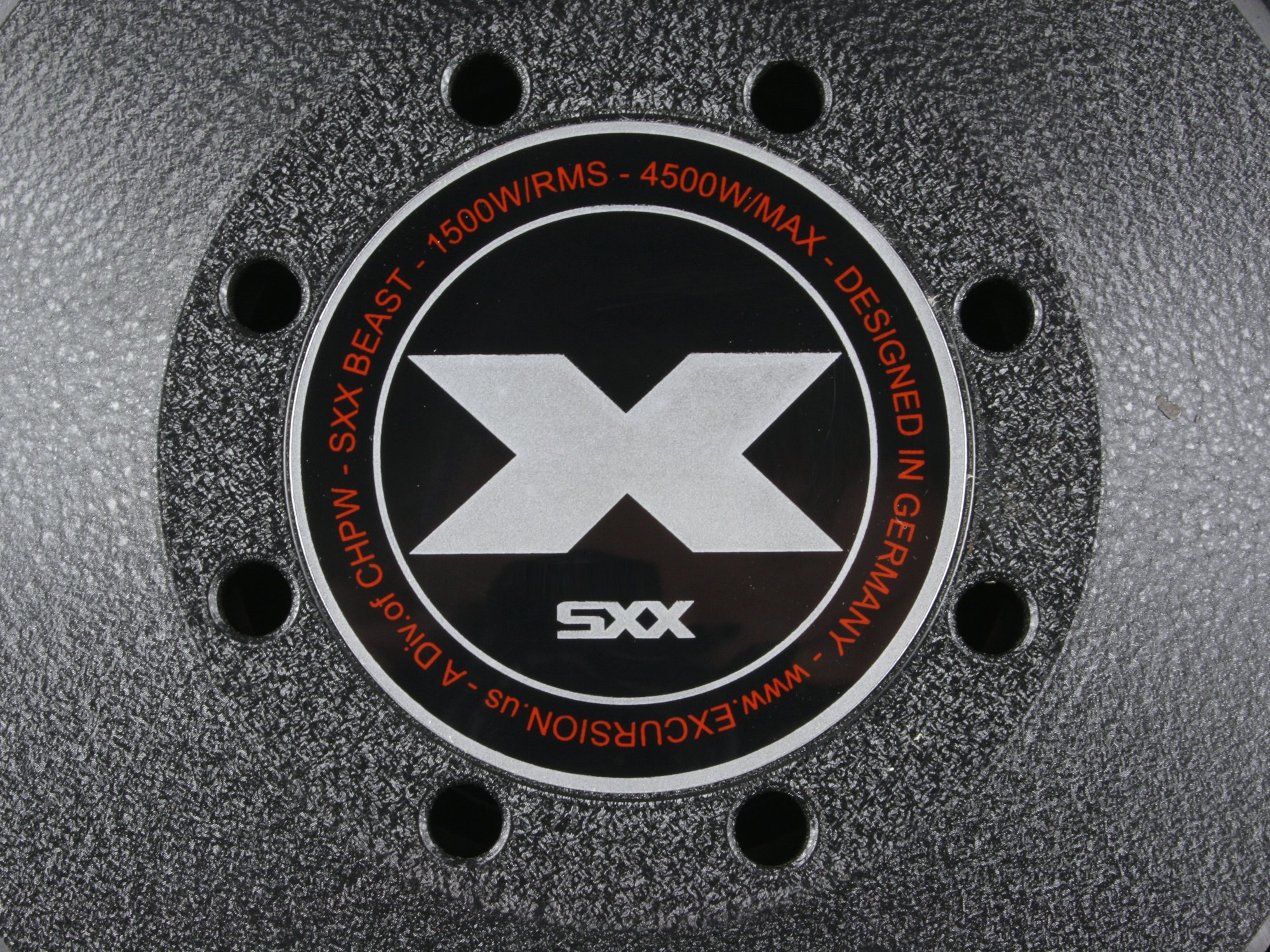

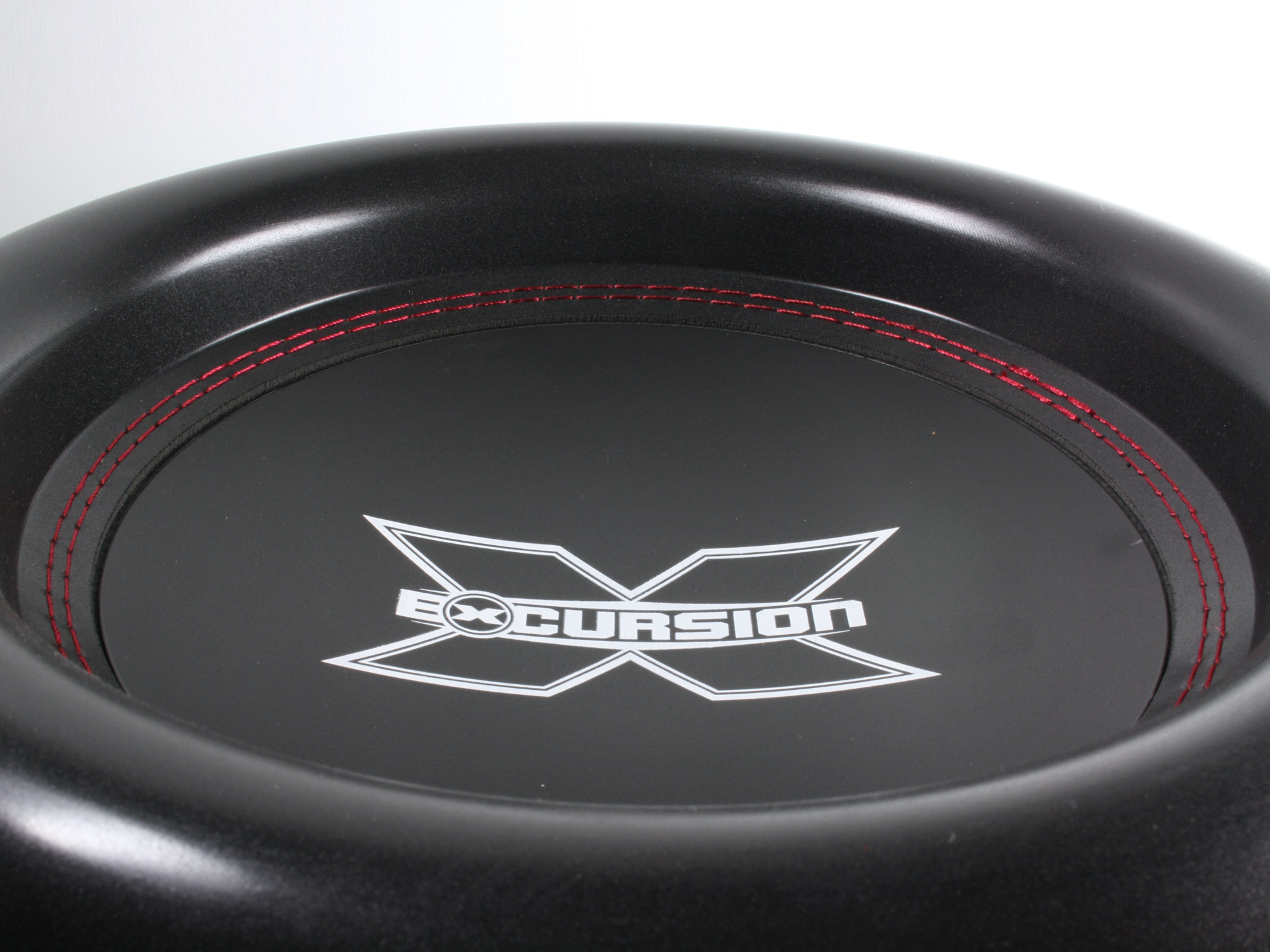

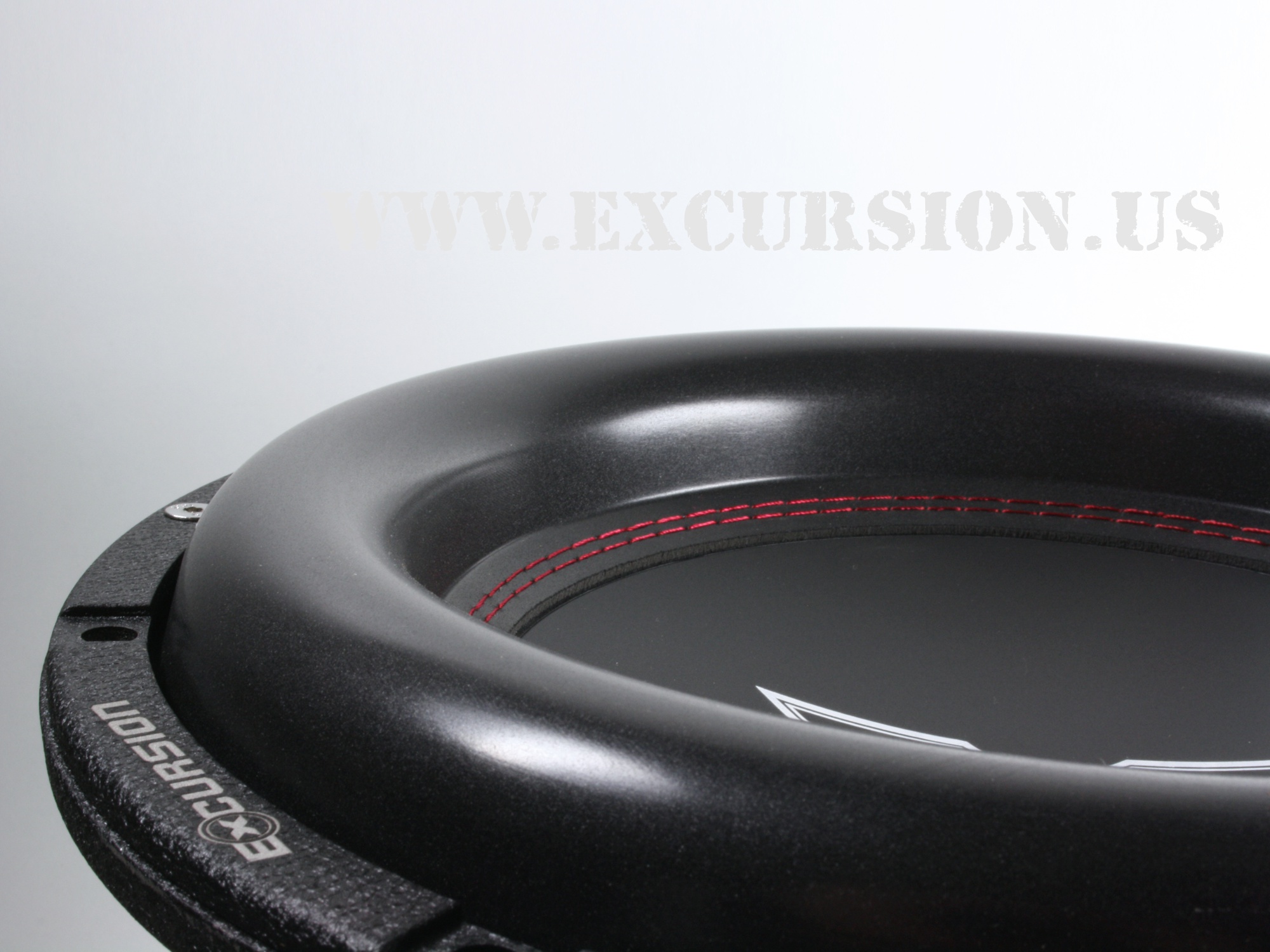

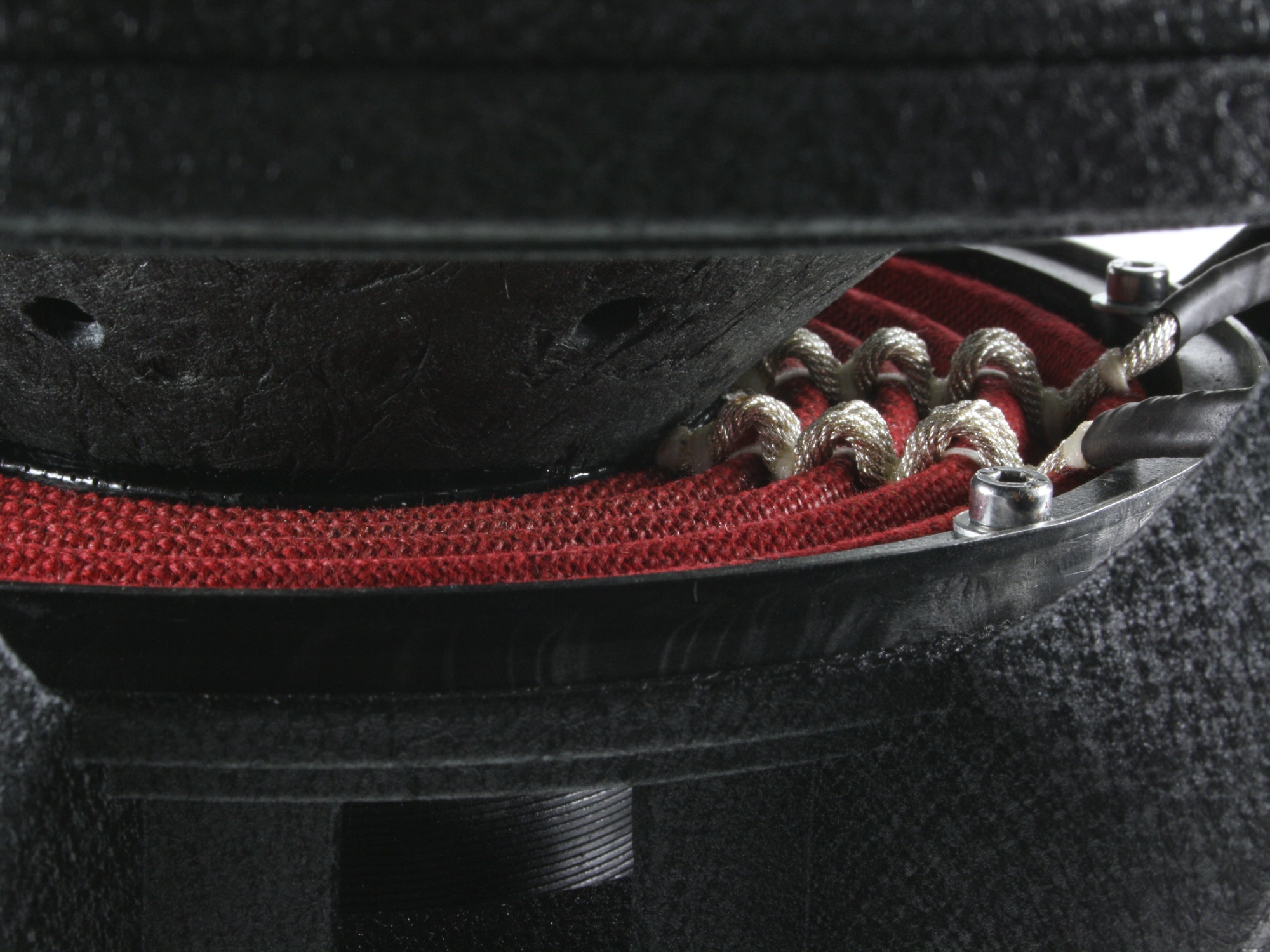

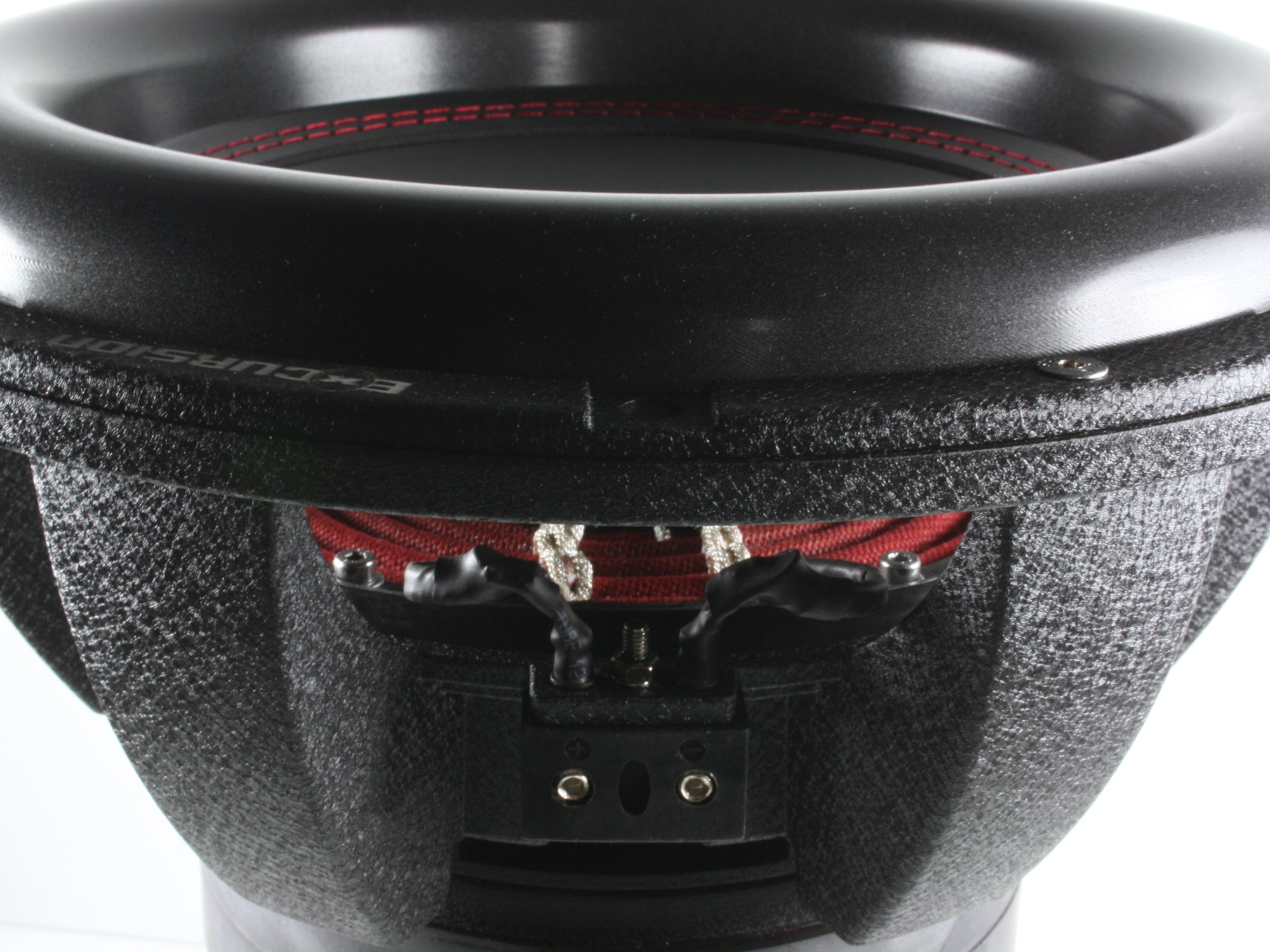

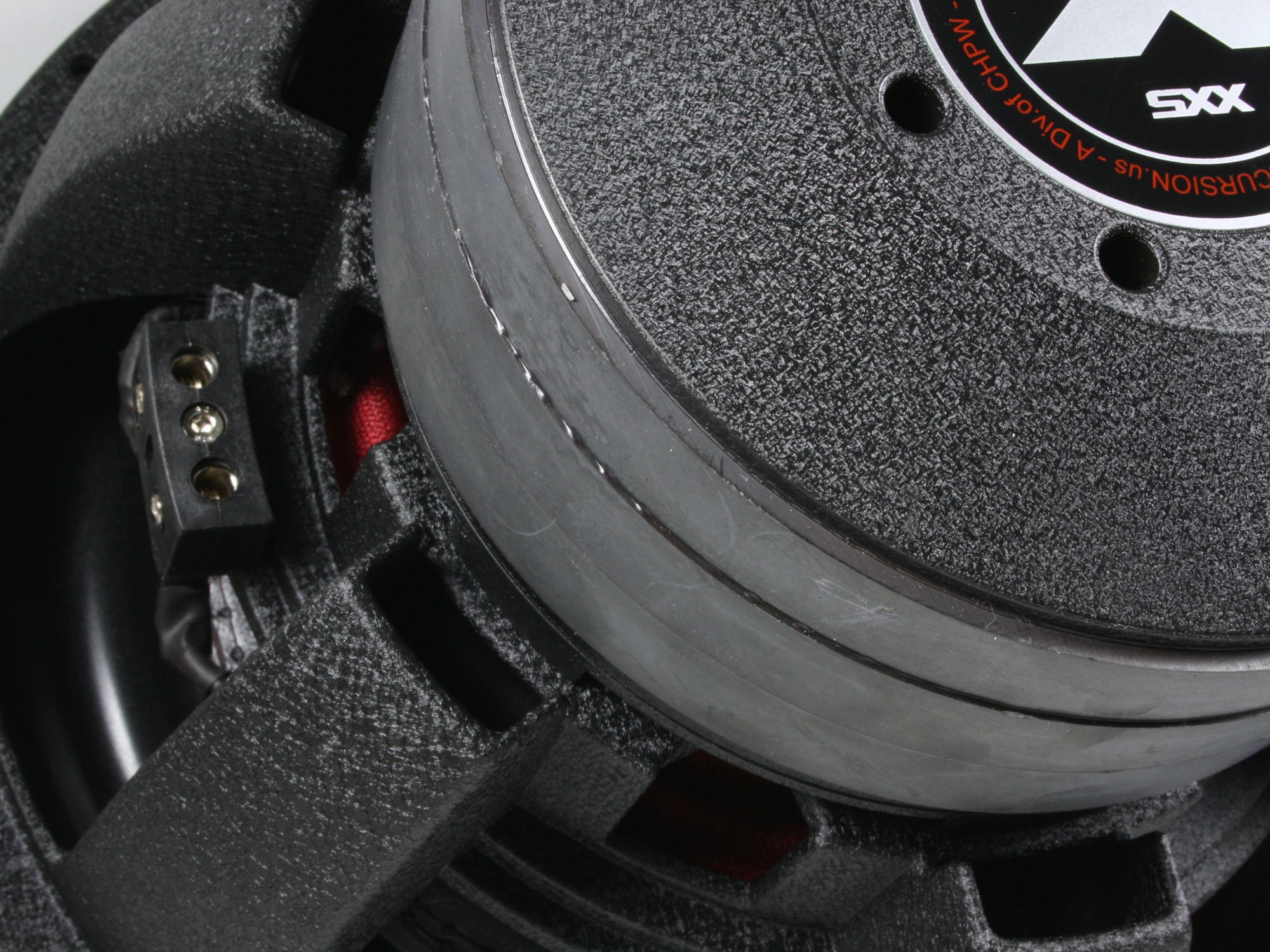

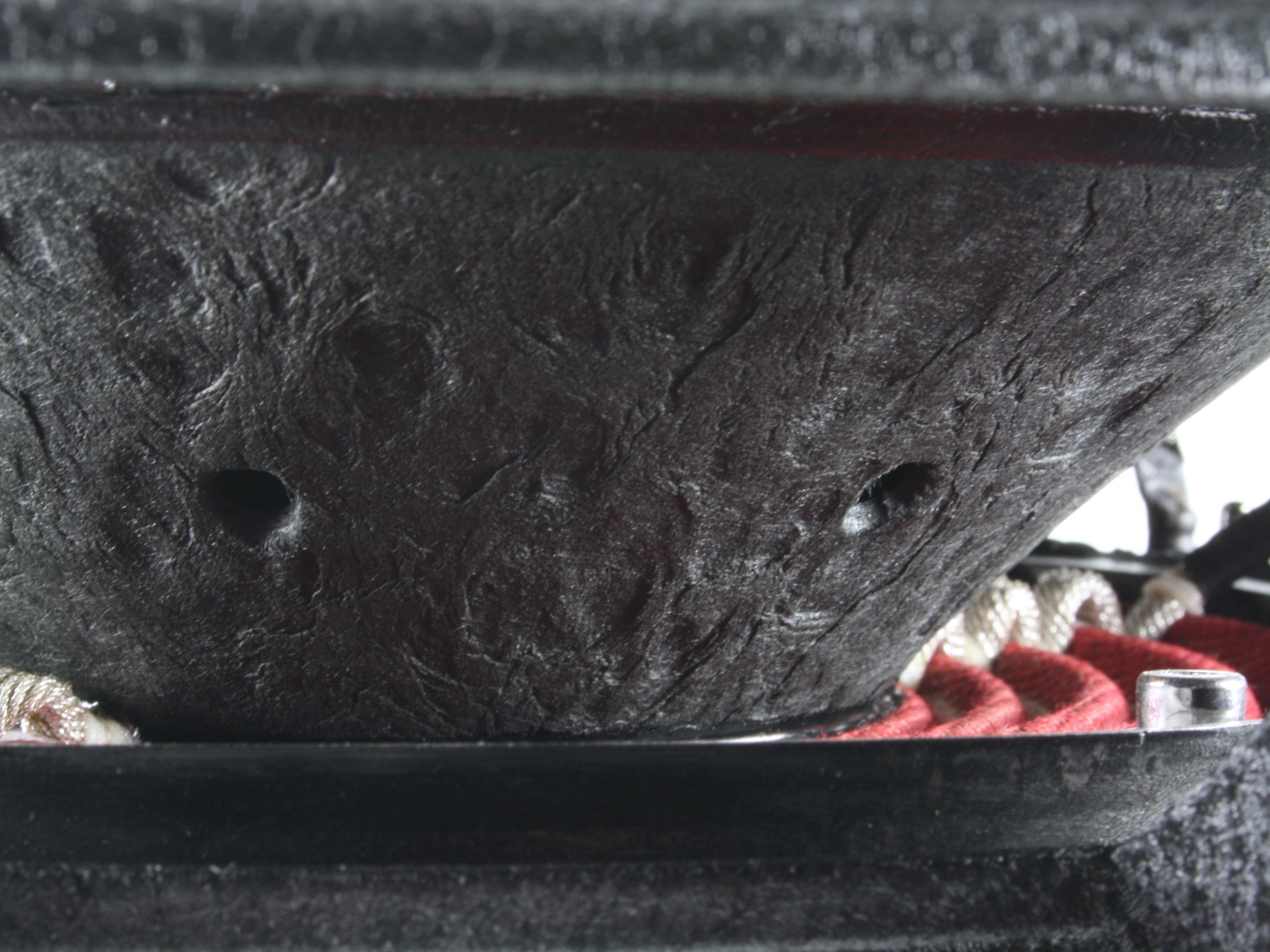

15" / 38cm - 2x2Ohm - 3"CCAR 4layer Alu Flat 1500 RMS / 4500 W - 600oz Y35 Tripple Stack MD=230mm ID=355mm OD=394mm W=20,0kg Dual Composite red linear Spider - 8GA Terminal Red stiched HDR Surrounds - 12GA Dual Tinseal VC Roll Range Height 60 mm XMAX linear 21.5 mm BL @ Series 22.42 Suspension Compliance Cms 0.052 Mechanical Q Factor Qms 4.91 Electrical Q Factor Qes 0,93 Total Q Factor Qts 0.78 Moving Mass Mms 397.3 g Eq.Cas Air Load( liters) VAS Liter 34.0 Resonant Frequency Fs Hz 34 Effective Piston Area SD 779.3
