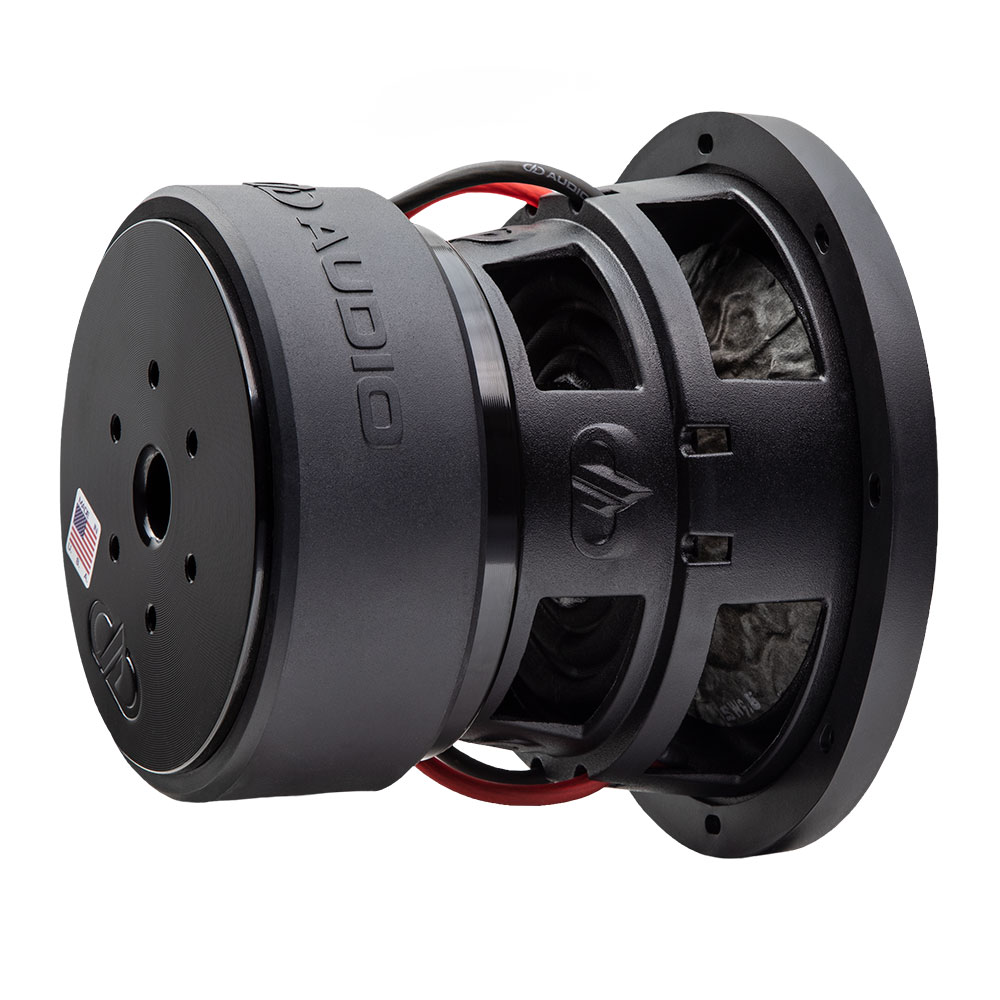

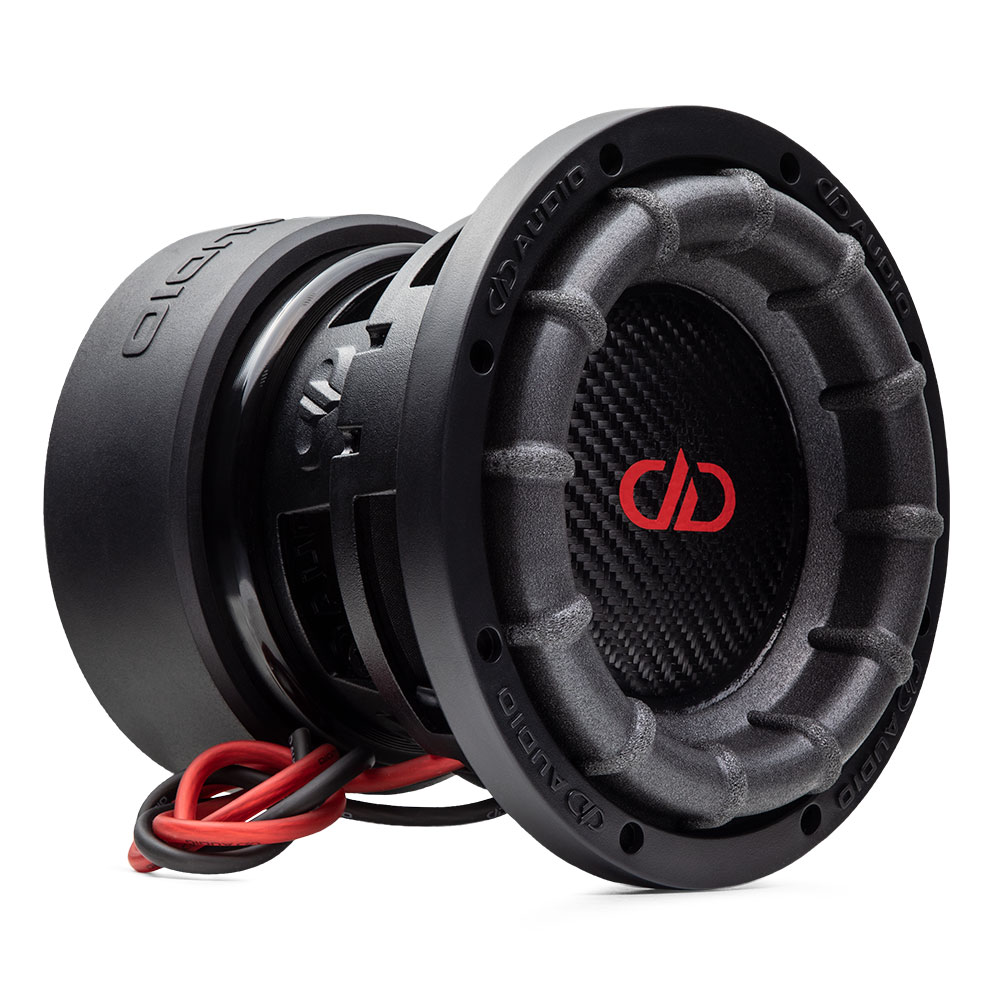

DD Audio 1506 D4 ESP

Carbon Fiber Blend Cone (CFB) – The CFB composition employs a potent carbon fiber based cocktail to give you the highest strength to weight ratio of any pulp cone in the industry. Vario-density Extended Range Of Motion Surround (V-ROM) – Provides the ultimate in linear control at high excursion while still allowing for dynamic sounding bass reproduction. The control ribs are compressed to a lesser density than the main surround body to allow for a continuously variable control system. The harder you drive it the more control you get. Tuned Spider System (TSS) – Each suspension is tuned for specific performance traits, e.g. High Definition, Power Handling, X-Stiff Control. Super Frame (SFrame) – Maximizes spider diameter, cone diameter, suspension excursion, works as a secondary shorting ring and provides additional heat sinking for better heat flow from the coil. Specifikation Speaker Size (In): 6.5 Watts RMS: 600 Watts Peak: 2400 Impedance: D4 VCD (In): 2 Piston Diameter (In): 5.5 Fs (Hz): 47.78 Qms: 5.152 Qes: 0.864 Qts: 0.740 Vas (Liters): 2.398 Xmech (MM): 48 Xmax (MM): 10 Frame OD (In): 7 7/16 Frame OD w/Gasket (In): 7 9/16 Mounting Diameter (In): 6 5/16 Mounting Depth (In): 6 Motor Diameter (In): 6 Motor Depth (In): 2 13/16 Woofer Displacement (CuFt): 0.05 Ported Enclosure (CuFt): 0.25 - 0.75
