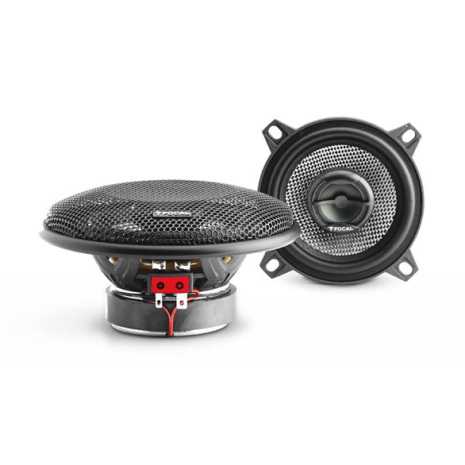

100 AC

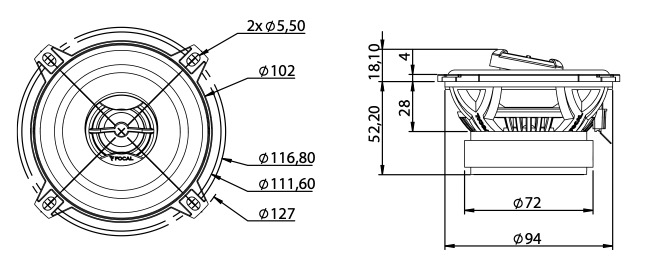

100 AC WOOFER (4") SPECIFICATIONS
Nominal power: 40W
Maximum power: 80W
Sensitivity (2,83V/1m): 87,2dB
Cone: Glass fiber
Surround: Butyl
Nom. impedance: 4 ohms
DC resistance: 3.4 ohms
VC diameter: 25mm
VC height: 10mm
Former: Kapton
Layers: 2
Wire: Copper
Xmax: ± 2.5mm
Magnet d x h: 72mm x 15mm
Magnet weight: 160g
Flux density: 0,9T
Gap height: 6mm
Net weight: 600g

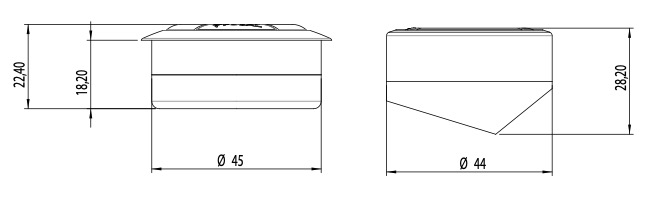

Tweeter TN43 SPECIFICATIONS
Nominal power: 15W
Maximum power: 100W
Sensitivity (2,83V/1m): 94dB
Cone: Aluminium
Nom. impedance: 4 ohms
DC resistance: 3.7 ohms
VC diameter: 20mm
Former: Kapton
Layers: 2
Wire: copper
Flux density: 1.35t
Gap height: 2.5mm
Net weight: 60g
