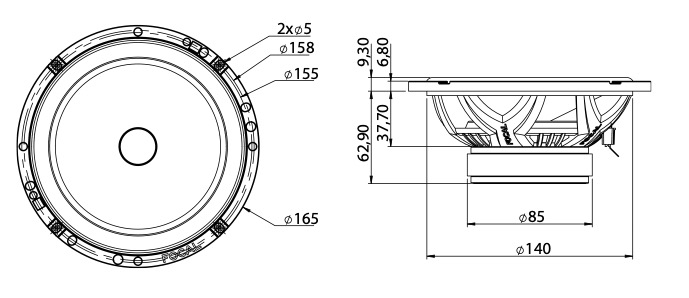

165 AS WOOFER (61/2") SPECIFICATIONS
Nominal power: 60W
Maximum power: 120W
Sensitivity (2,83V/1m): 91dB
Cone: Glass fiber
Surround: Butyl
Nom. impedance: 4 ohms
DC resistance: 3.5 ohms
VC diameter: 25mm
VC height: 10mm
Former: Kapton
Layers: 2
Wire: Copper
Xmax: 2,5mm
Magnet d x h: 85mm x 15mm
Magnet weight: 380g
Flux density: 1T
Gap height: 5mm
Net weight: 850g

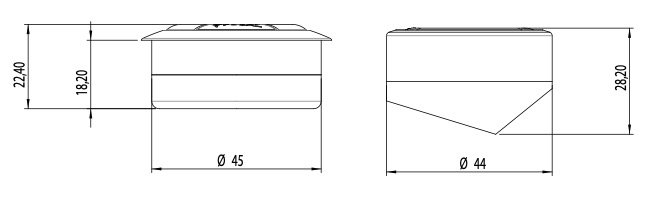

Tweeter TN43 SPECIFICATIONS
Nominal power: 15W
Maximum power: 100W
Sensitivity (2,83V/1m): 94dB
Cone: Aluminium
Nom. impedance: 4 ohms
DC resistance: 3.7 ohms
VC diameter: 20mm
Former: Kapton
Layers: 2
Wire: copper
Flux density: 1.35t
Gap height: 2.5mm
Net weight: 60g
