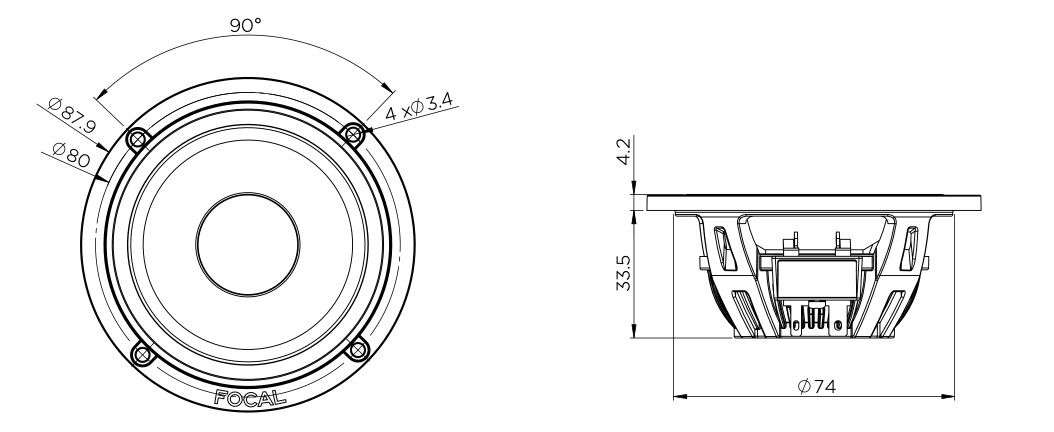

3" Midrange SPECIFICATIONS
Nominal power: 30W
Maximum power: 160W
Sensitivity: 87.5dB
Nom. impedance: 4Ω
Cone: Flax
Surround: TMD - Rubber
DC resistance: 3.3Ω
VC diameter: 25mm 1"
Former: Kapton
Layers: 2
Wire: Copper
Net weight: 160g
Frequency response: 60-28kHz
Crossover: 18dB/Oct @600-4,000 Hz

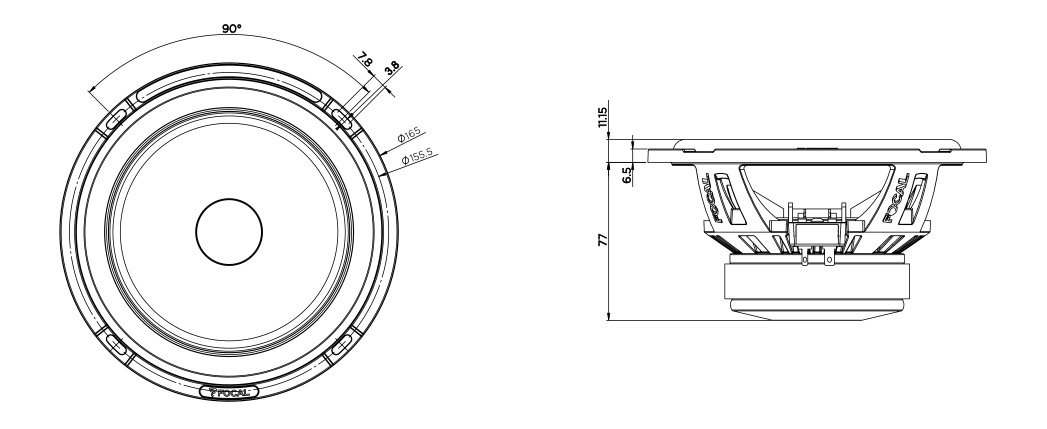

61/2" Woofer SPECIFICATIONS
Nominal power: 80W
Maximum power: 160W
Sensitivity: 90.5dB
Nom. impedance: 4Ω
Cone: Flax
Surround: TMD - Rubber
DC resistance: 3.2Ω
VC diameter: 32mm
Former: Kapton
Layers: 2
Wire: Copper
Net weight: 1,150g
Frequency response: 60-28kHz
Crossover: 18dB/Oct @600-4,000 Hz

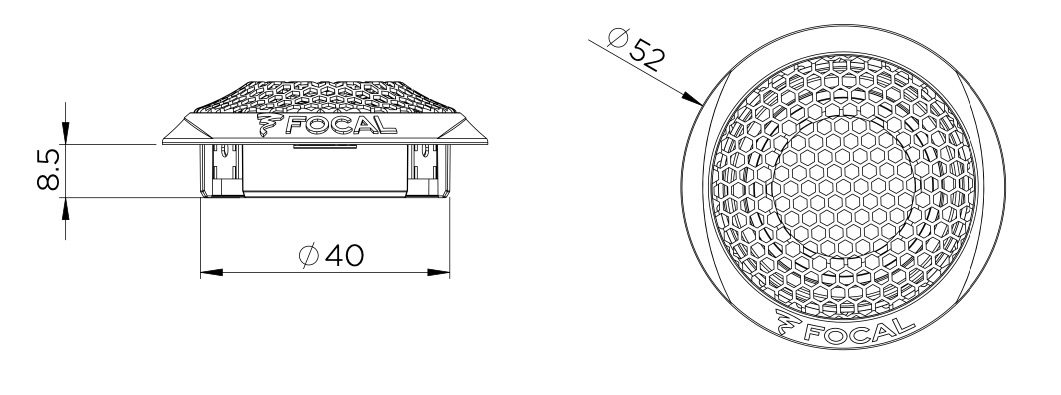

Tweeter SPECIFICATIONS
Nominal power: 20W
Maximum power: 150W
Sensitivity: 92dB
Nom. impedance: 4Ω
Cone: Al - Mg
Surround: TMD - Rubber
DC resistance: 3.4Ω
VC diameter: 23mm
Former: Kapton
Layers: 2
Wire: Alu
Net weight: 60g
