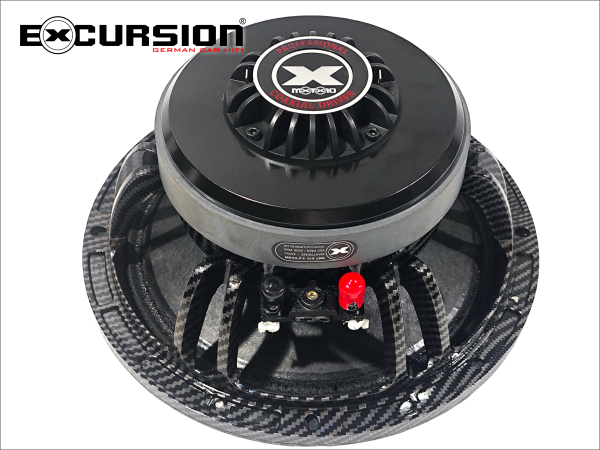

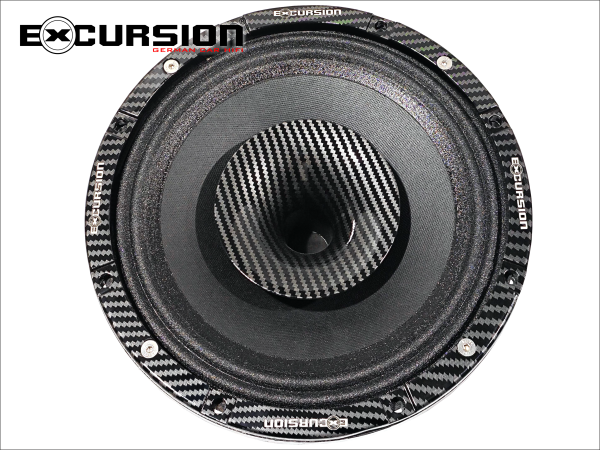

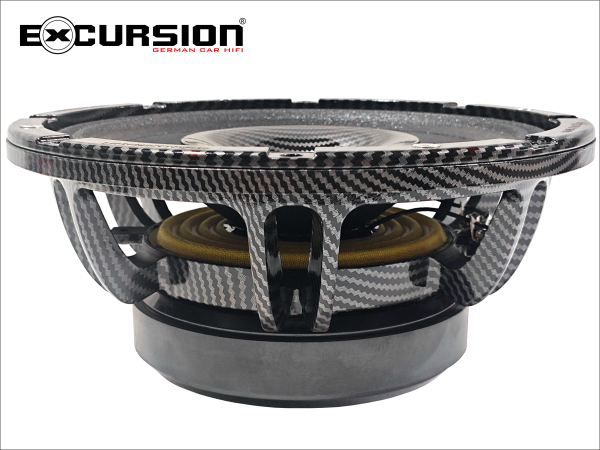

Excursion MXT.v3 X10 COMP

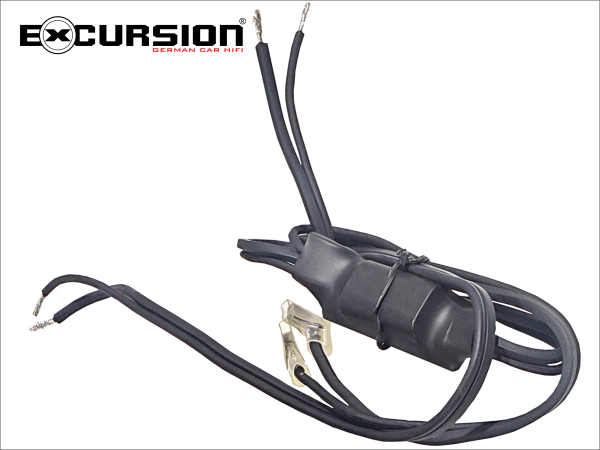

10" / 25cm MAXTreme HE 2 Way Coaxial (1pc,) * 600 RMS / 2000 W Peak Handling * 60 Hz - 20 KHz Frequency Range * 4 Ohm / 105 dB (1W/1M) * 1.75"/44.4mm NALR @ Kapton Former for Compression HORN * 2.5"/65.5mm CCAW @ vented Kapton Former for Mid Driver * Polycotton Surround w. Water Proof Treated paper Cone * fully open Die-Cast Aluminium Basket * Die-Cast Aluminium Gasket with Laser Logos * HPF Cable X-Over * CARBON COMP Design according MXT.v3 and RXD.v2 COMP MD=124mm ID=235mm OD=262mm Weight=5,6kg sold per Piece RE - DC Resistance - 3.2 Ohm FS - Resonance Frequency - 70 Hz Mms - Moving mass - 34.9 Gramm Cms - Compliance - 0.14 mm/N BxL - Force Factor - 10.5 N/A QMS - Mechanical Q-Factor - 2.95 QES - Electrical Q-Factor - 0.45 QTS - Total Q-Factor - 0.39 Vas - Equivalent air volume - 24.4 L Le - Voice Coil Inductance - 0.39 mH Sd - Diaphragm Area - 346.3 cm²
