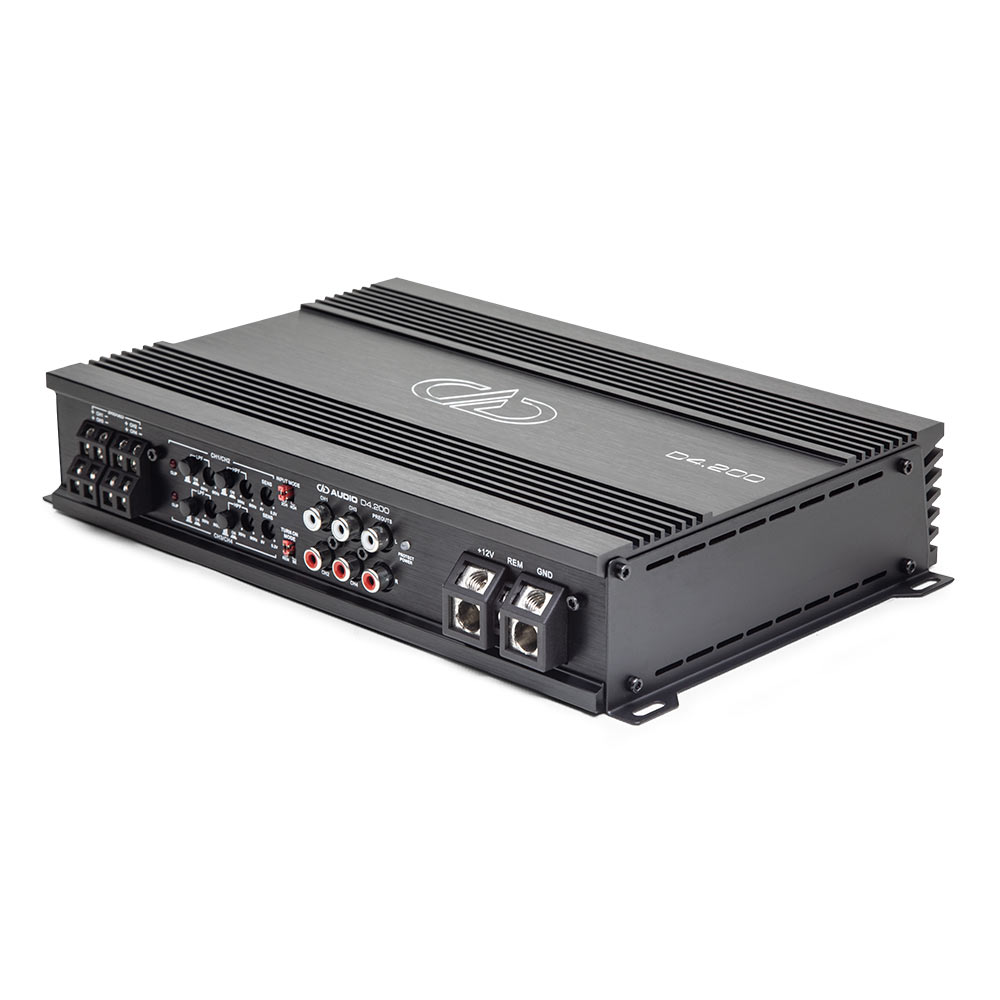

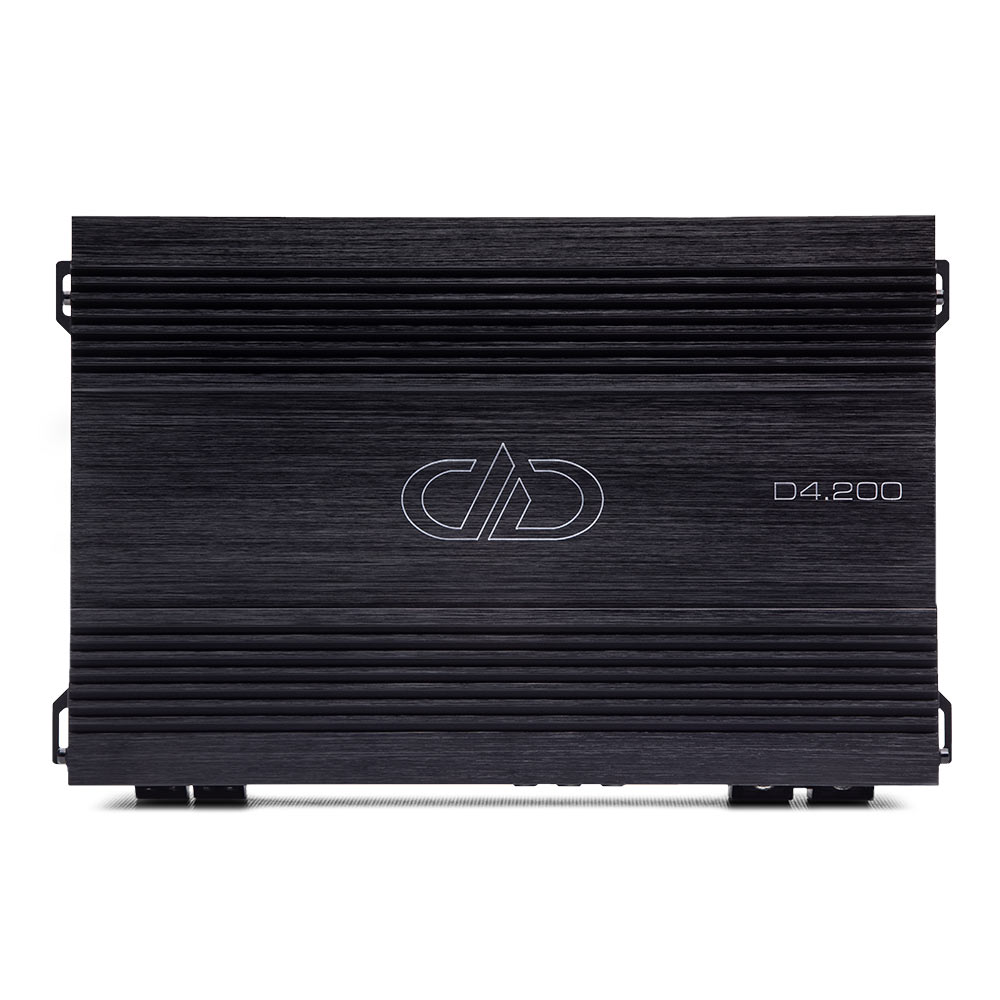

DD Audio D4.200

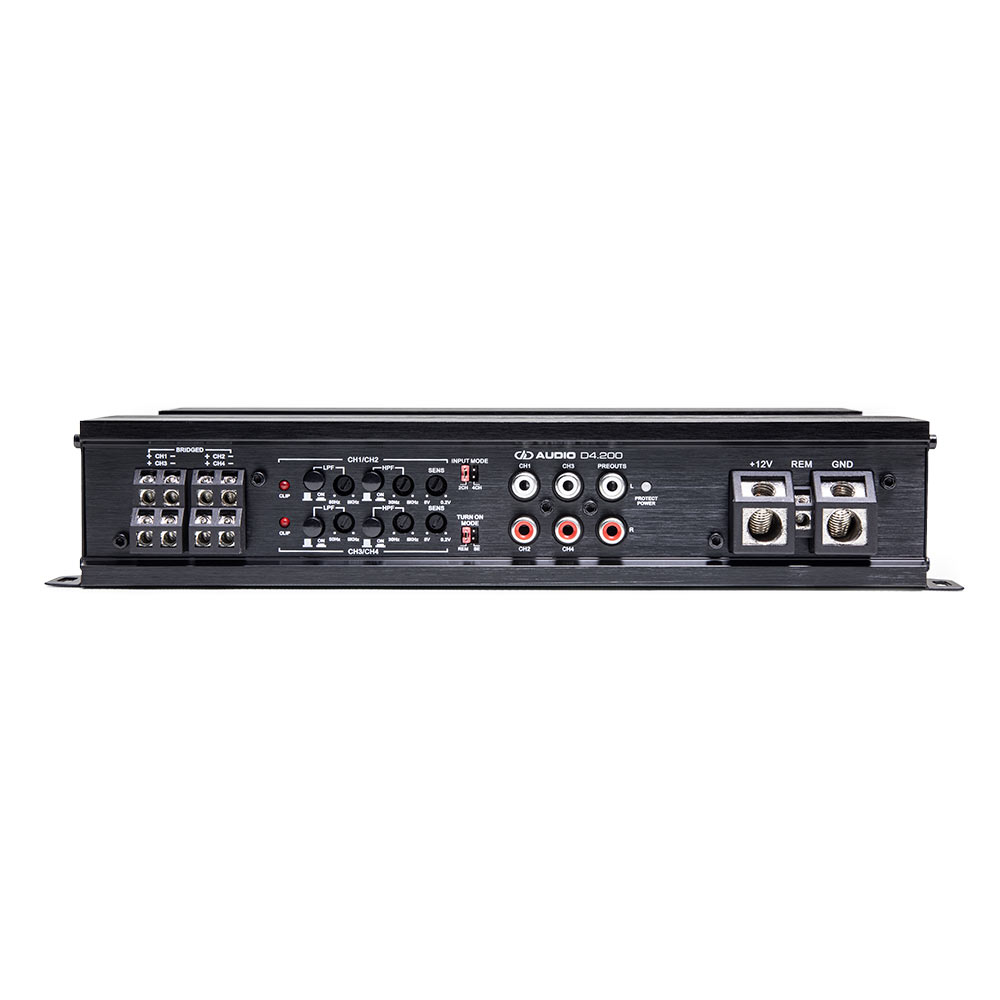

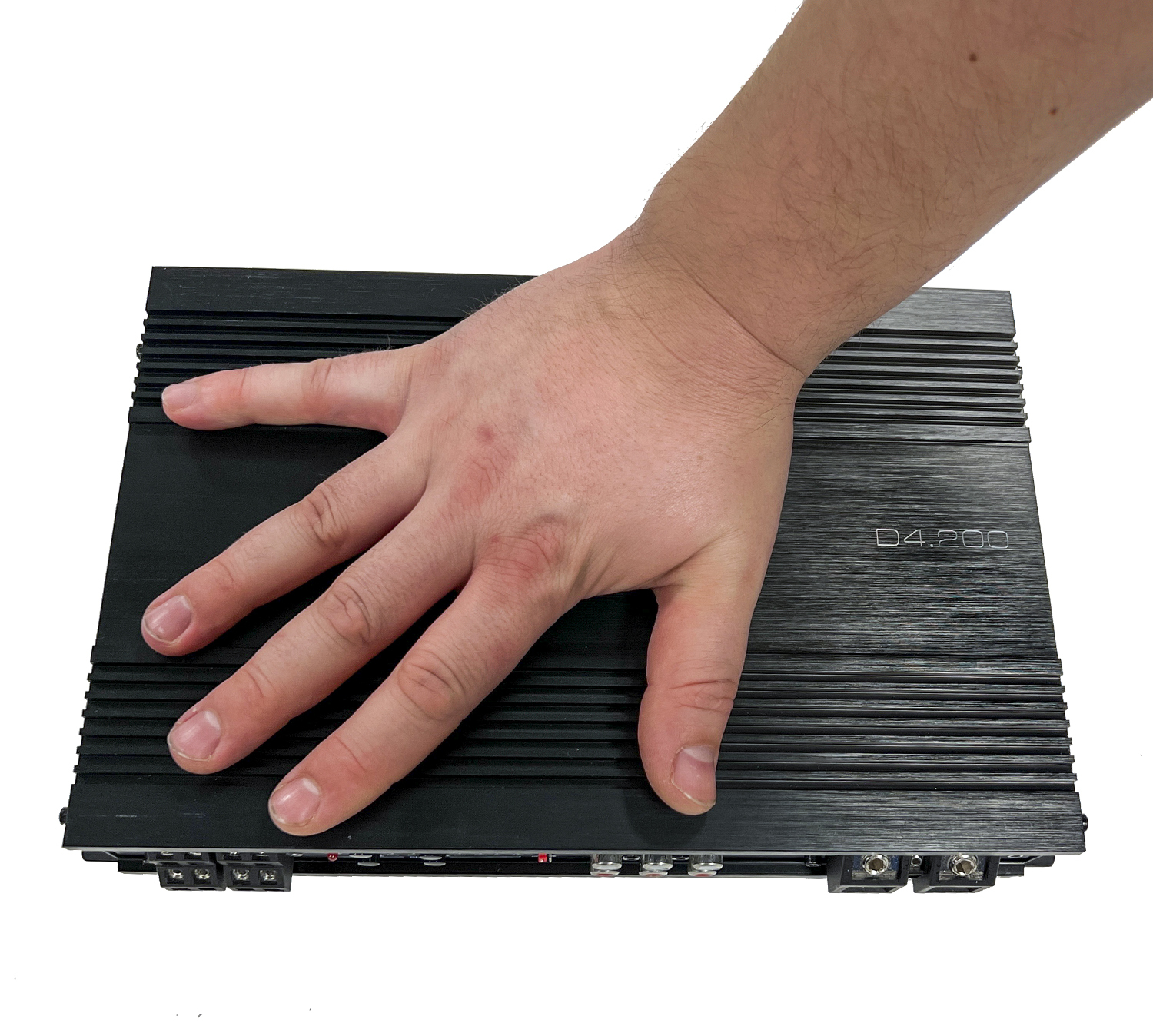

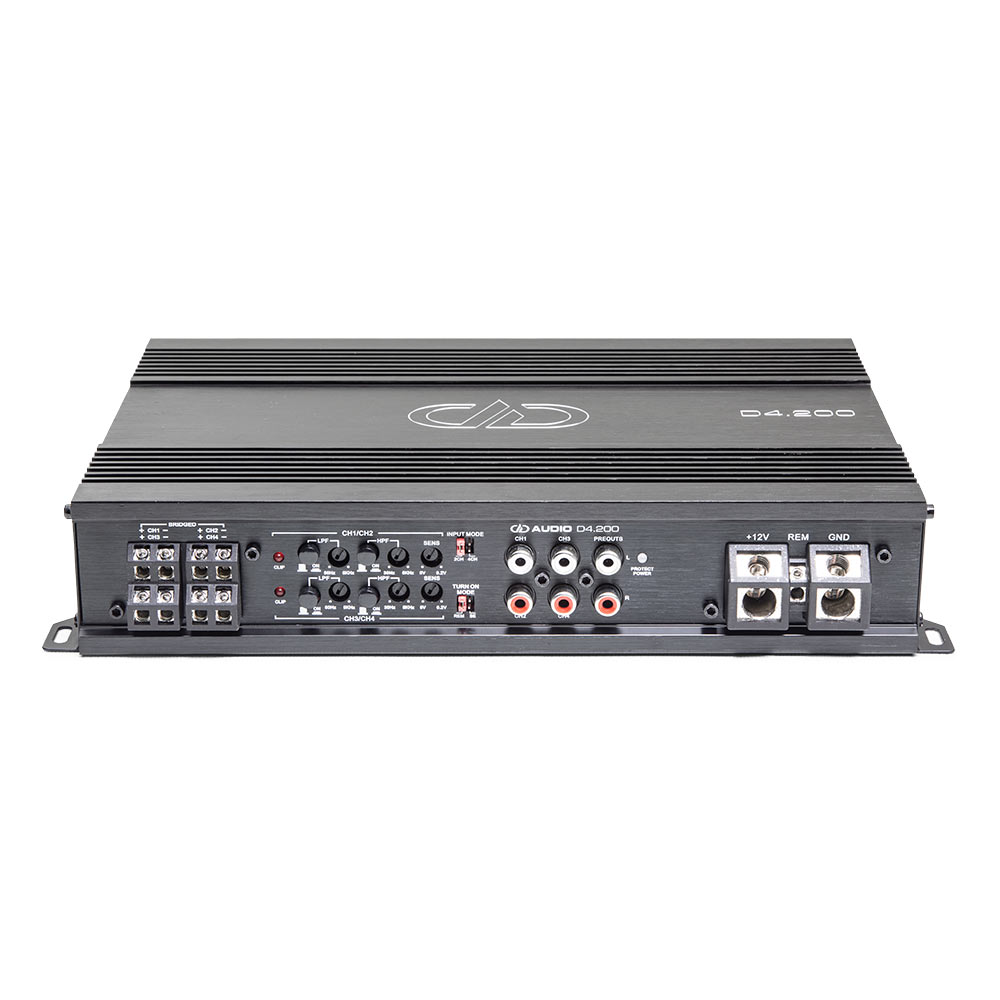

D Series amplifiers are compact amplifiers with full size features. The D4.200 is a bridgeable four channel amplifier with a total output of 2200 watts. It is 1ohm stereo stable making it perfect for multi driver arrays. Precision tuning is made easy with variable bandpass crossovers and LED clipping indicators. Installation is made easier with single side controls and connections, input mode switches, and auto turn-on options. For boat, bike, and ATV applications conformal coated internal circuitry and corrosion proof switches offer increased moisture resistance. Even though the D Series amplifiers are very compact they still employ set screw power and speaker terminals, discrete output sections, and heavy duty anodized aluminum heatsinks. This ensures power management is proper from input to output, increasing both in-use stability and long term durability. Operating Voltage: 9 - 16 Test Voltage: 14.4 Output Channel(s): 4 Continuous Wattage @4ohm: 200 x 4 / 700 x 2 Continuous Wattage @2ohm: 370 x 4 / 1040 x 2 Continuous Wattage @1ohm: 550 x 4 Max Current Draw (Amps): 220 RCA Input Voltage Sensitivity: 8 ~ 0.2 RCA Input S/N: 85dB Damping Factor: 100 THD: 0.2% Frequency Response (Hz): 20 - 25k Sub-Sonic Filter: 30 - 5k Low-Pass Filter: 50 - 5k ( 12 dB/oct ) ZVL Input: No Pass Thru Output: Yes Power Wire Gauge: 2 Speaker Wire Gauge: 12 Dimensions (MM): 268 x 177 x 54
