Phoenix Gold ZXM500.4

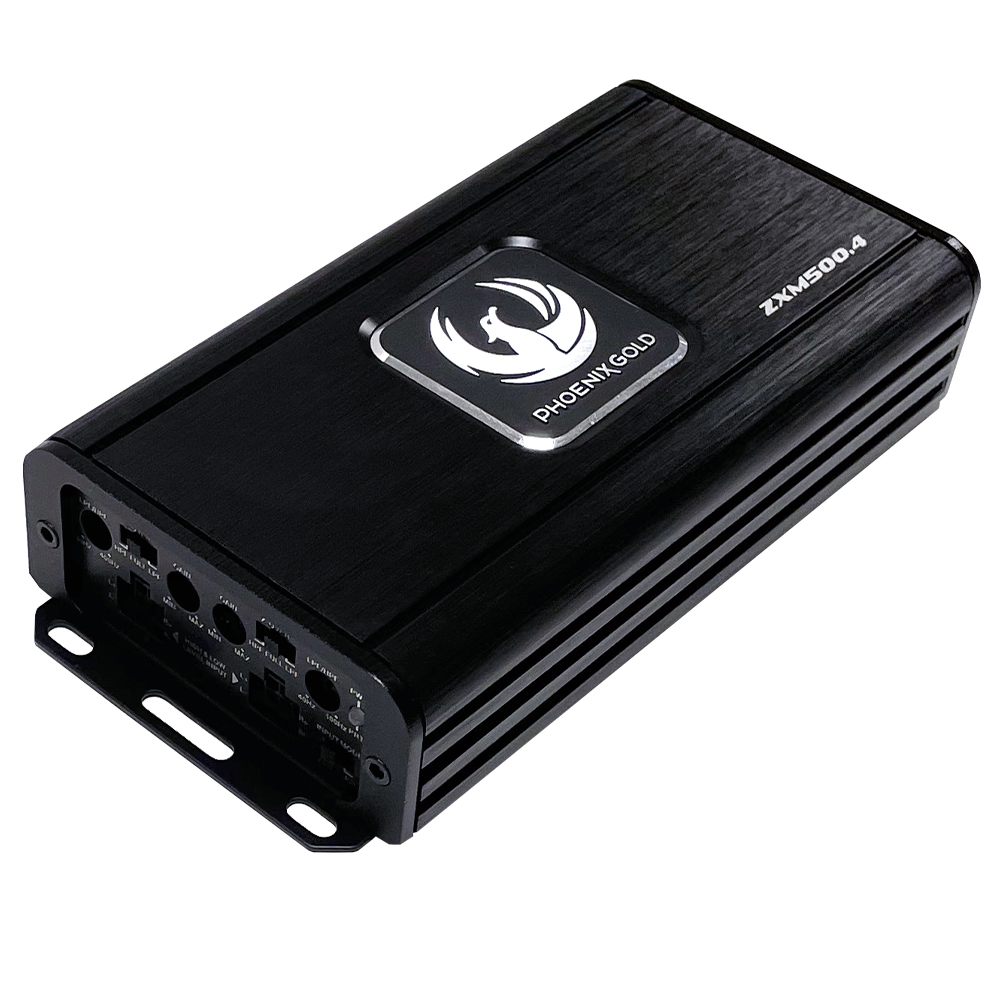

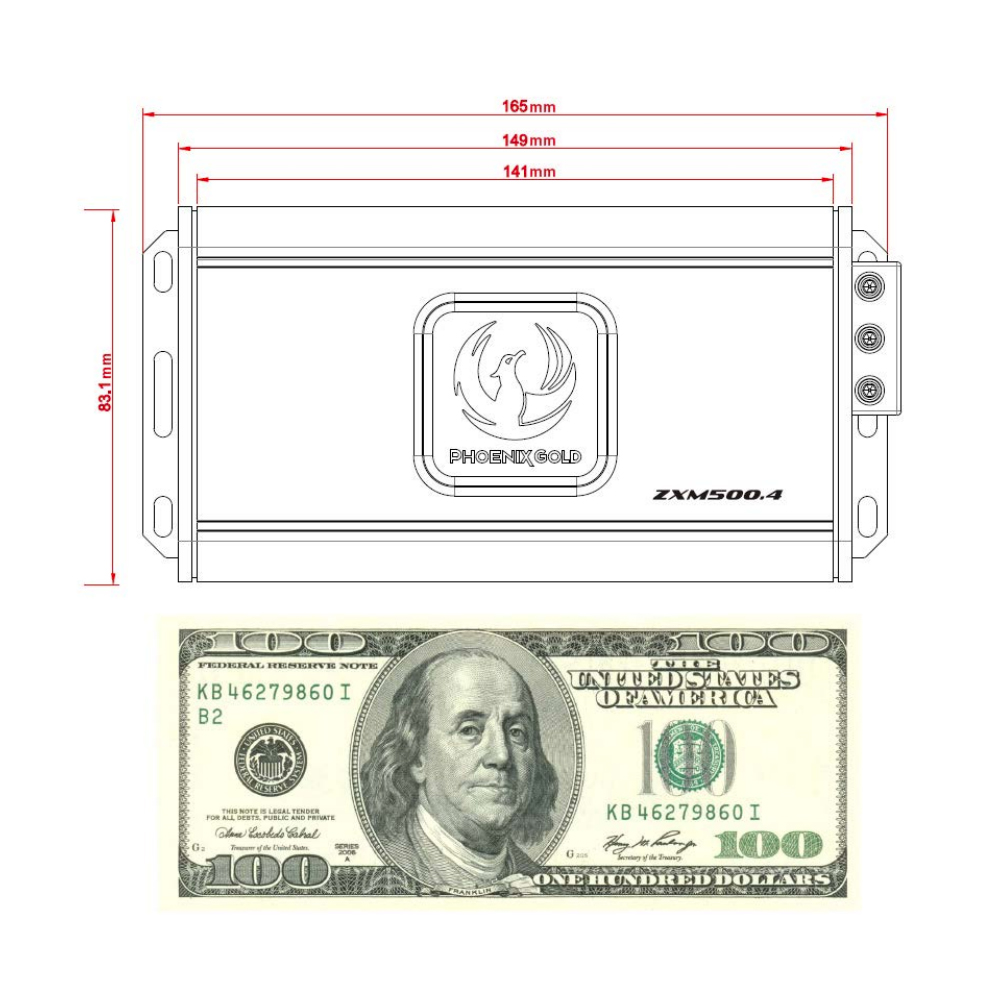

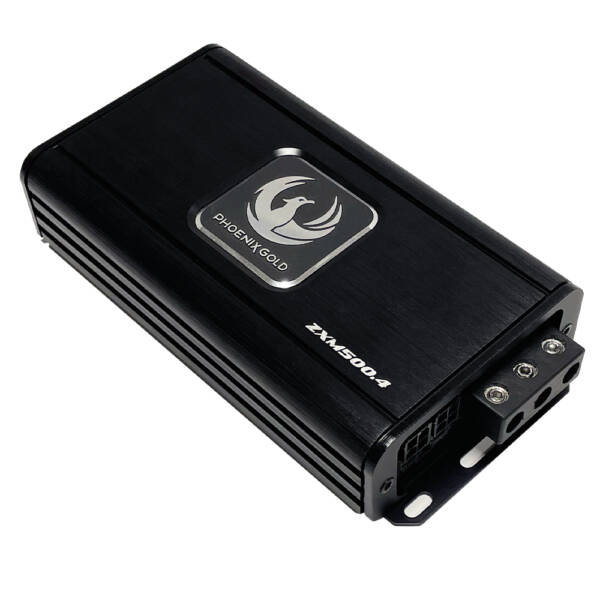

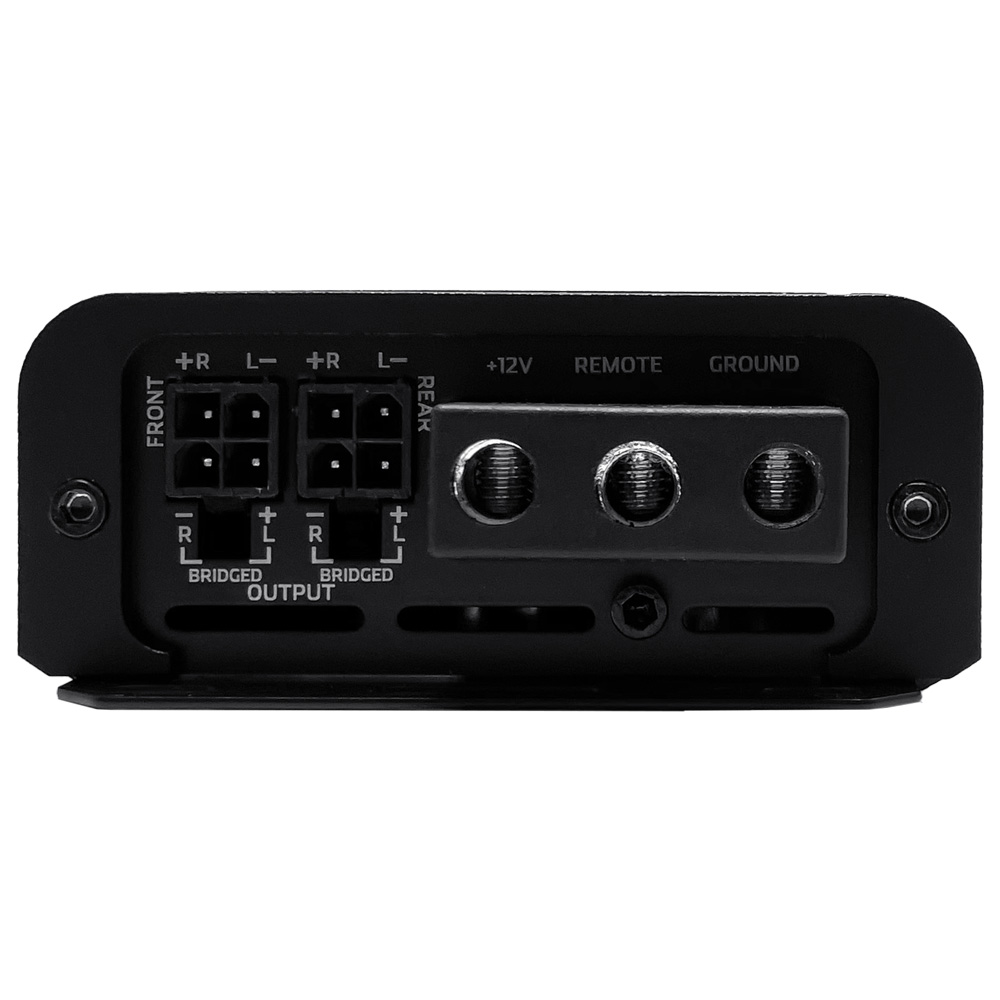

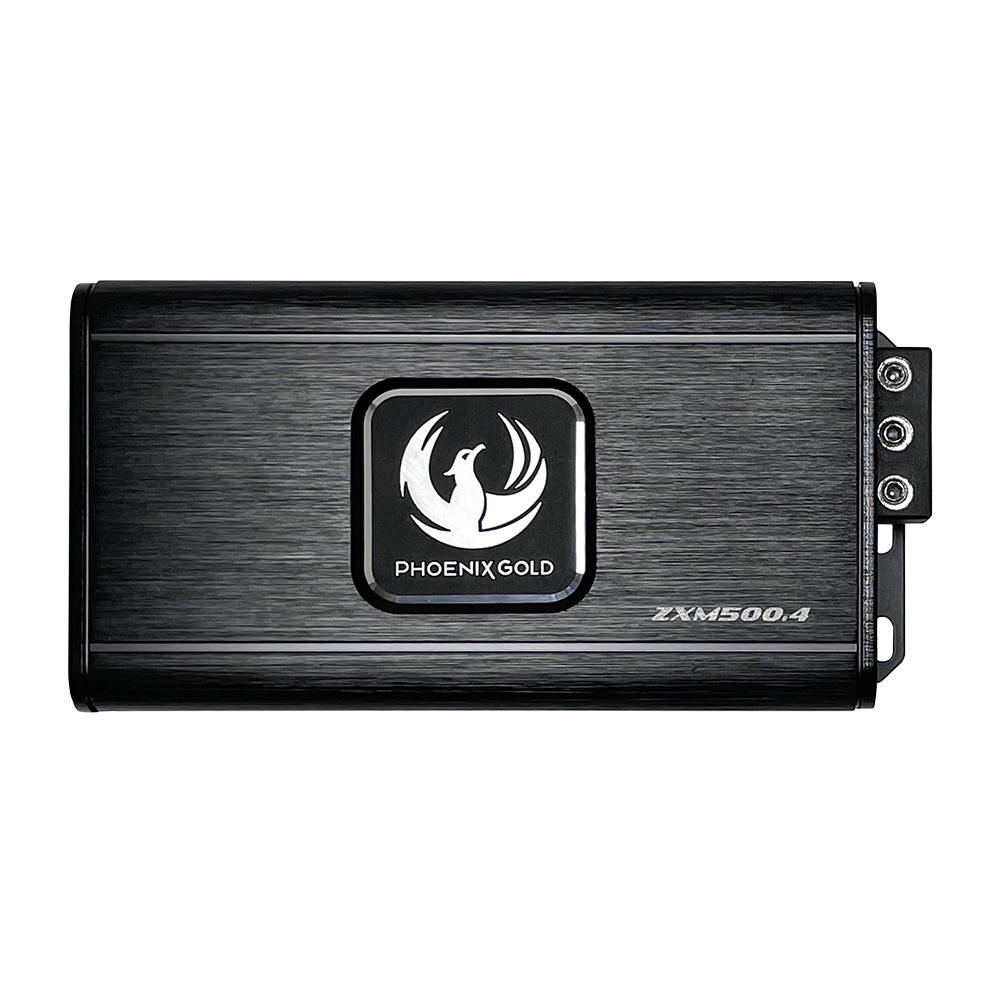

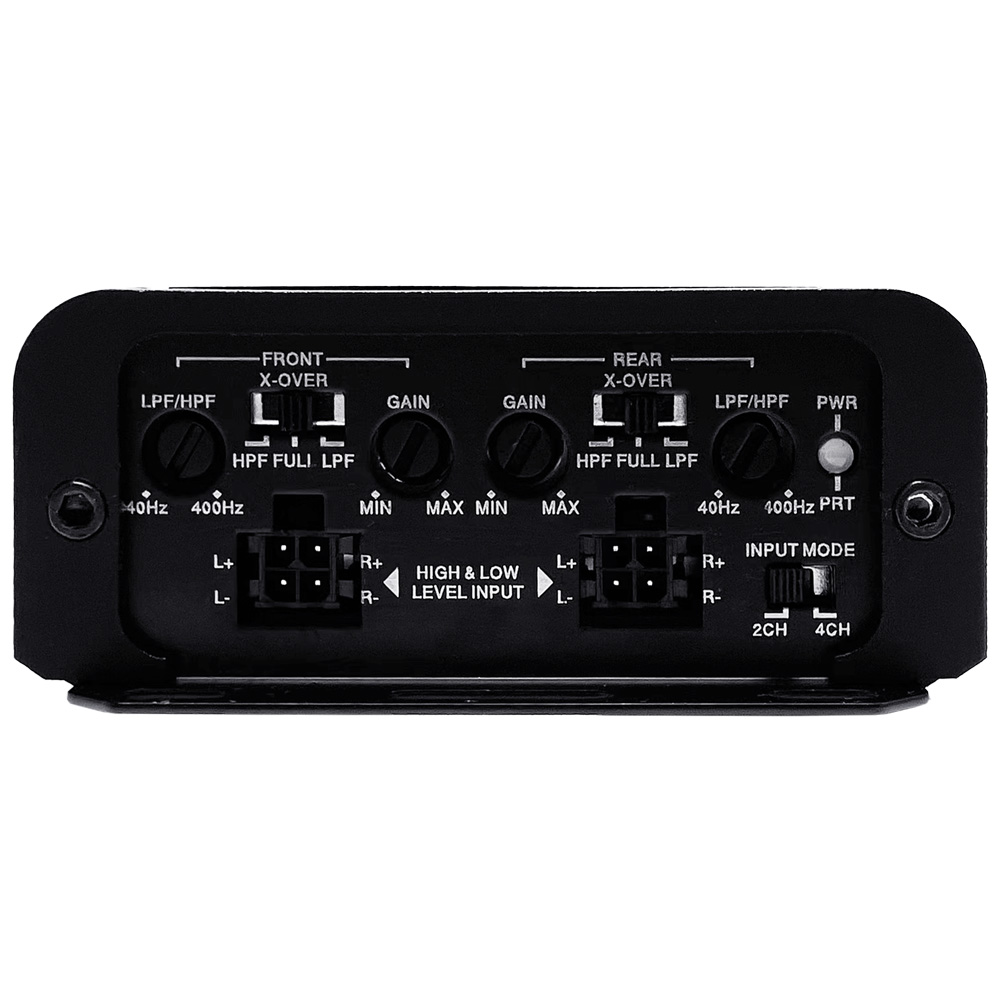

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level. A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal. Specifikation Class-D 4-Channel Mini Amplifier Power (MAX) 1000W Power Ratings (RMS) 125W x 4 @ 2Ohm 80W x 4 @ 4Ohm 250W x 2 @ 4Ohm bridged Frequency Response: 20Hz – 20kHz Signal to Noise Ratio: > 90dB Total Harmonic Distortion: < 0.3% Low Pass Filter: 40Hz – 400Hz (12dB/Oct) High Pass Filter: 40Hz – 400Hz (12dB/Oct) High-Level Input Auto Turn-On Dimensions (LxWxH) 165 x 83.1 x 34.8mm
