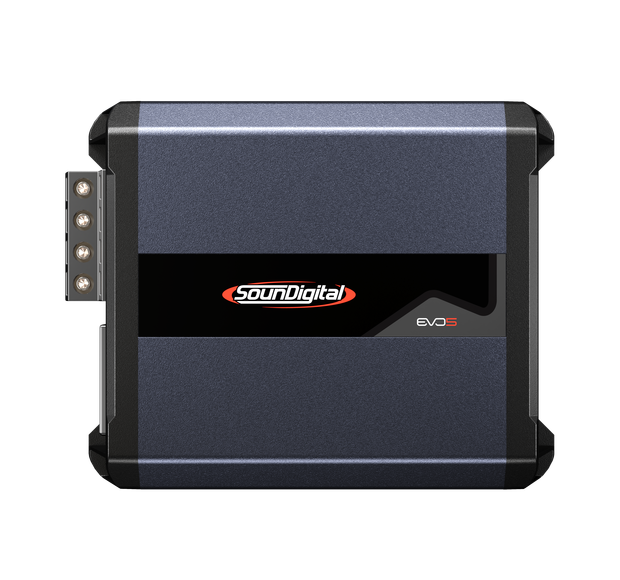

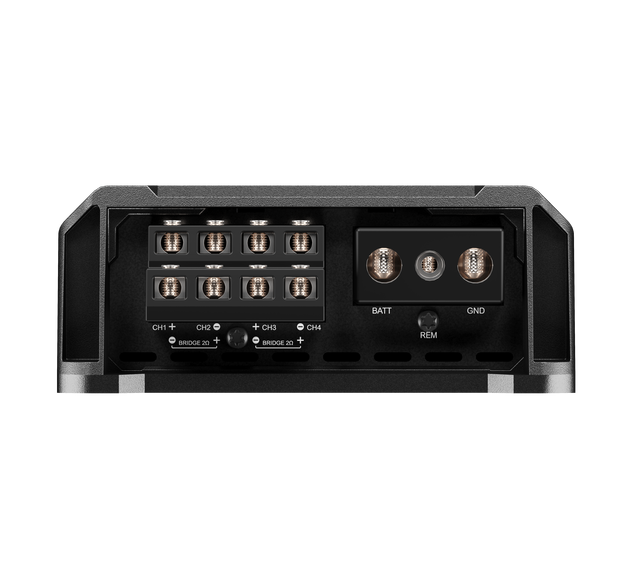

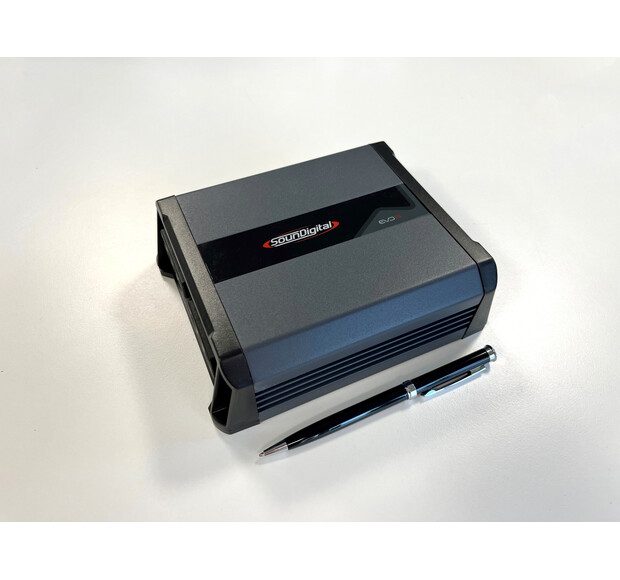

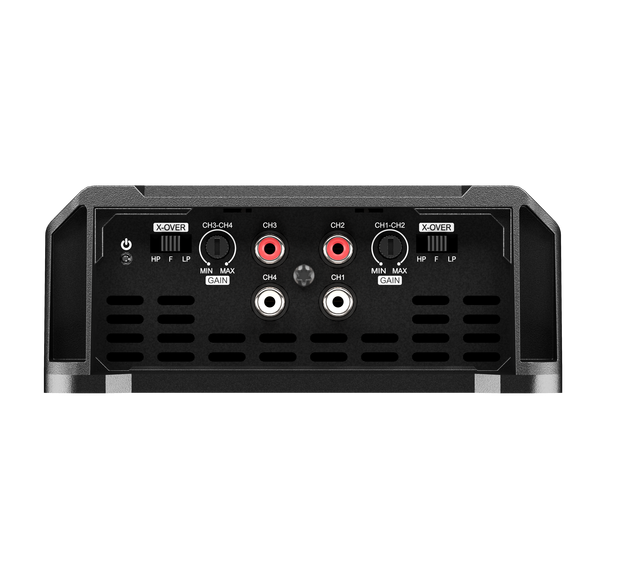

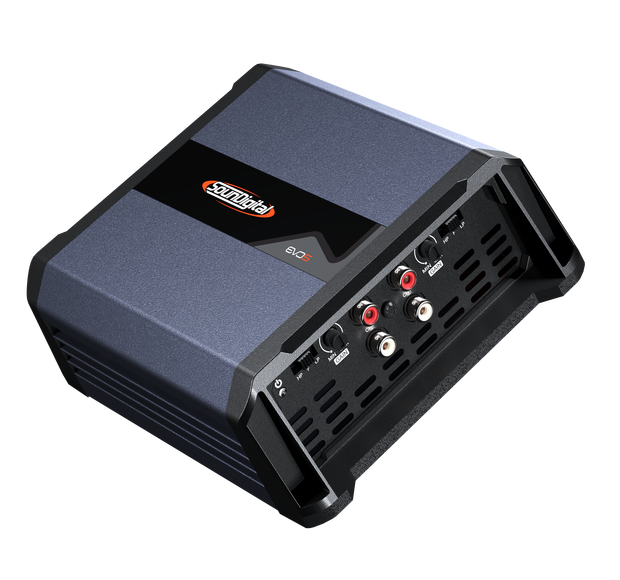

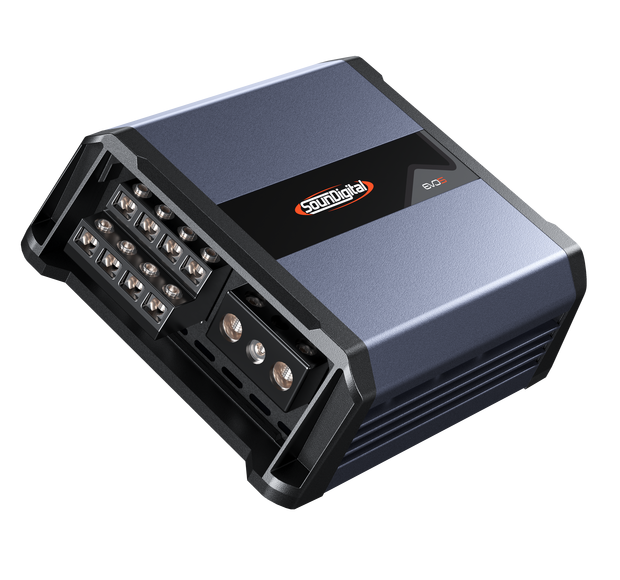

SounDigital 1200.4 EVO 5 - 4 Ohm

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Specifikation Power @ 1Ω: N/A Power @ 2Ω: 4 X 300 WRMS Power @ 4Ω: 4 X 198 WRMS Bridge Power @ 2Ω: N/A Bridge Power @ 4Ω: 2 X 600W RMS Frequency Response (-3dB): 5Hz ~ 22kHz Low Pass Filter (12dB/oct): 80Hz High Pass Filter (12dB/oct): 80Hz Operating Voltage: 10V ~ 16V SNR: 87dB Input Sensitivity (RCA): 0.2V ~ 2V Current Draw (music): 59A Current Draw (max.): 118A Total Efficiency: 81% Damping Factor: 200 Power Cable: 16mm² (5 AWG) Speaker Cable: 2 x 2mm² (14 AWG) Recommended Fuse (music): 60A Recommended Battery (minimum): 60Ah Width: 6.7″ / 12.1 cm Length: 5.4″ / 17 cm Height: 2.2″ / 5.48 cm Weight: 2.36 lb / 1,07 kg
