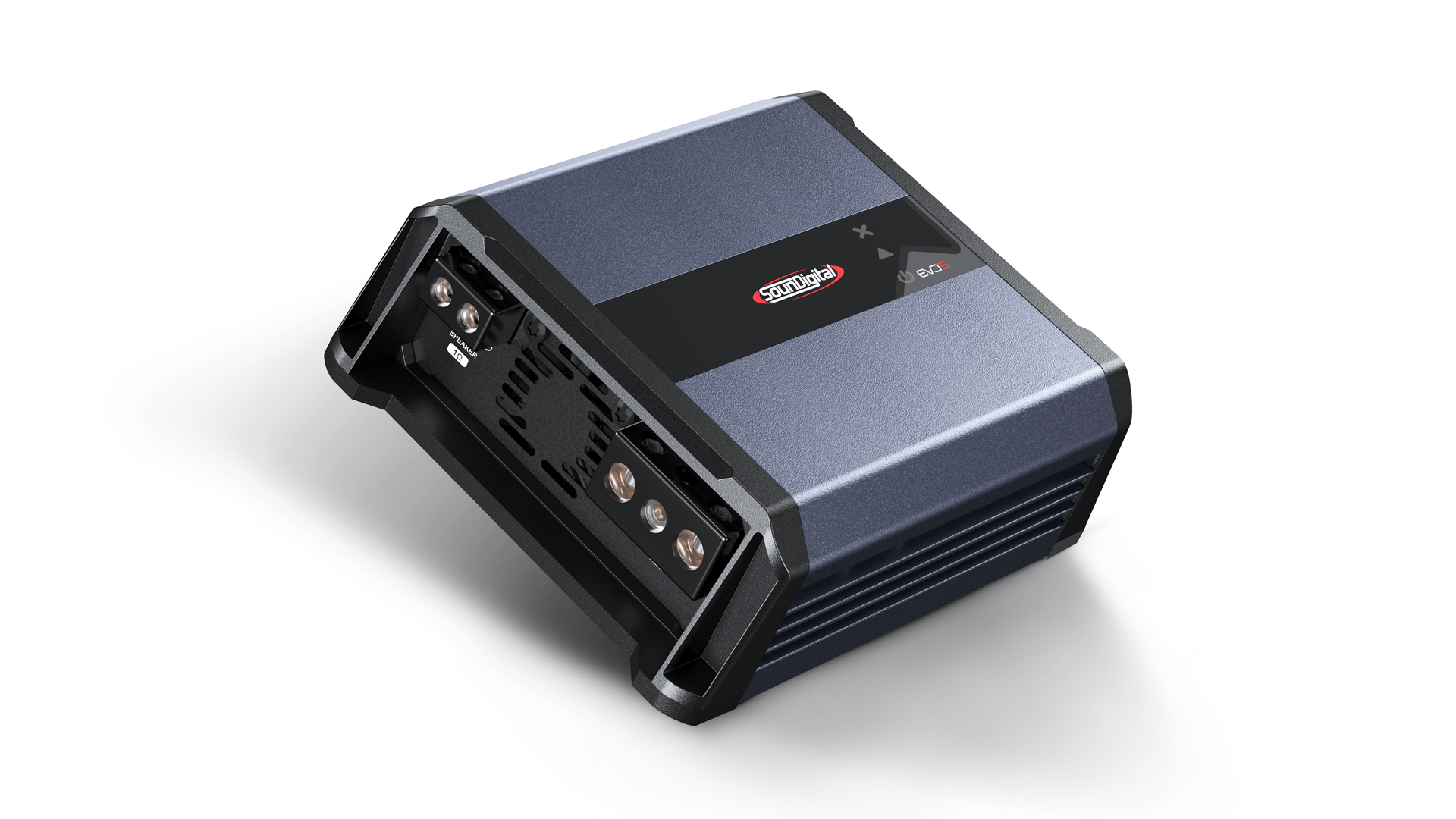

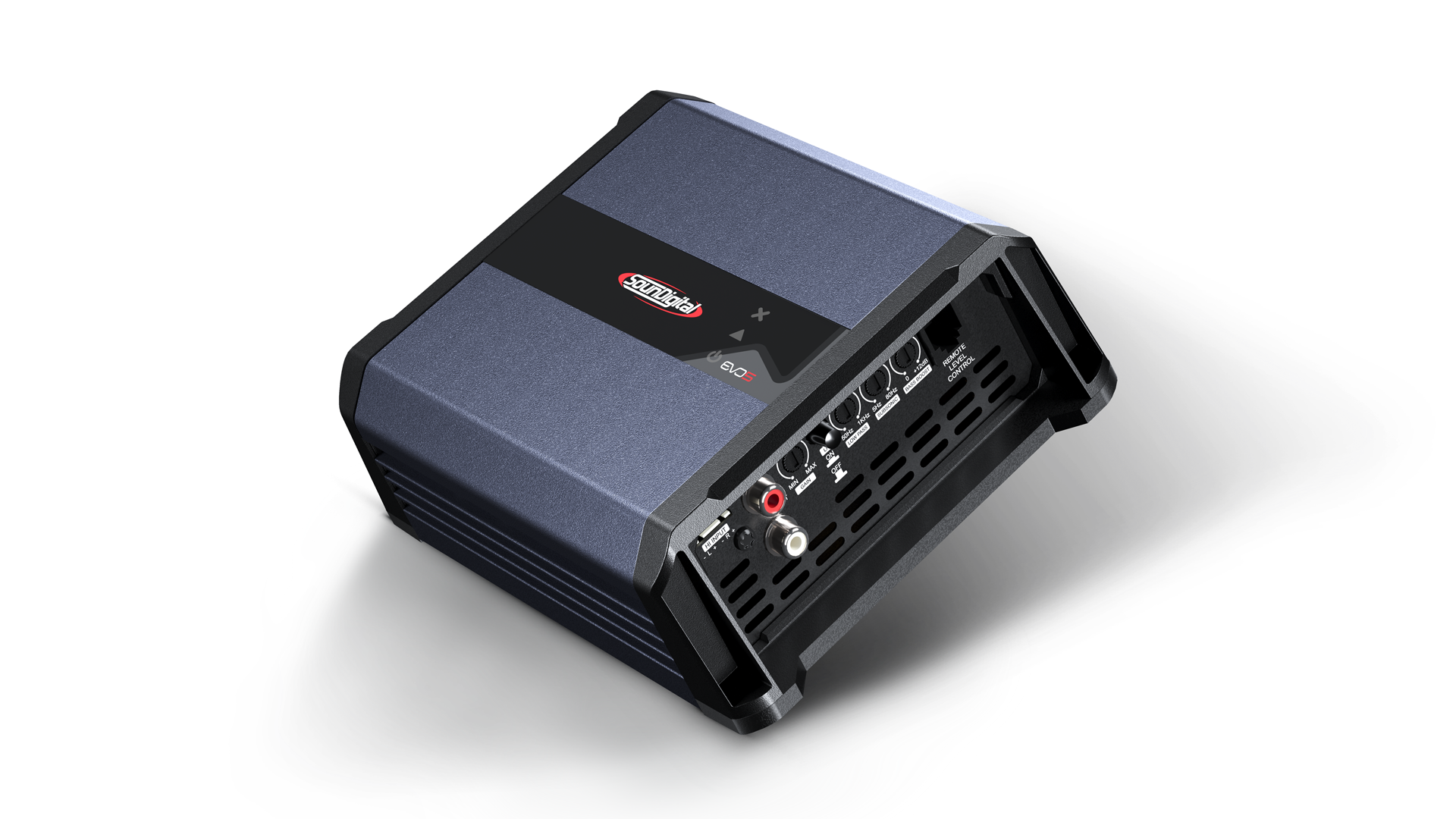

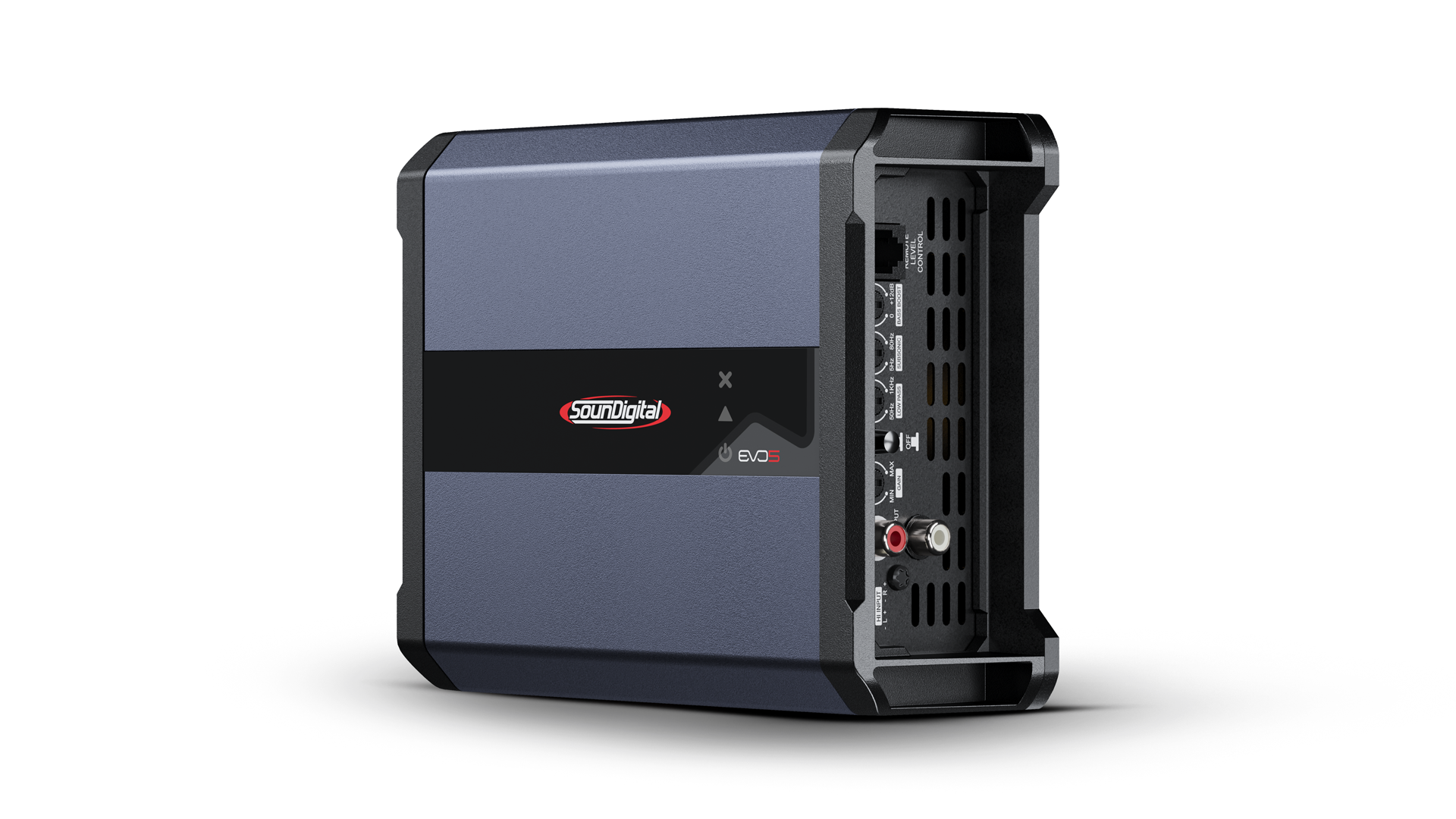

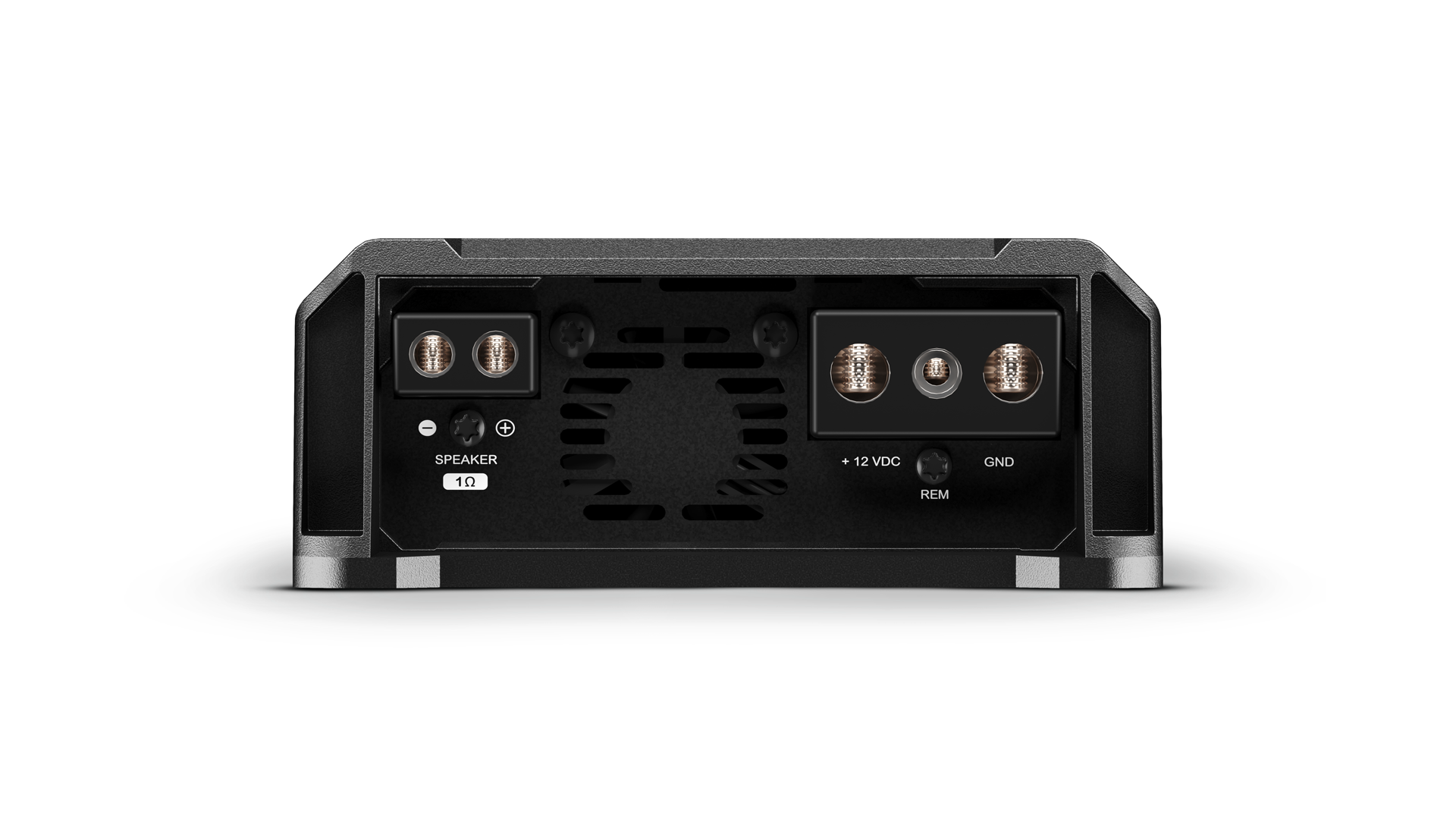

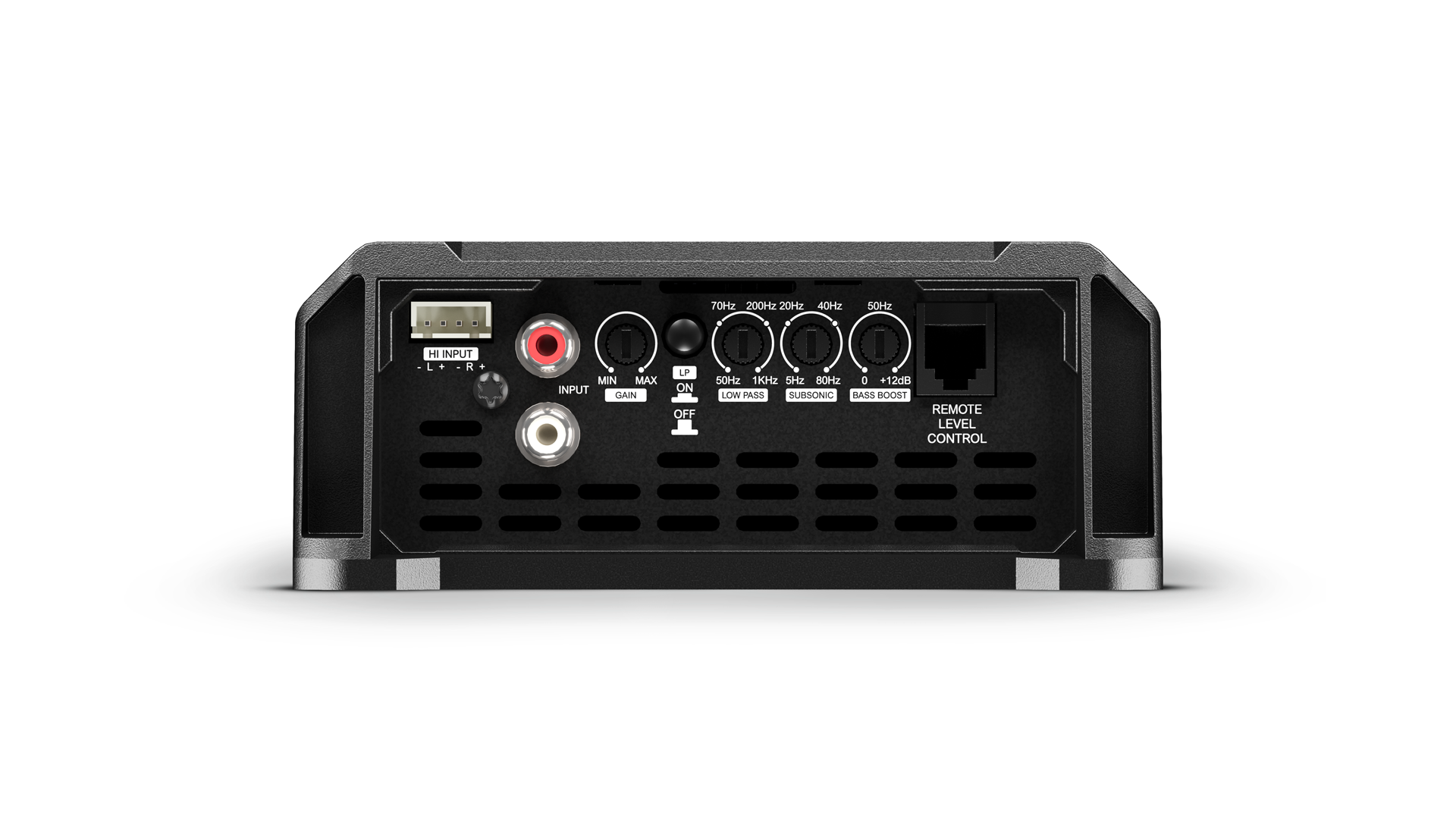

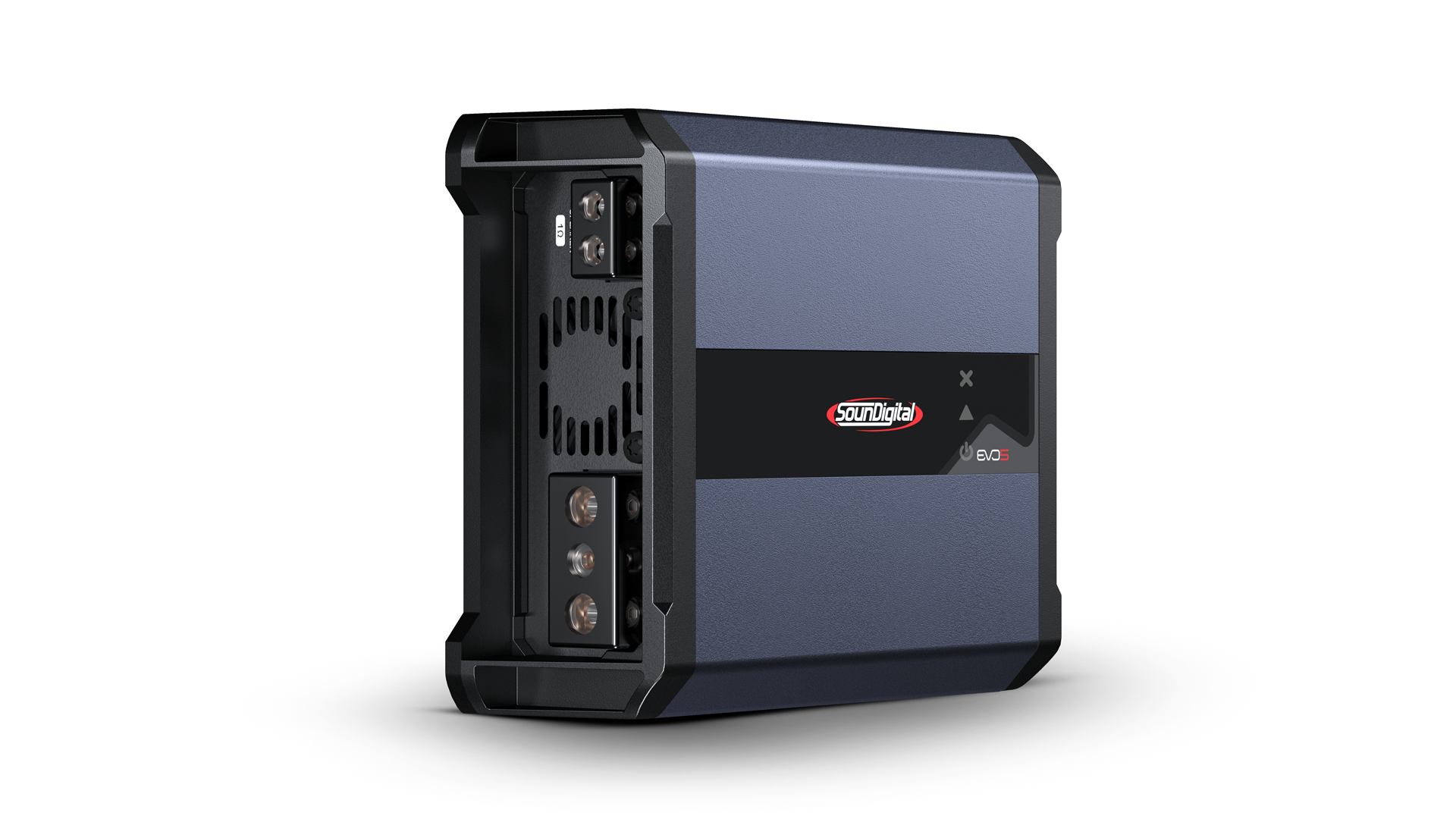

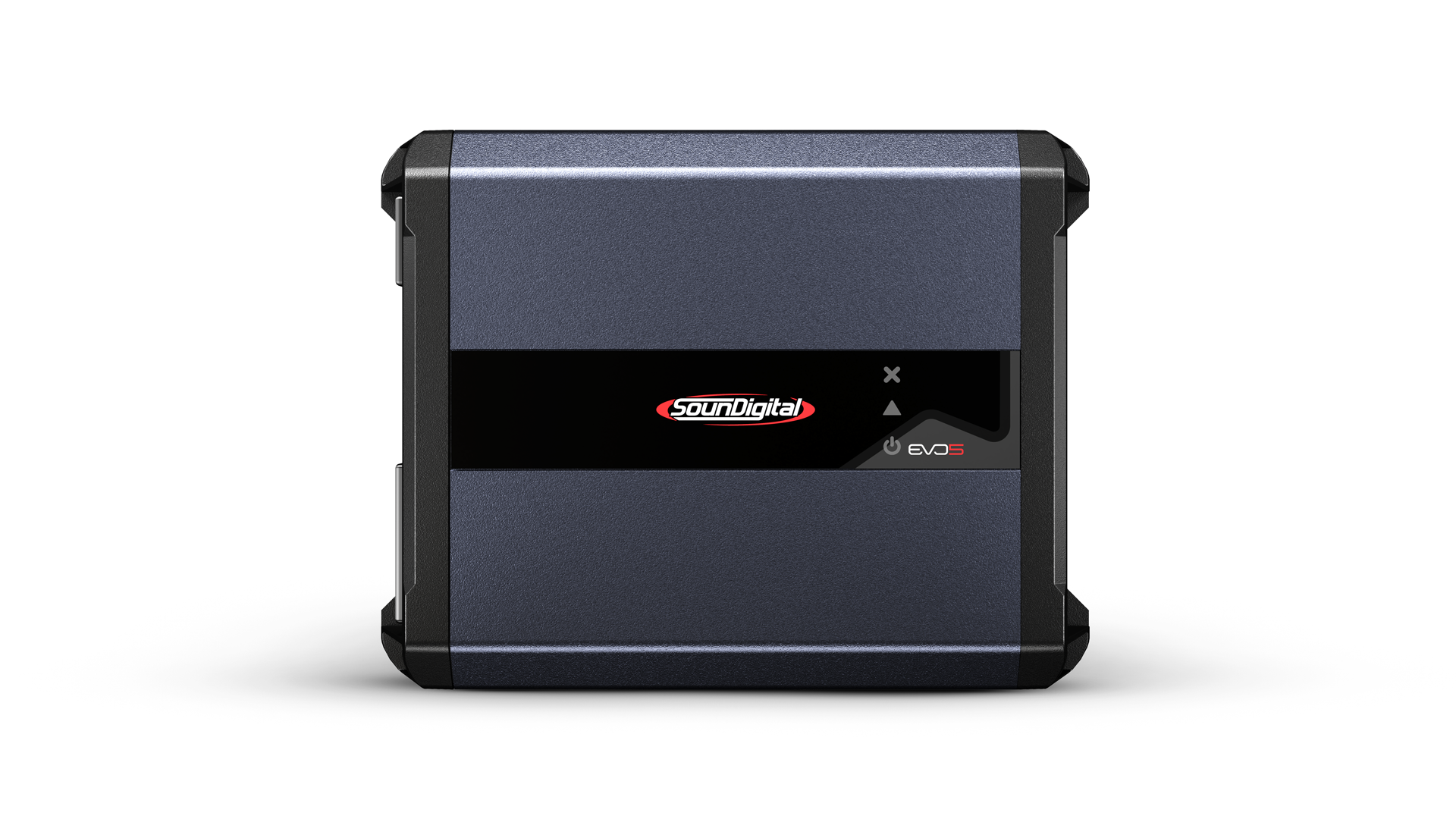

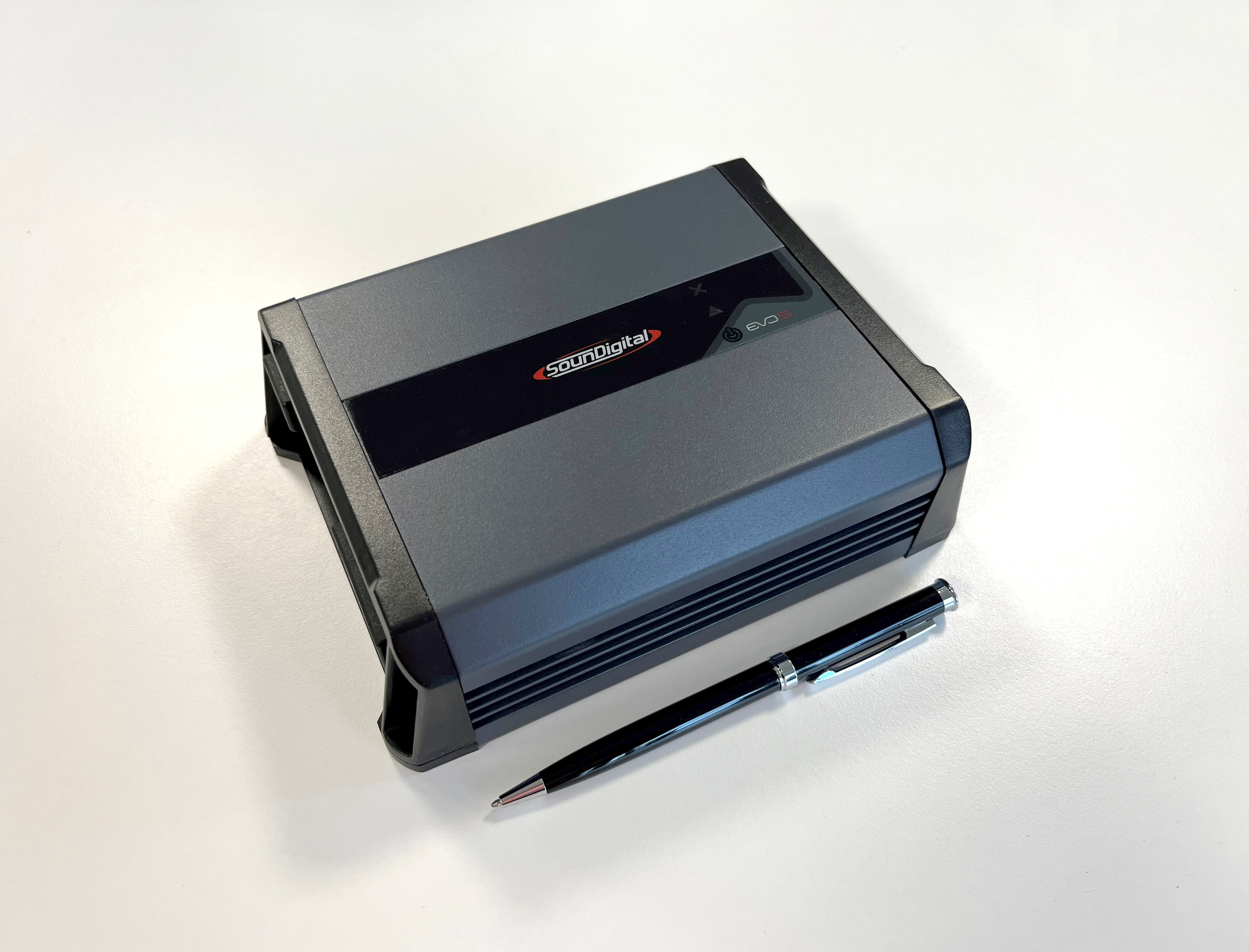

SounDigital 1600.1 EVO 5 - 1 Ohm

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Specifikation Power @ 4Ω: 1 X 697 WRMS Power @ 2Ω: 1 X 1056 WRMS Power @ 1Ω: 1 X 1600 WRMS Frequency Response (-3dB): 5Hz ~ 25kHz Subsonic Filter: 5Hz ~ 80Hz Low Pass Filter: 50Hz ~ 1kHz Bass Boost: 0dB ~ 12dB @ 50Hz Operating Voltage: 9V ~ 16V Signal-Noise Ratio: 1Ω: 93.7dB 2Ω: 95dB 4Ω: 93.4dB Input Sensitivity: 0.2V ~ 2V Current Draw (Music): 1Ω: 75A 2Ω: 71A 4Ω: 69.4A Current Draw (Max): 1Ω: 149A 2Ω: 143A 4Ω: 138.8A Total Efficiency: 1Ω: 85% 2Ω: 89% 4Ω: 91.5% Damping Factor: 2000 Power Cable: 16mm² (5 AWG) Audio Output Cable: 2 x 1.5 mm² (15 AWG) Recommended Fuse (Music): 80A Recommended Battery: 80Ah Width: 13.6 cm / 5.4 in Length: 18 cm / 7.1 in Height: 5.48 cm / 2.1 in Weight: 1.13 Kg
