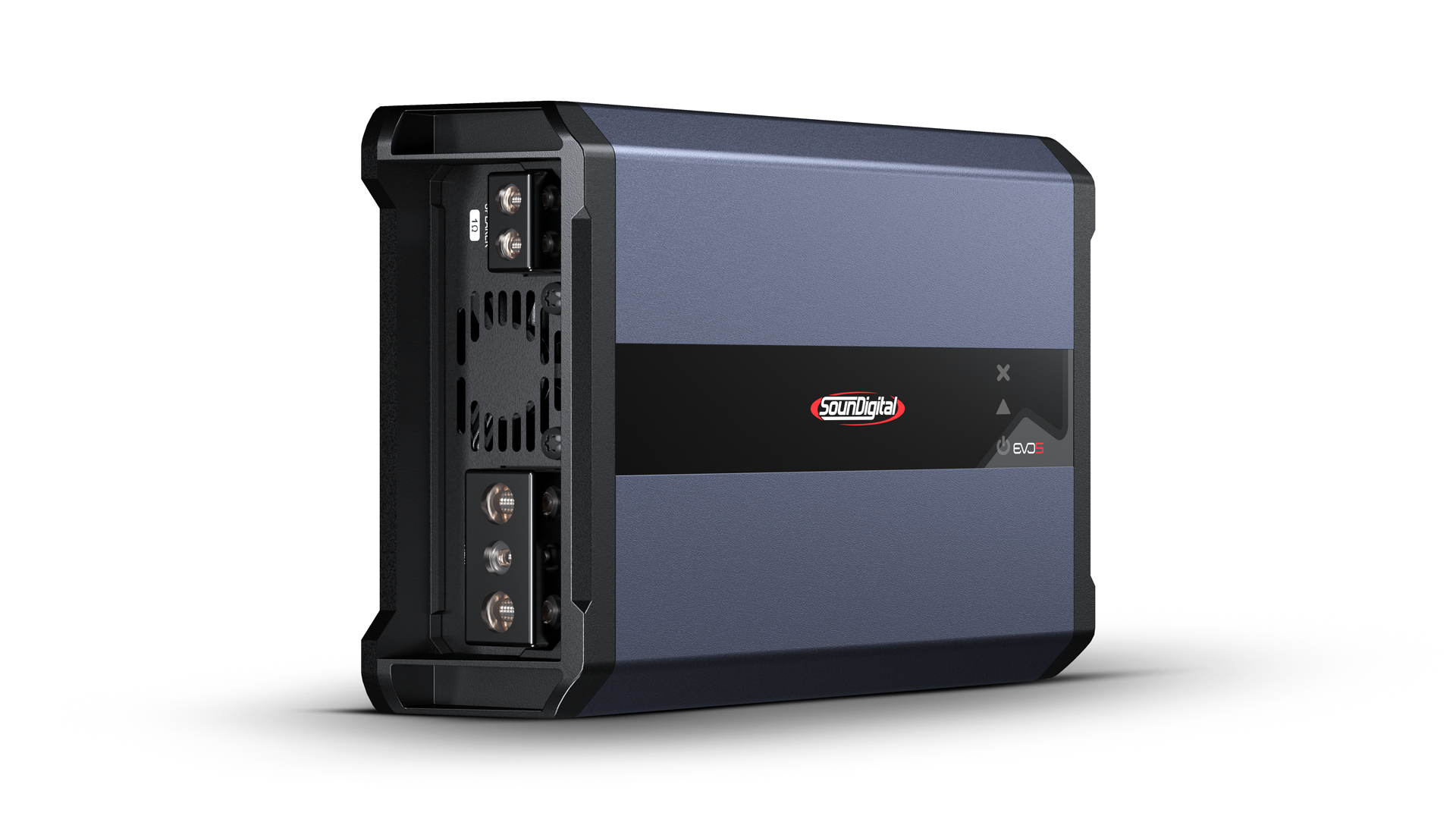

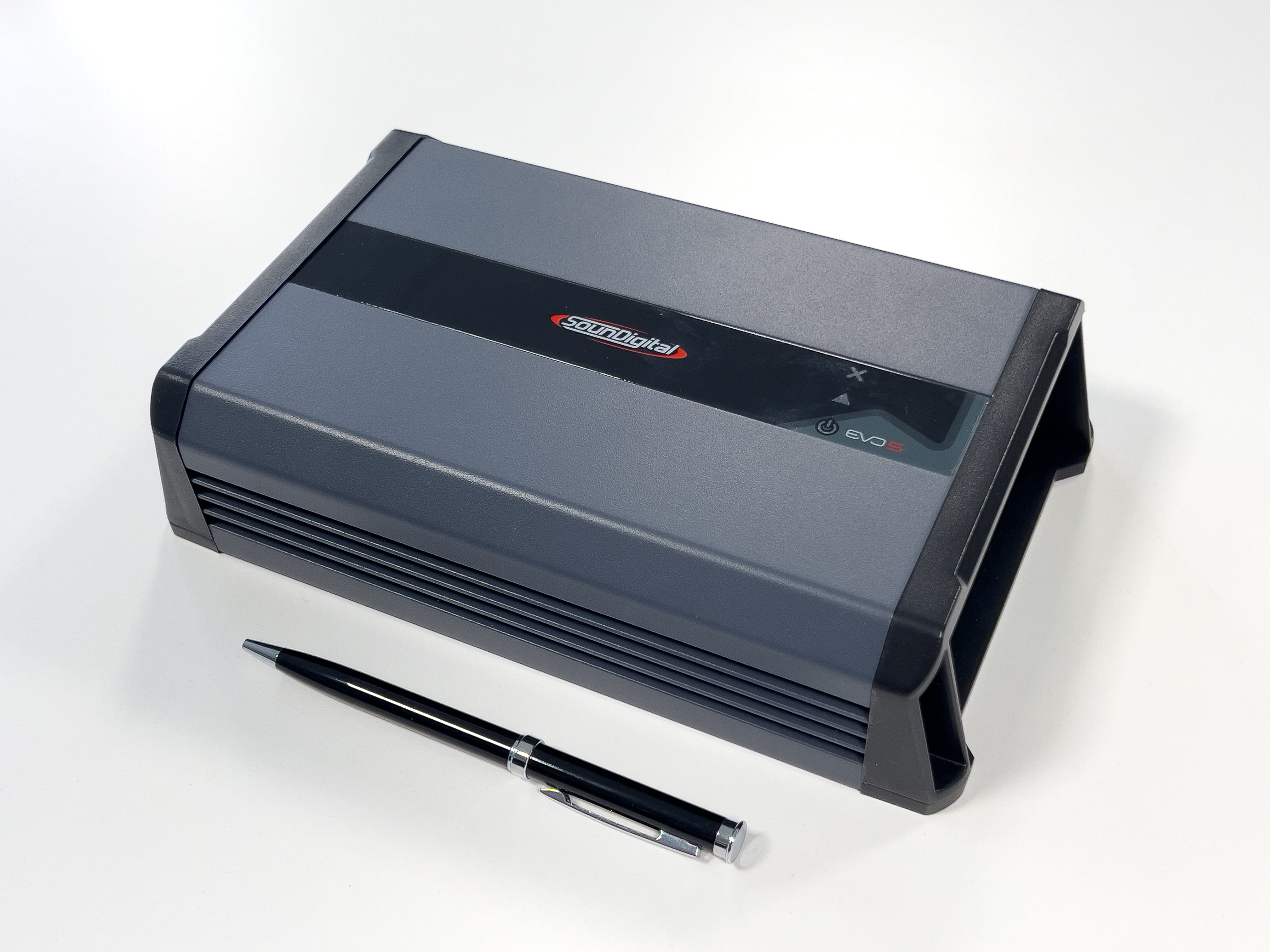

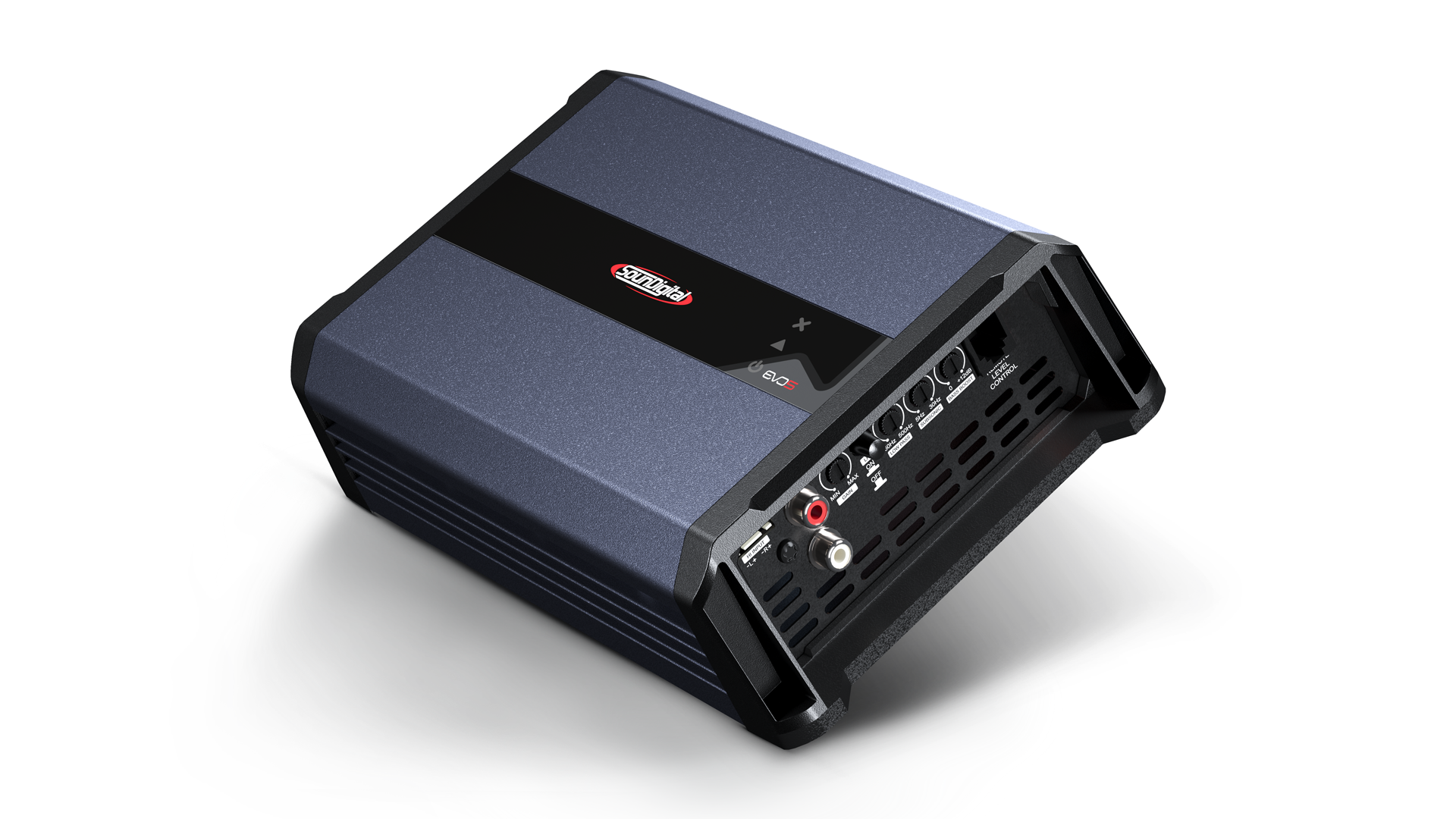

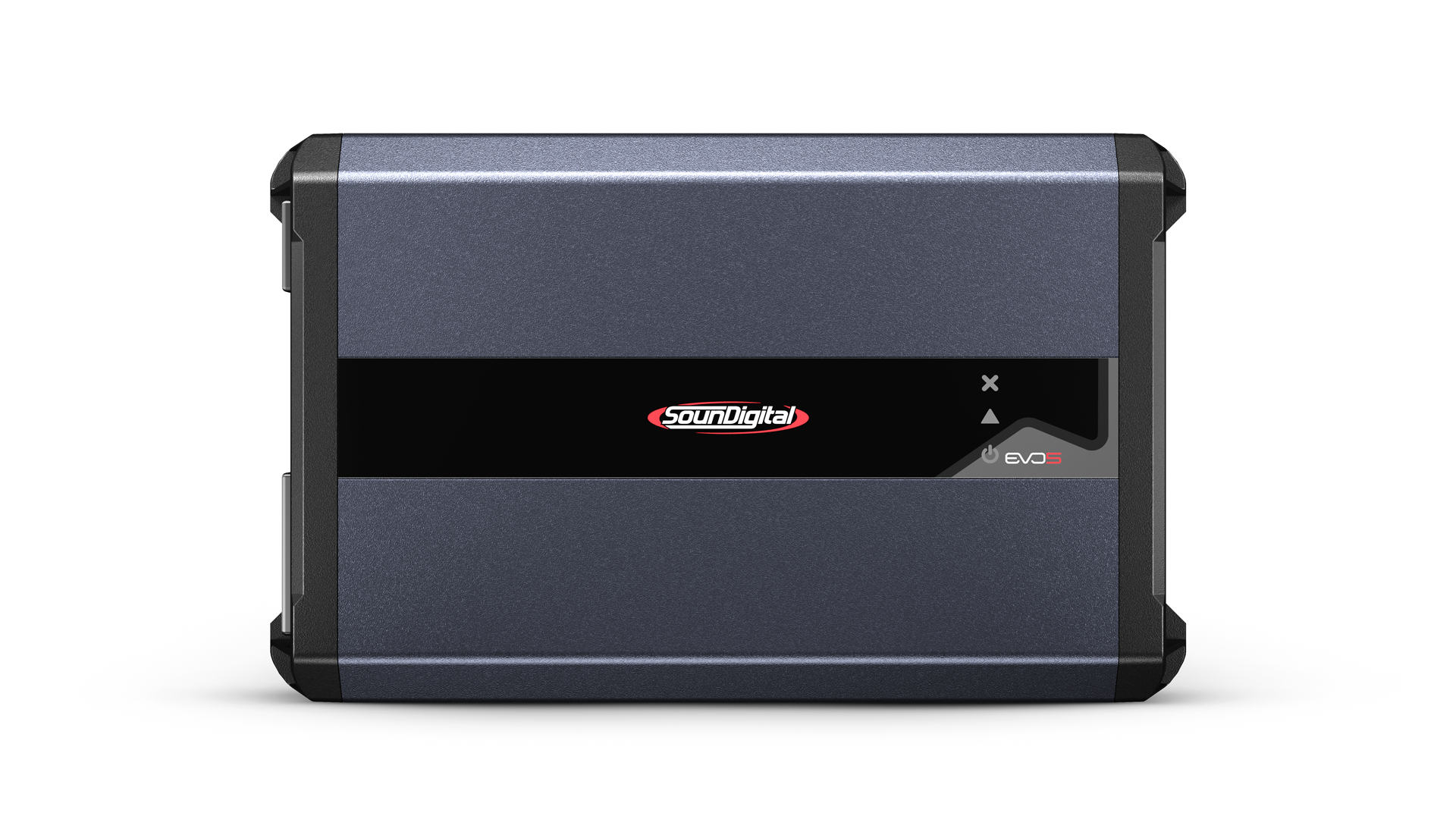

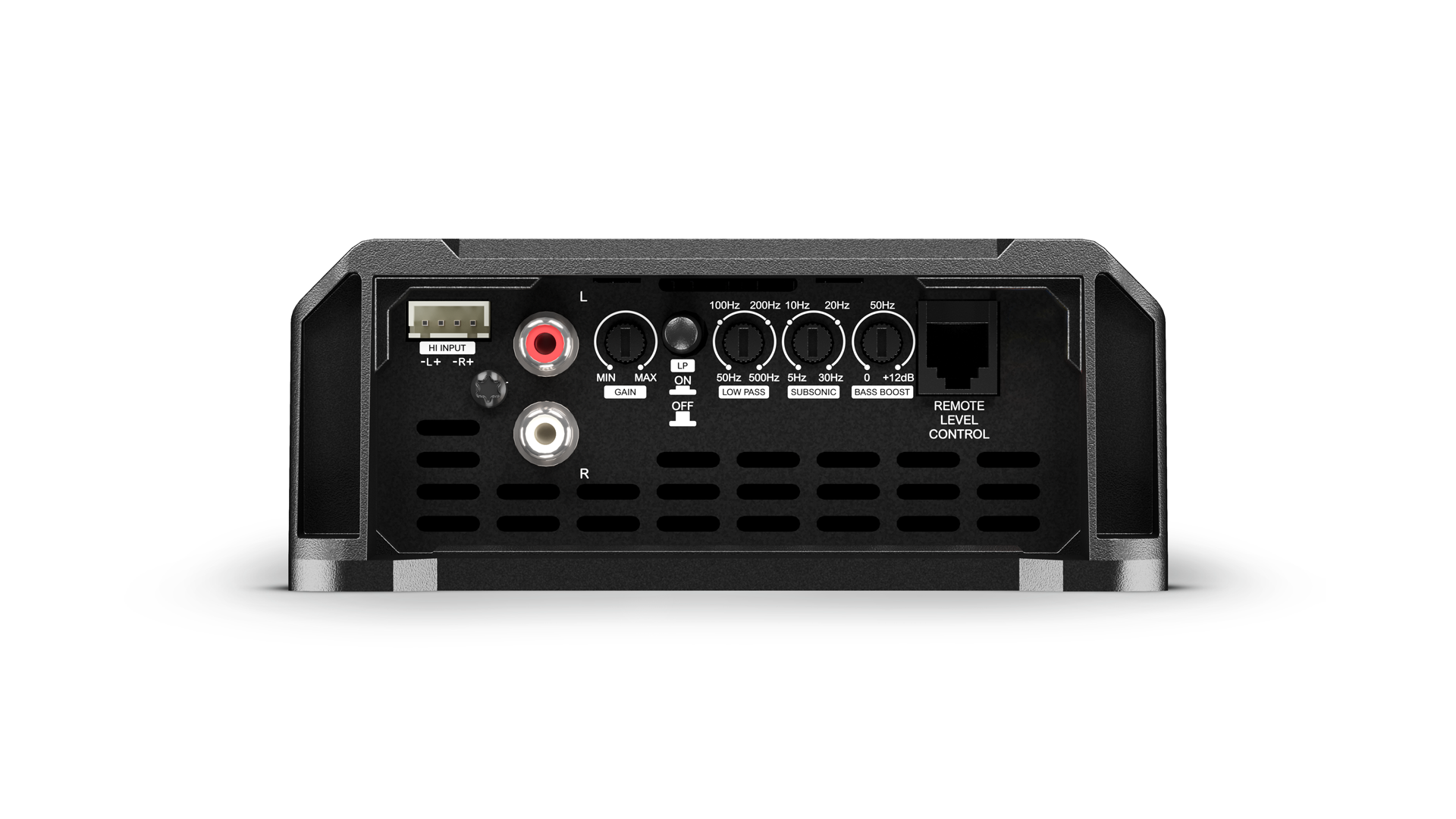

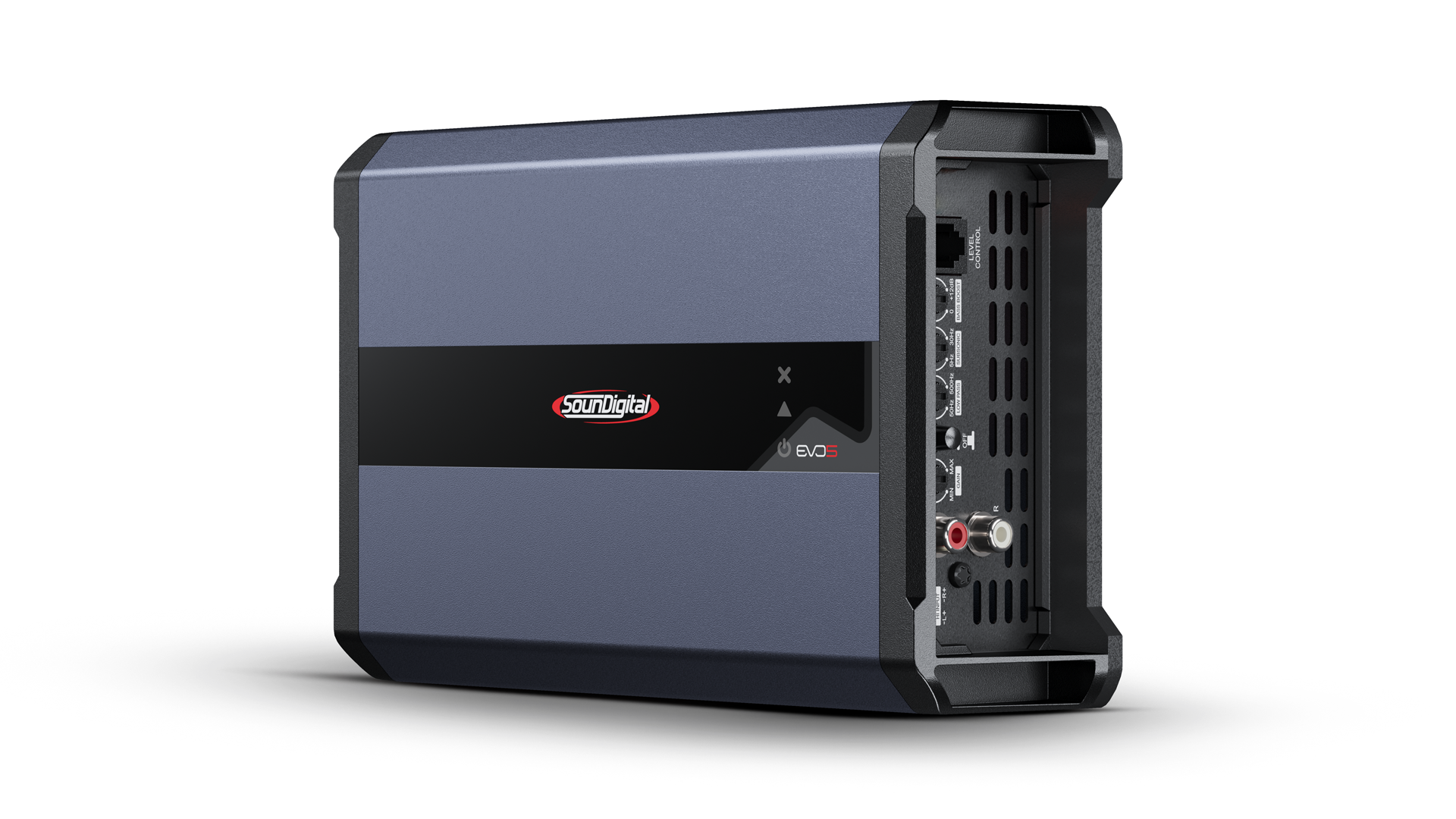

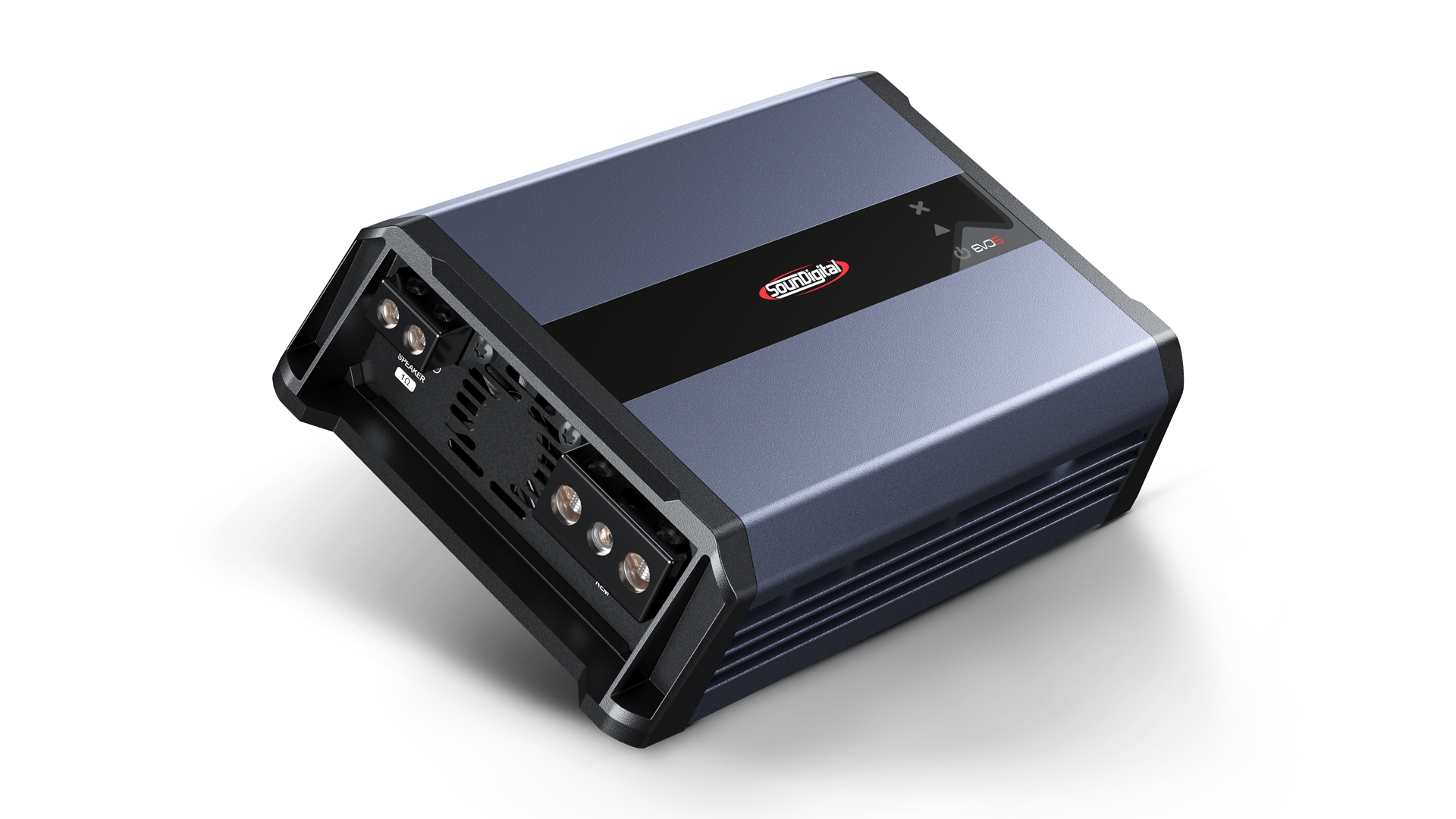

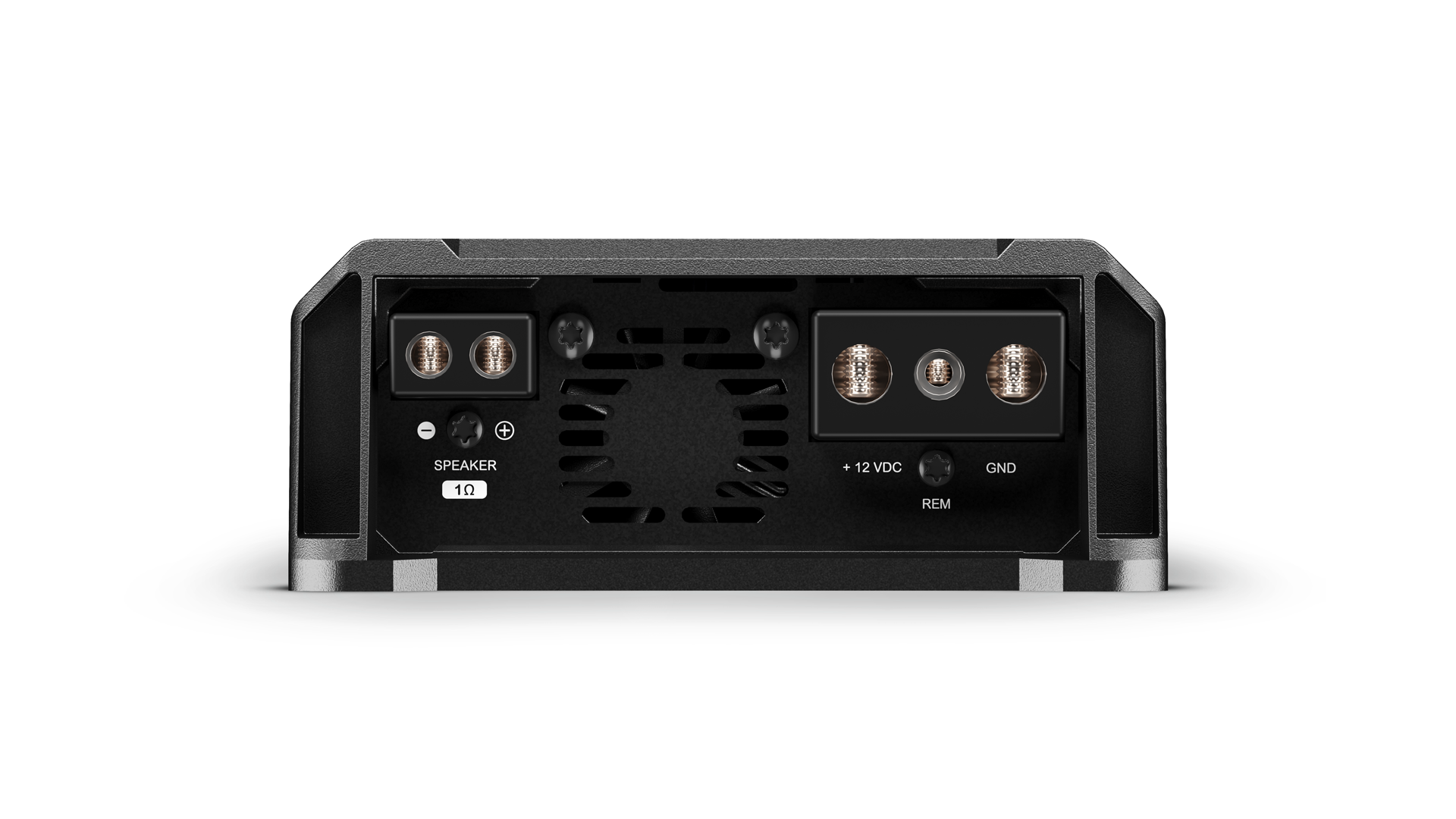

SounDigital 3000.1 EVO 5 - 1 Ohm

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Specifikation Power @ 1Ω: 1 X 3000W RMS Power @ 2Ω: 1 X 1980W RMS Power @ 4Ω: 1 X 1307W RMS Frequency Response (-3dB): 5Hz ~ 25kHz Low Pass Filter: 50Hz ~ 500Hz subsonic: 5Hz ~ 30Hz Bass Boost: 0dB ~ 12dB @ 50Hz Operating Voltage: 8V – 16V SNR: 92dB Input Sensitivity: 0.2V ~ 2V Current Draw (Music): 1Ω: 149A 2Ω: 139A 4Ω: 140A Current Draw With Resistive Load: 1Ω: 298A 2Ω: 277A 4Ω: 280A Total Efficiency: 1Ω: 80% 2Ω: 86% 4Ω: 85% Damping Factor: 2000 Power Cable: 35mm² (2AWG) Audio Output Cable: 1Ω: 2 x 4.0 mm² (11 AWG) 2Ω: 2 x 2.5 mm² (13 AWG) 4Ω: 2 x 1.5 mm² (15 AWG) Recommended Fuse (Music): 150A Recommended Battery: 150Ah Width: 5.3 in / 13.6 cm Length: 8.9 in / 22.8 cm Height: 2.1 in / 5.48 cm Weight: 1.75 Kg.
