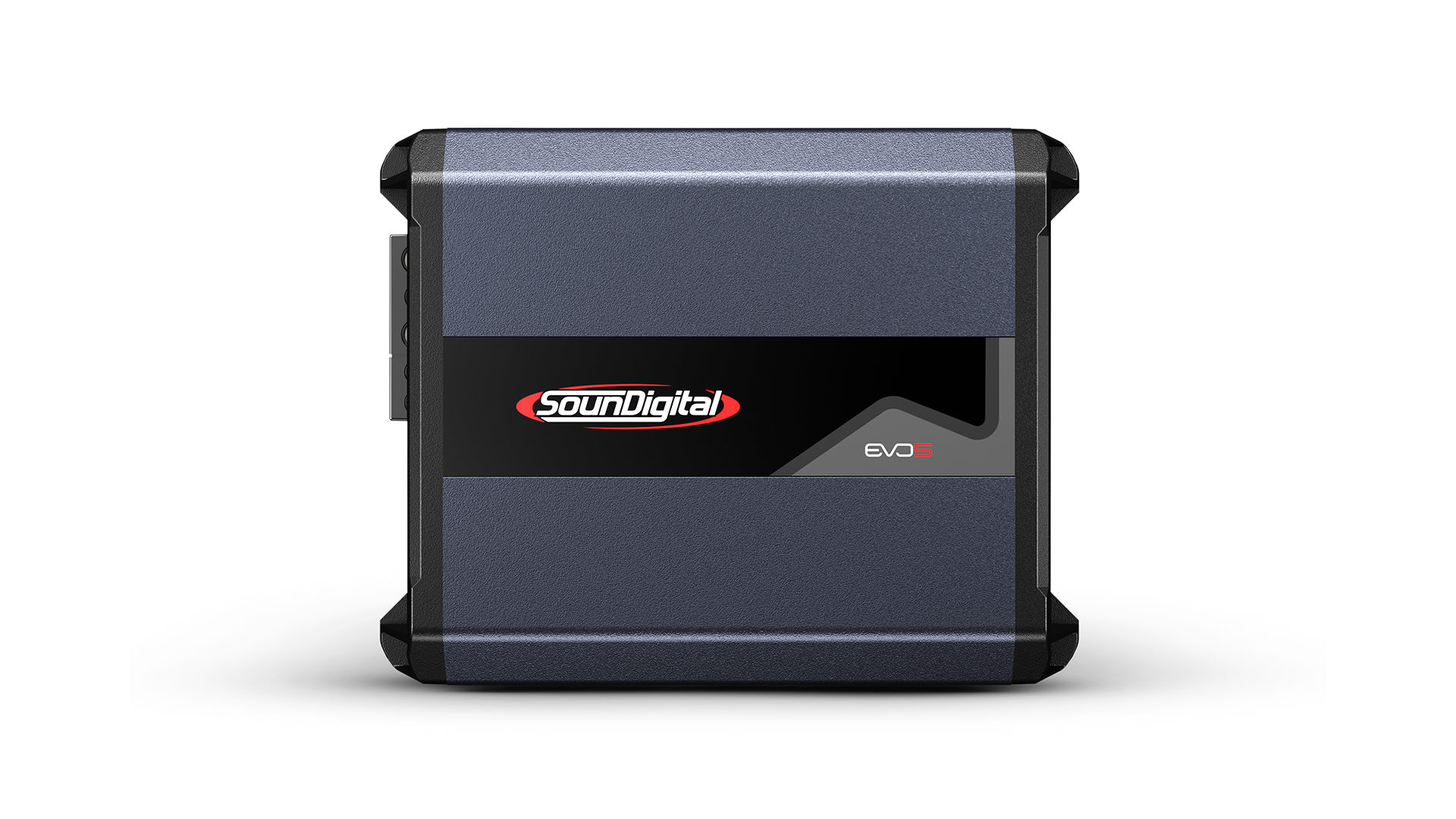

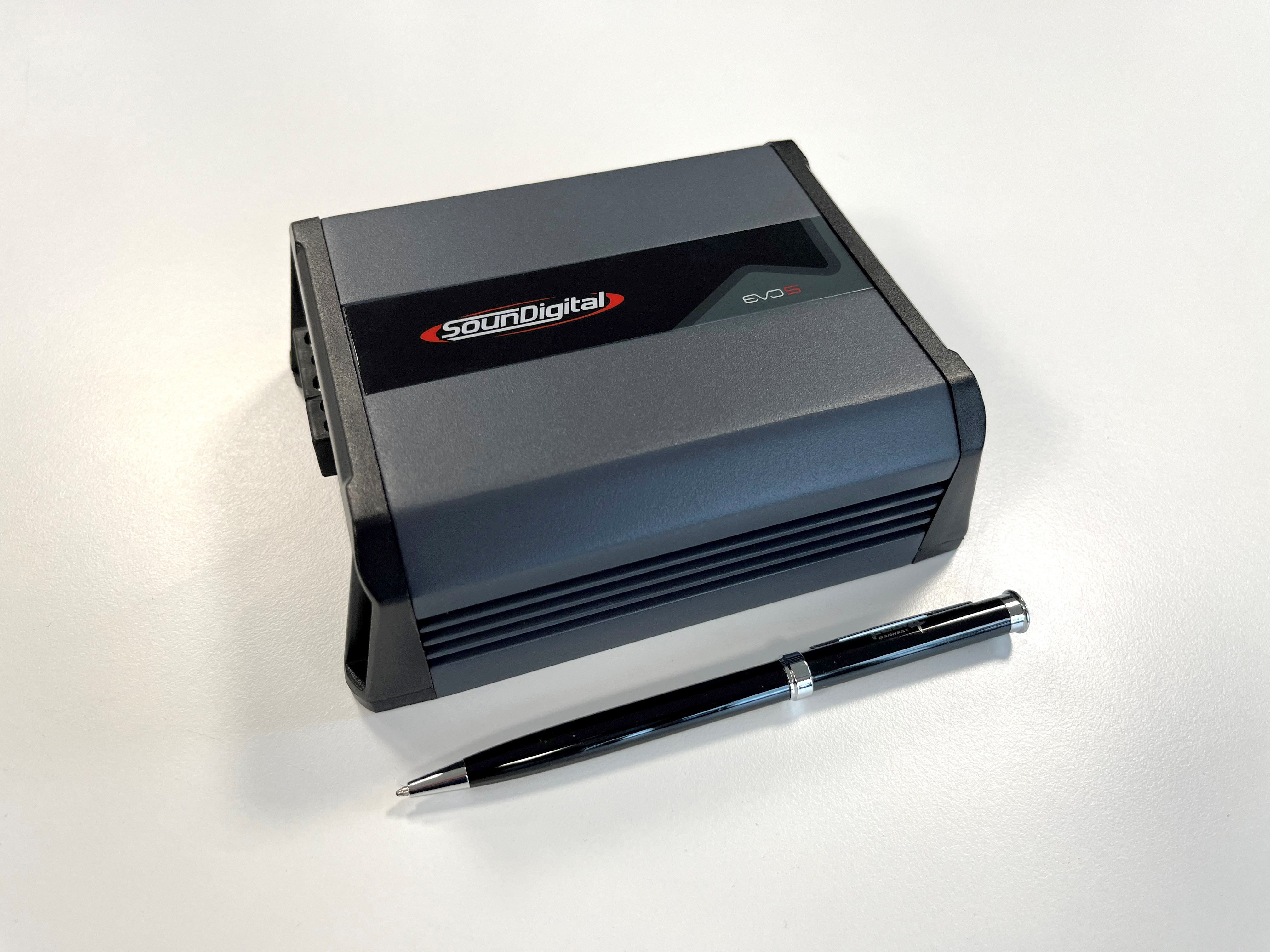

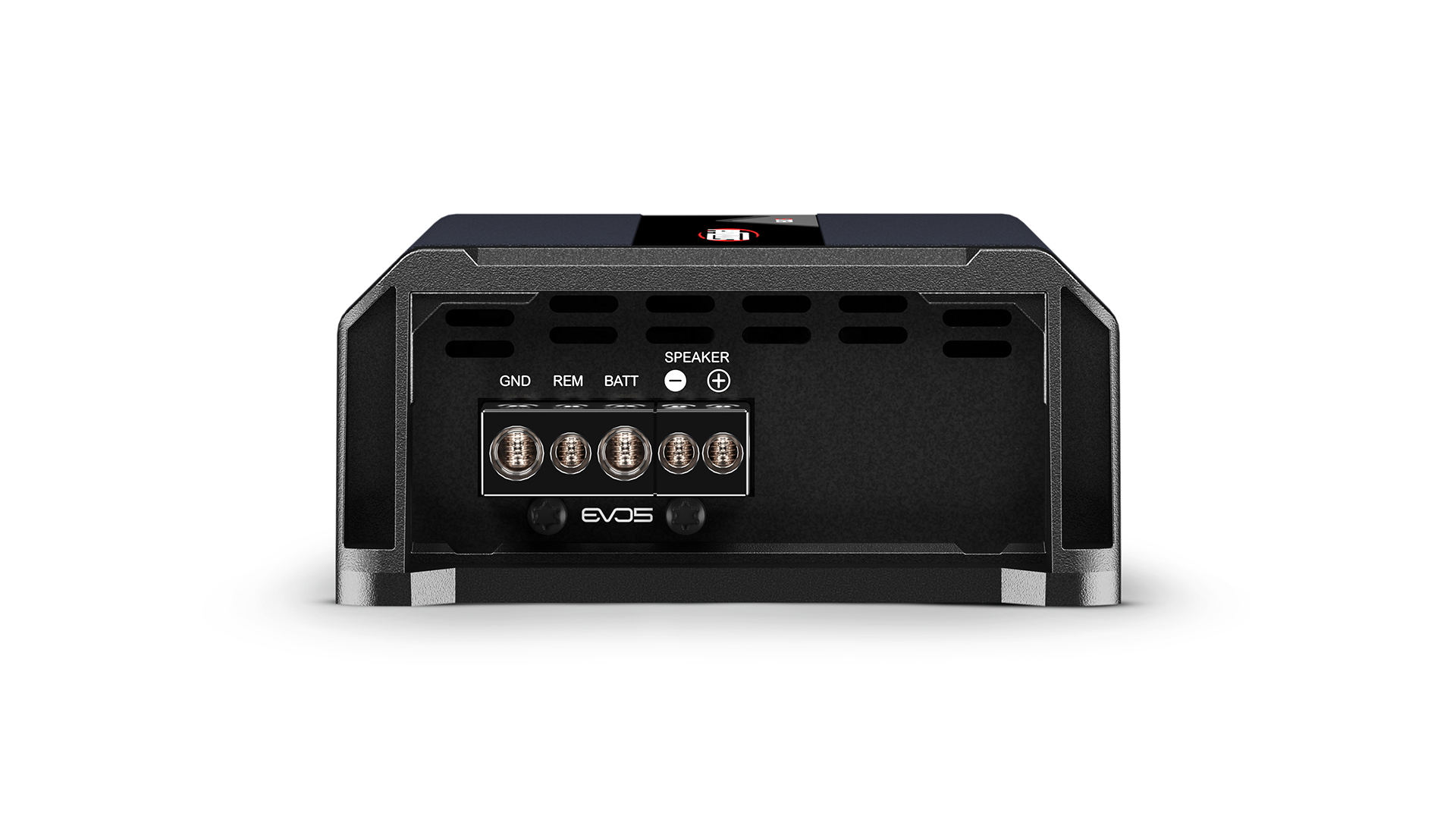

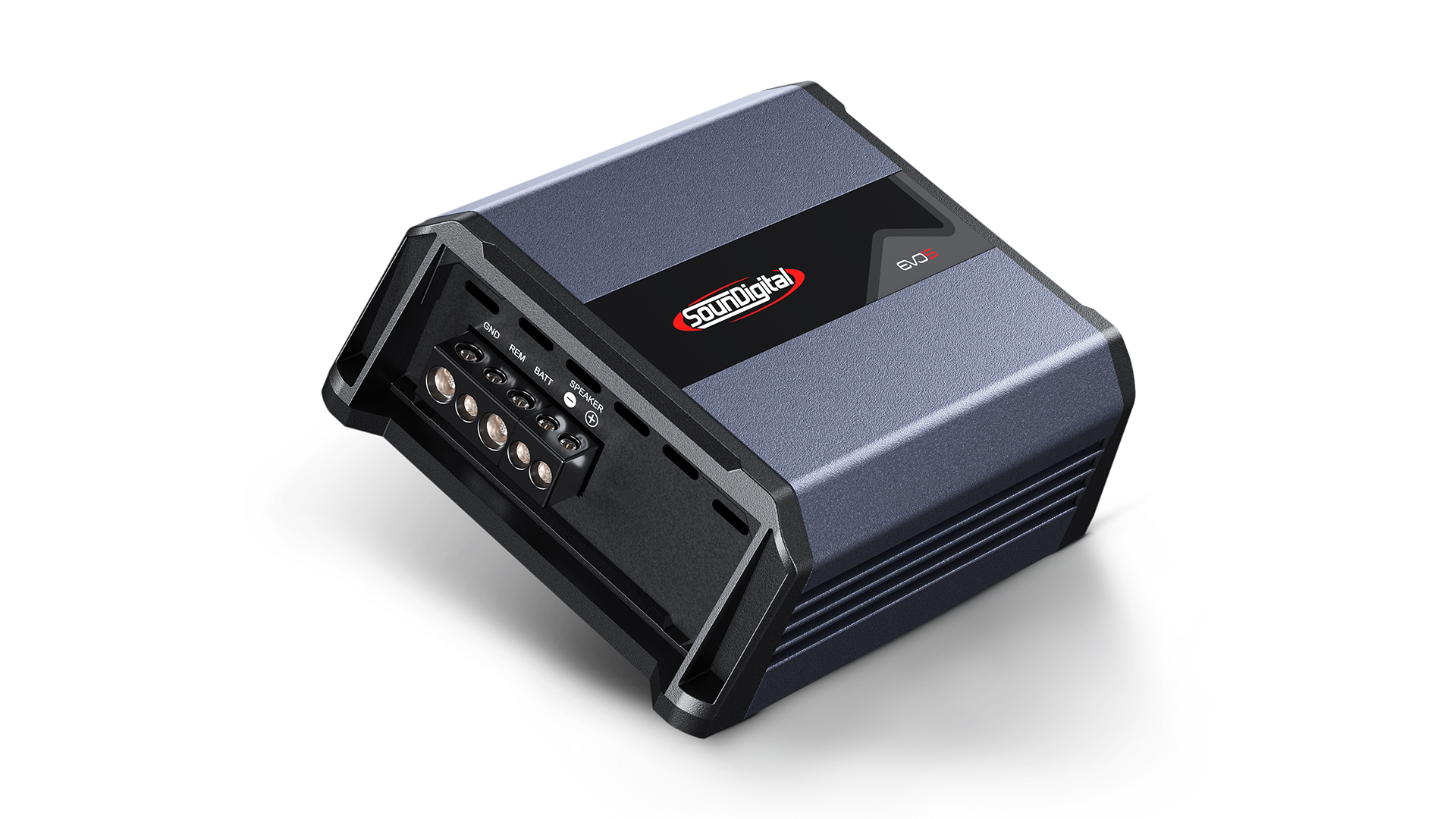

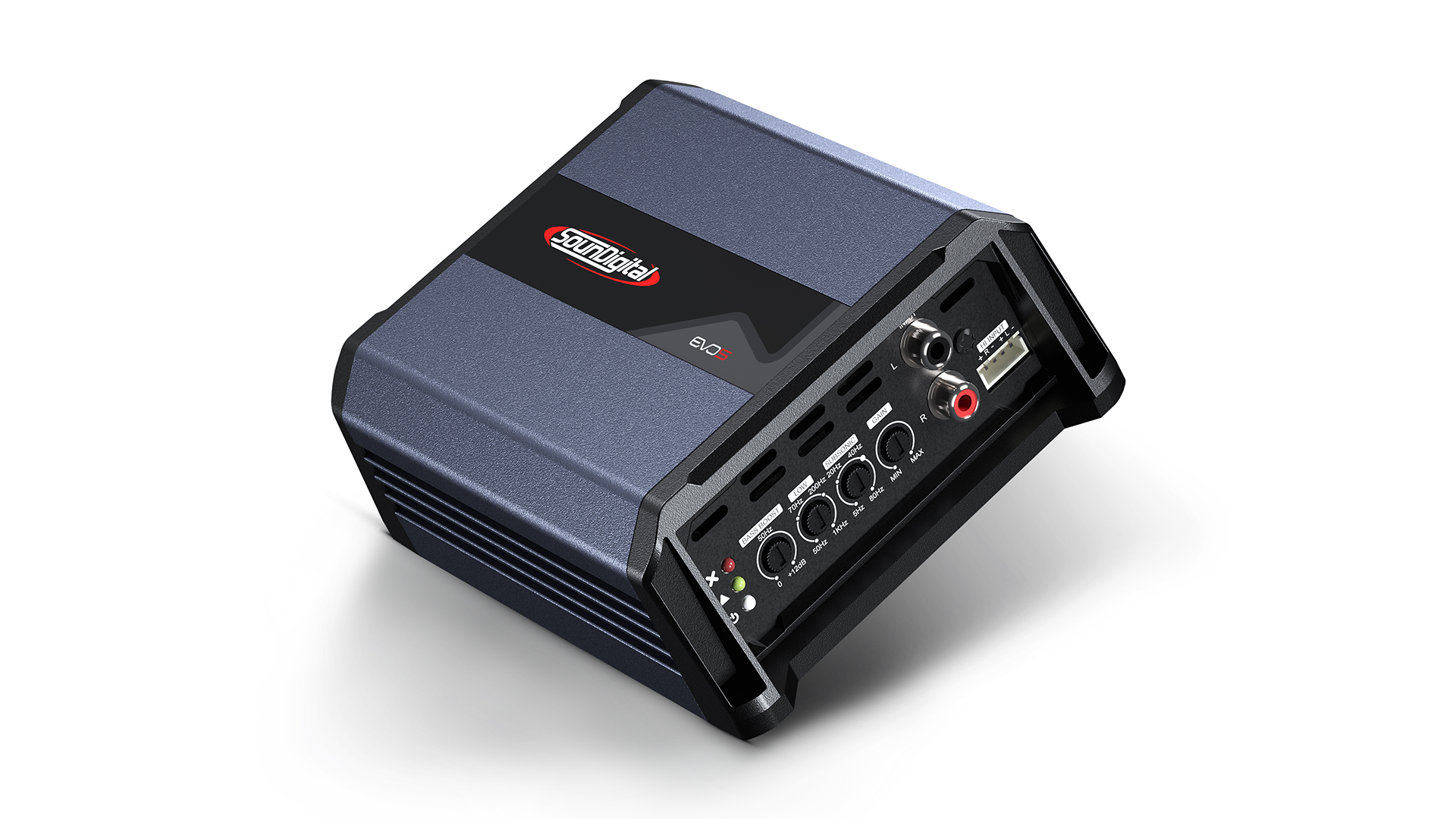

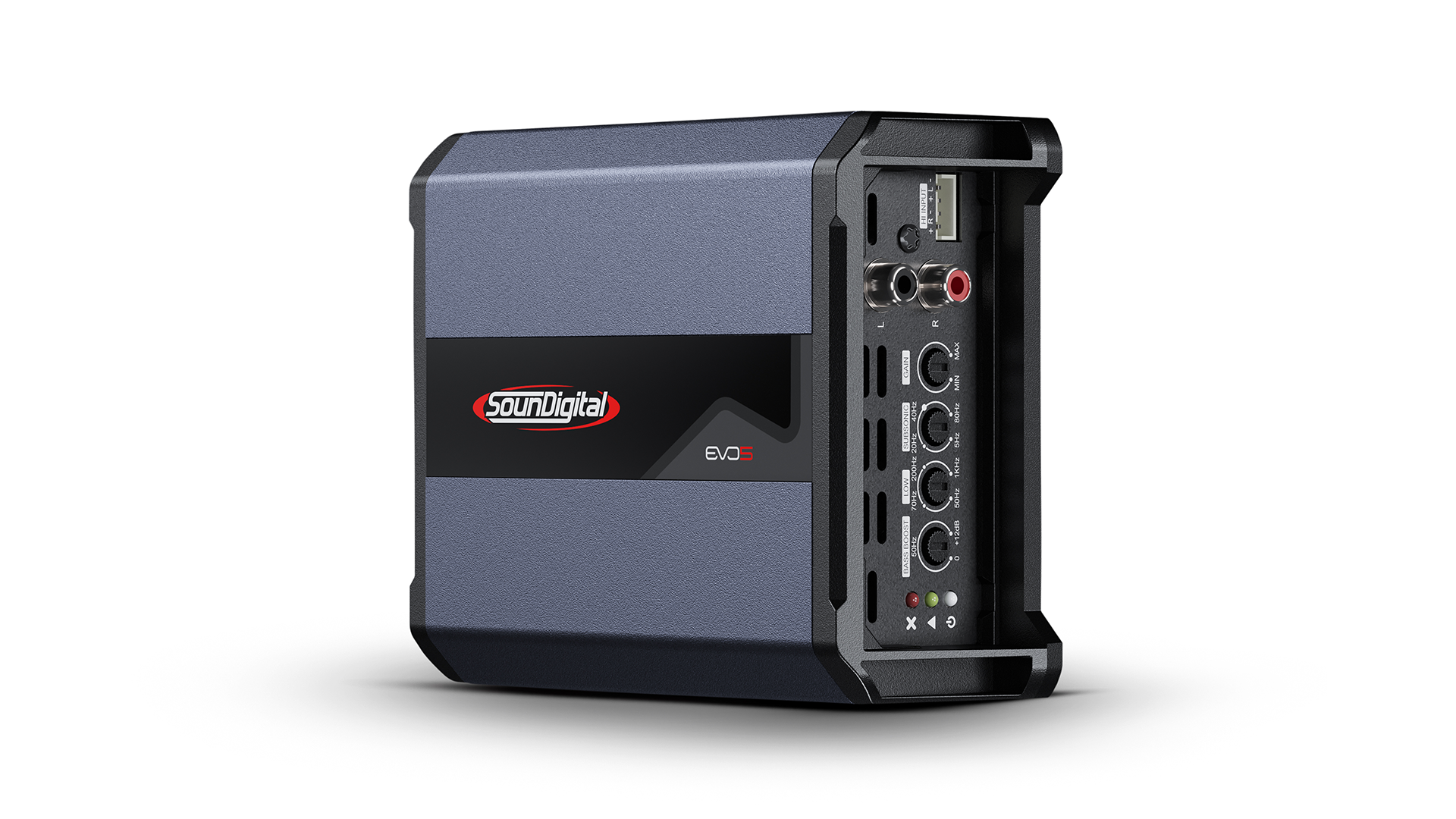

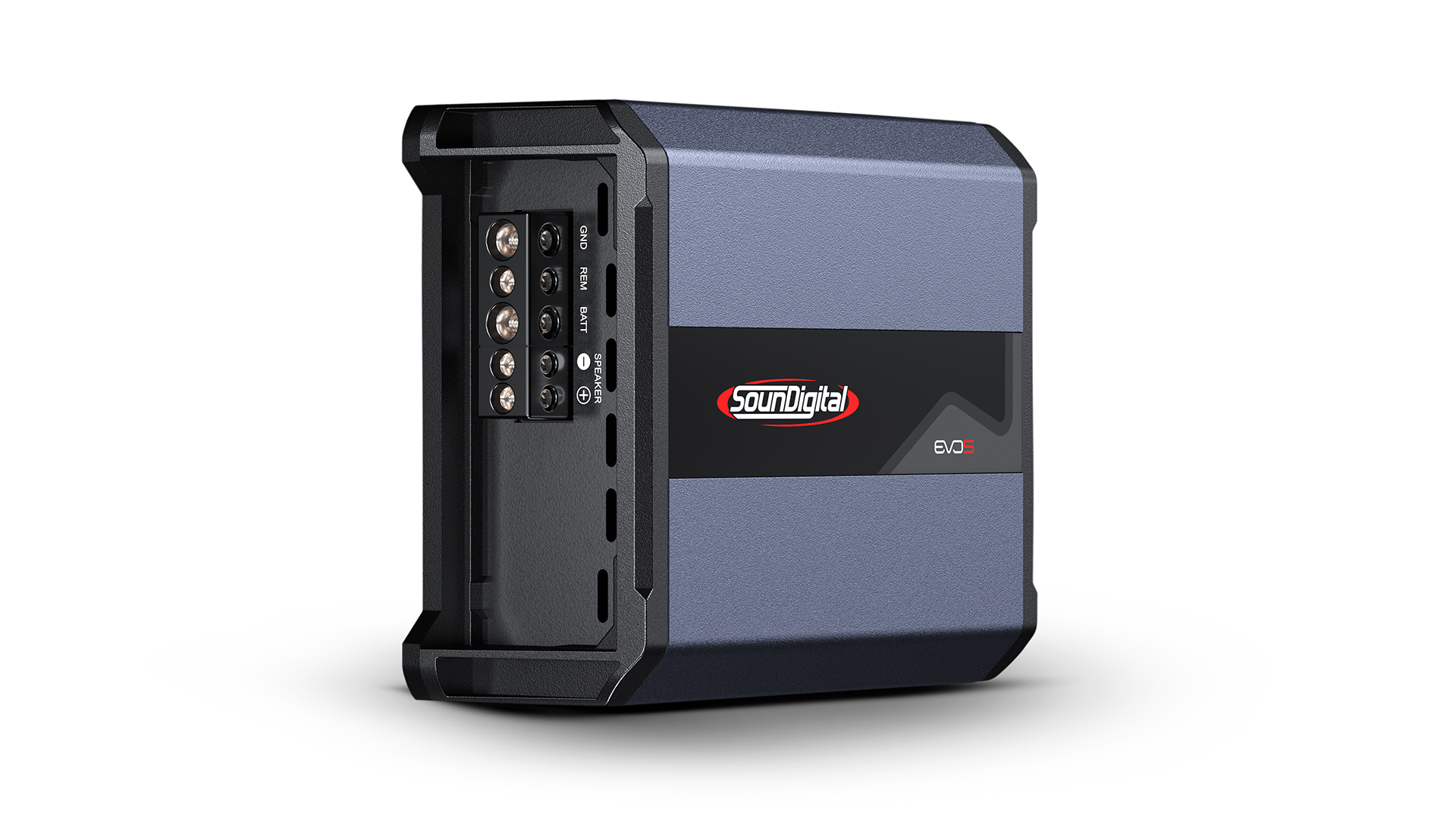

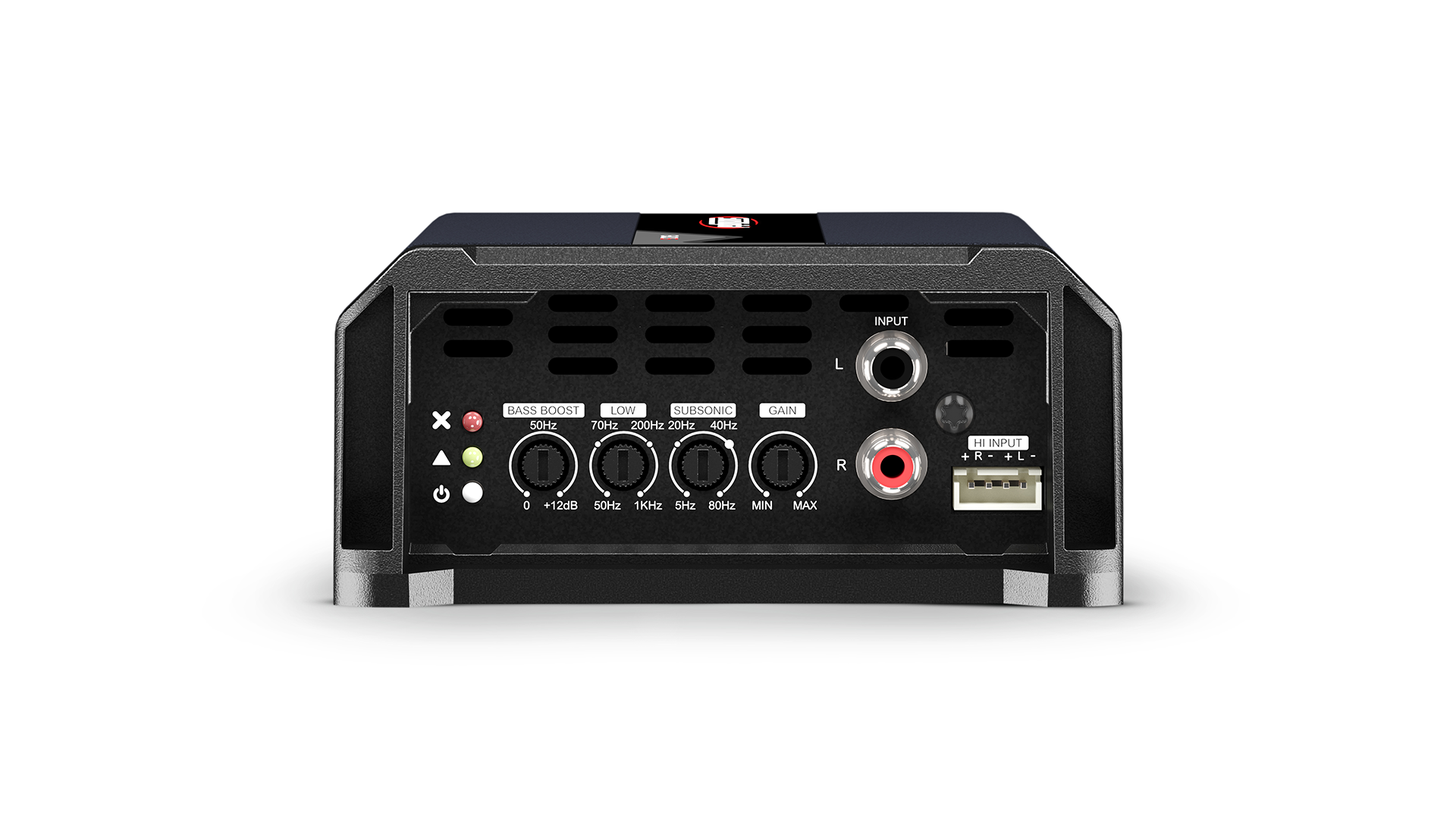

SounDigital 800.1 EVO 5 - 4 Ohm

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Specifikation Power @ 2Ω: N/A Power @ 4Ω: 800W Power @ 8Ω: 528W Frequency Response: 10Hz ~ 20kHz Subsonic Filter (HP 12dB/8º): 10Hz ~ 80Hz Low Pass Filter (LP 12dB/8º): 50Hz ~ 20kHz Operating Voltage: 8V ~ 16V SNR: 2Ω: 96dB 4Ω: 97dB Input Sensitivity (RCA): 0.2V ~ 4V Input Sensitivity (High Level input): 1.5V ~ 15V Current Draw (Music): 4Ω: 38A Current Draw With Resistive Load (1kHz @ 12.6V): 4Ω: 77A Total Efficiency: 4Ω: 78% Damping Factor (@100Hz Rated Impedance): 200 Power Cable: 10mm² (7AWG) Audio Output Cable: 2 x 2mm² (12 AWG) Recommended Fuse (Music): 40A Recommended Battery (Music): 60Ah Width: 4.4 in / 11,3 cm Length: 5.8 in / 14,8 cm Height: 2 in / 5,1 cm Weight: 1.54 lb / 0,7 Kg
