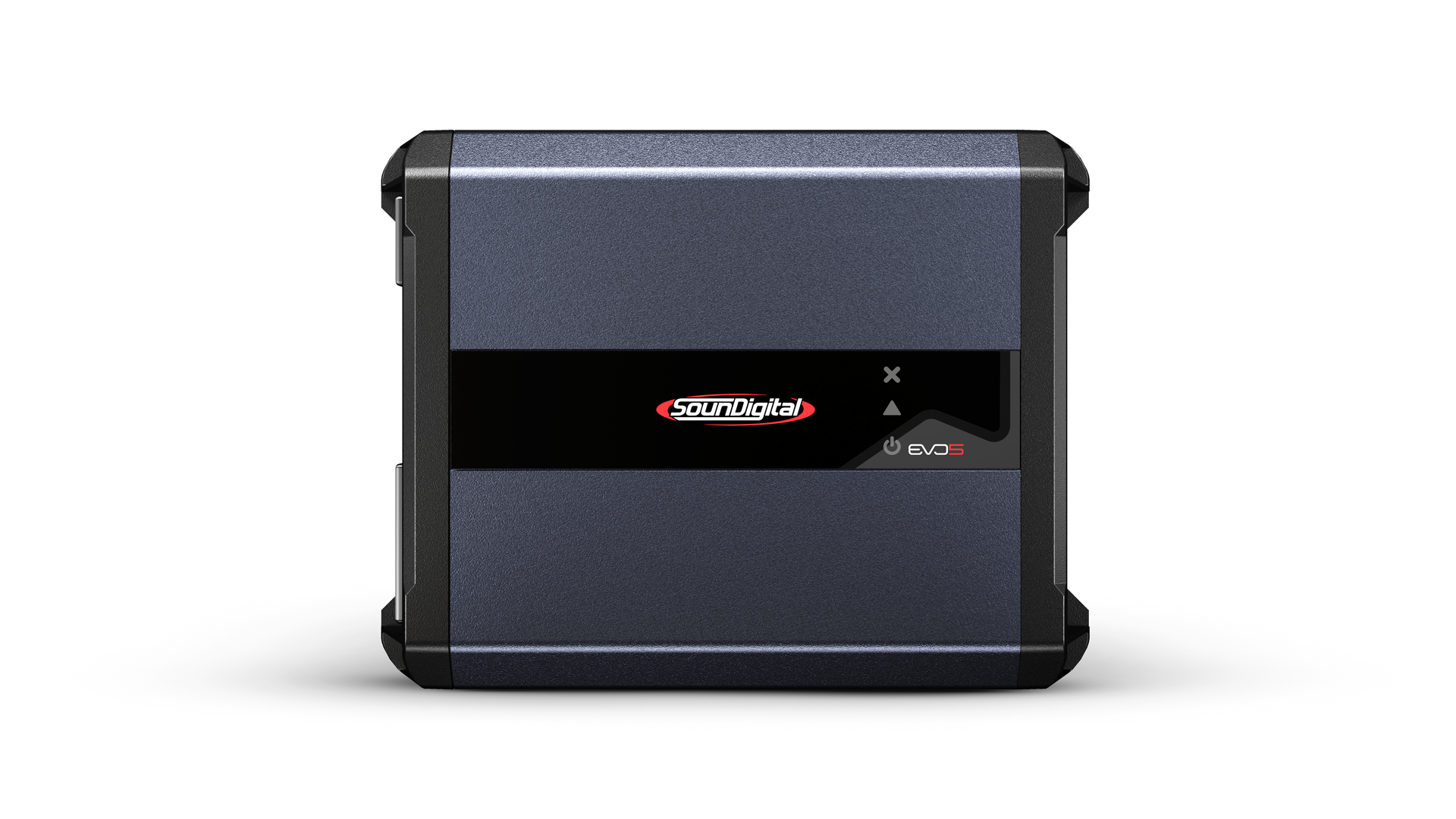

SounDigital 1200.1 EVO 5 - 2 Ohm

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Specifikation Power @ 1Ω: N/A Power @ 2Ω: 1 X 1200 WRMS Power @ 4Ω: 1 X 792 WRMS Frequency Response (-3dB): 5Hz ~ 25kHz Subsonic Filter: 5Hz ~ 80Hz Low Pass Filter: 50Hz ~ 1kHz Bass Boost: 0dB ~ 12dB @ 50Hz Operating Voltage: 9V ~ 16V Signal-Noise Ratio: 95dB Input Sensitivity: 0.2V ~ 2V Current Draw (Music): 1Ω: 54A 2Ω: 52A Current Draw (Max): 1Ω: 108A 2Ω: 105A Total Efficiency: 1Ω: 88% 2Ω: 91% Damping Factor: 2000 Power Cable: 16mm² (5AWG) Audio Output Cable: 1Ω: 2 x 4 mm² (6 AWG) 2Ω: 2 x 2,5 mm² (13 AWG) Recommended Fuse (Music): 70A Recommended Battery: 70Ah Width: 13.6 cm / 5.4 in Length: 18 cm / 7.1 in Height: 5.48 cm / 2.2 in Weight: 1,12 Kg
