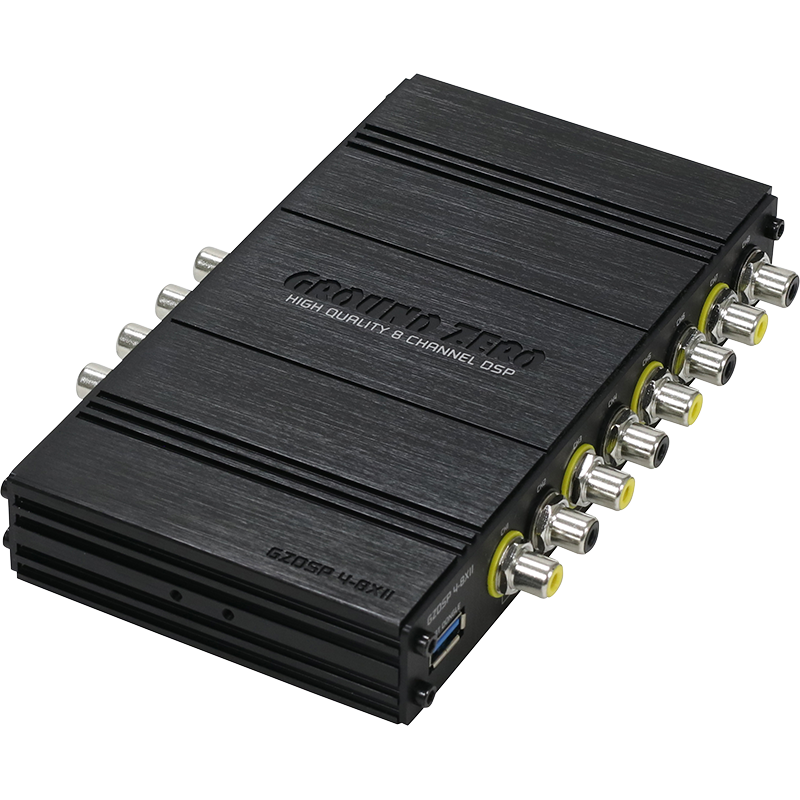

Ground Zero GZDSP 4-8XII

The GZDSP 4-8XII is a digital signal processor increasing the sound quality of the vehicle´s audio equipment, based on two 28-bit DSP chipsets in combination with four 24-bit AD and eight separate DA converters. Due to its universal summing function combining up to 4 high-level channels and its 8x 10-band equalizing, the GZDSP 4-8XII can be integrated into most OEM sound systems. Optionally available accessory: GZDSP BTS 4-8XII, GZDSP REM 4-8XII EISA IN-CAR BEST VALUE DSP 2020-2021. - Type 8-channel signal processor (DSP) with 4 input channels - Sampling frequency 48 kHz / resolution 56-bit - Frequency range 20 Hz – 20 KHz (-3 dB) - SNR / line input ≥115 dB - SNR / high level input ≥105 dB - THD / line input 0.002 % - THD / high level input 0.010 % - DSP chipset 2x Analog Devices SigmaDSP - Sensitivity Line input (RCA) max. 855 mV RMS - High level input max. 8.0 V RMS - Input impedance Line input (RCA) ≥20 kΩ - High level input 39 Ω - Output voltage / channel ≥2.5 V - Remote current max. 500 mA - Remote input voltage 10 V - Switching voltage / speaker input 1.3 V - Switching voltage / line input 10 mV - Turn on delay 3 seconds - Recommended fuse value 2 A - Software compatibility Microsoft Windows™ XP SP3, Vista, 7, 8, 8.1,10 - Preset memory 6 presets (individually assignable) - Gain range -60 bis +6 dB - Equalizer 8x parametric 10 band EQ (20 Hz – 20 kHz) with adjustable Q - Time delay 0 – 8 ms / 0 – 272 cm / 0 – 107“ - Crossover 6 / 12 / 18 / 24 dB/oct. slope with selectable filter characteristic - Phase correction 0° / 180° - Optionally available accessory GZDSP BTS 4-8XII GZDSP REM 4-8XII - Remote included - Dimensions (W x L x H) 169 x 114 x 27 mm.
