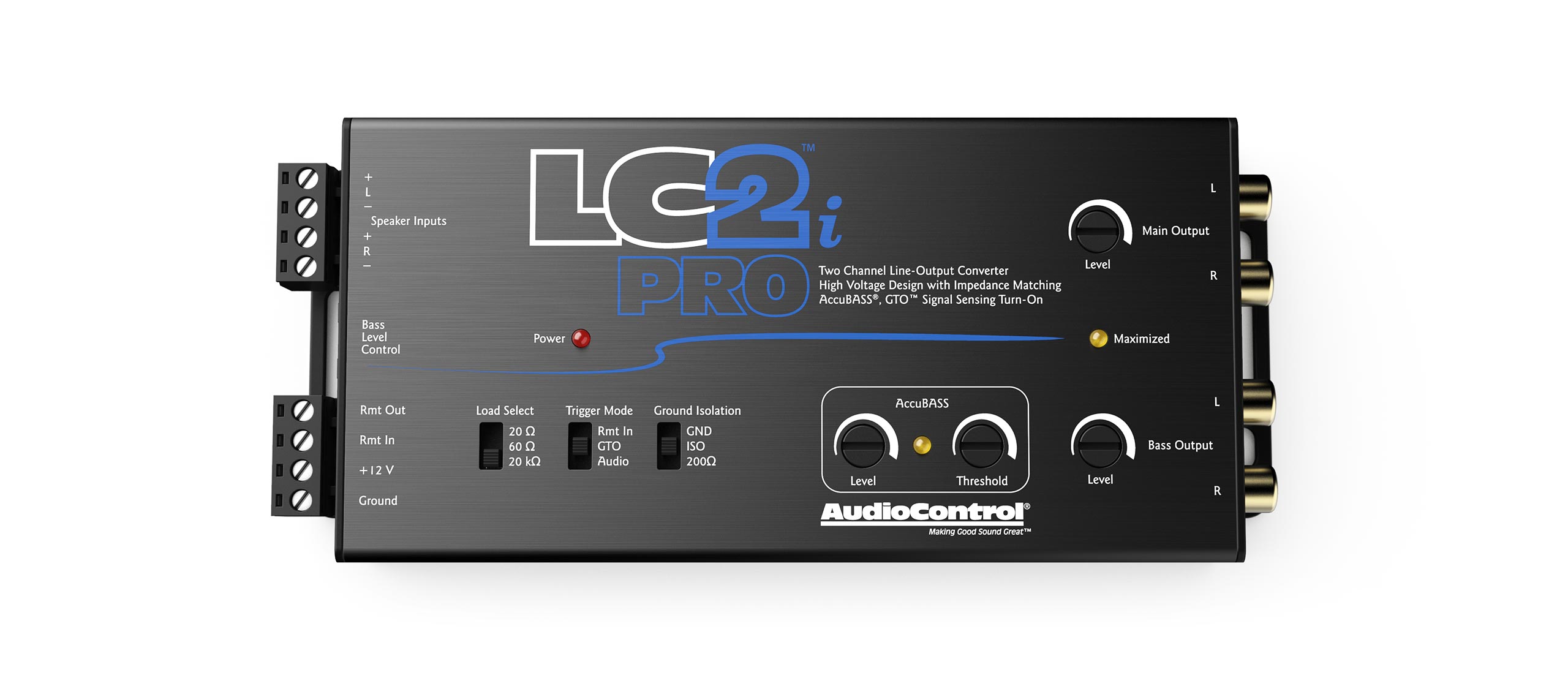

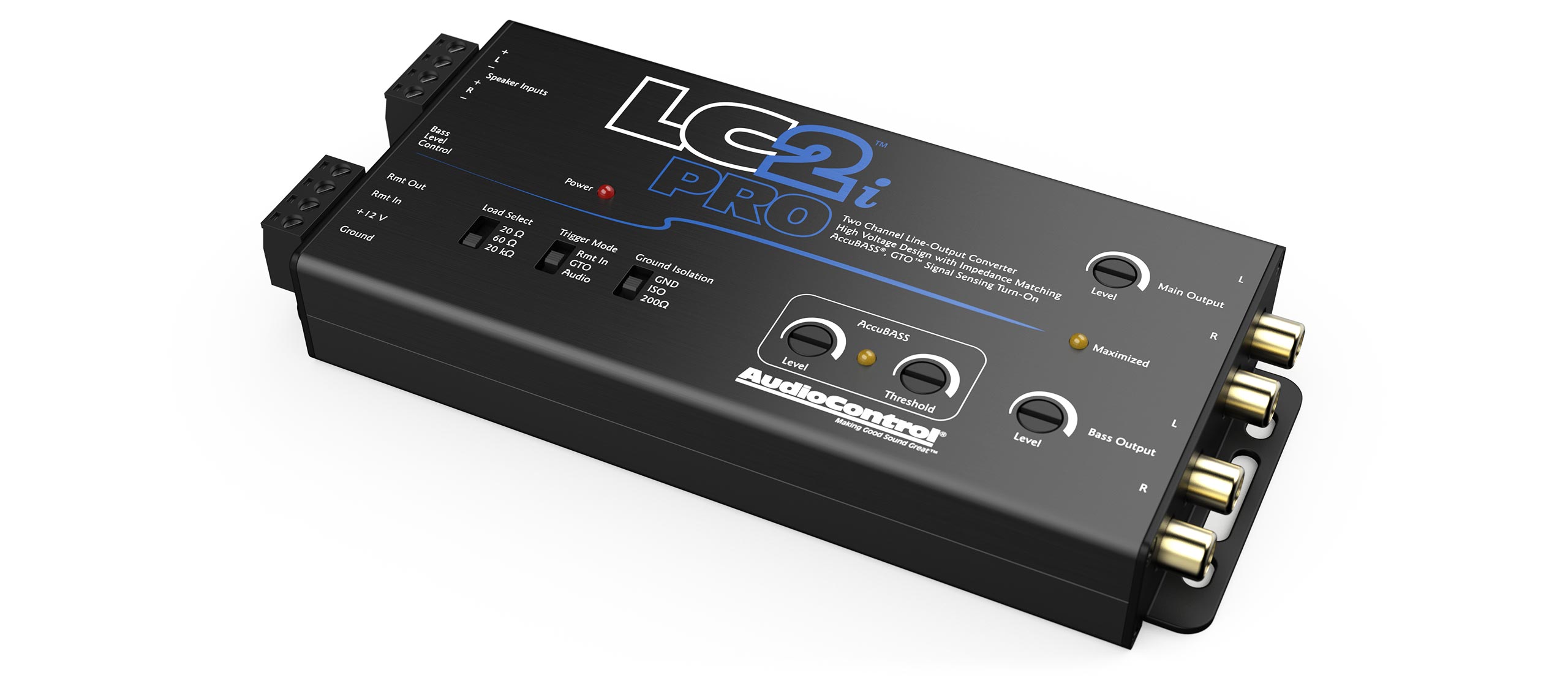

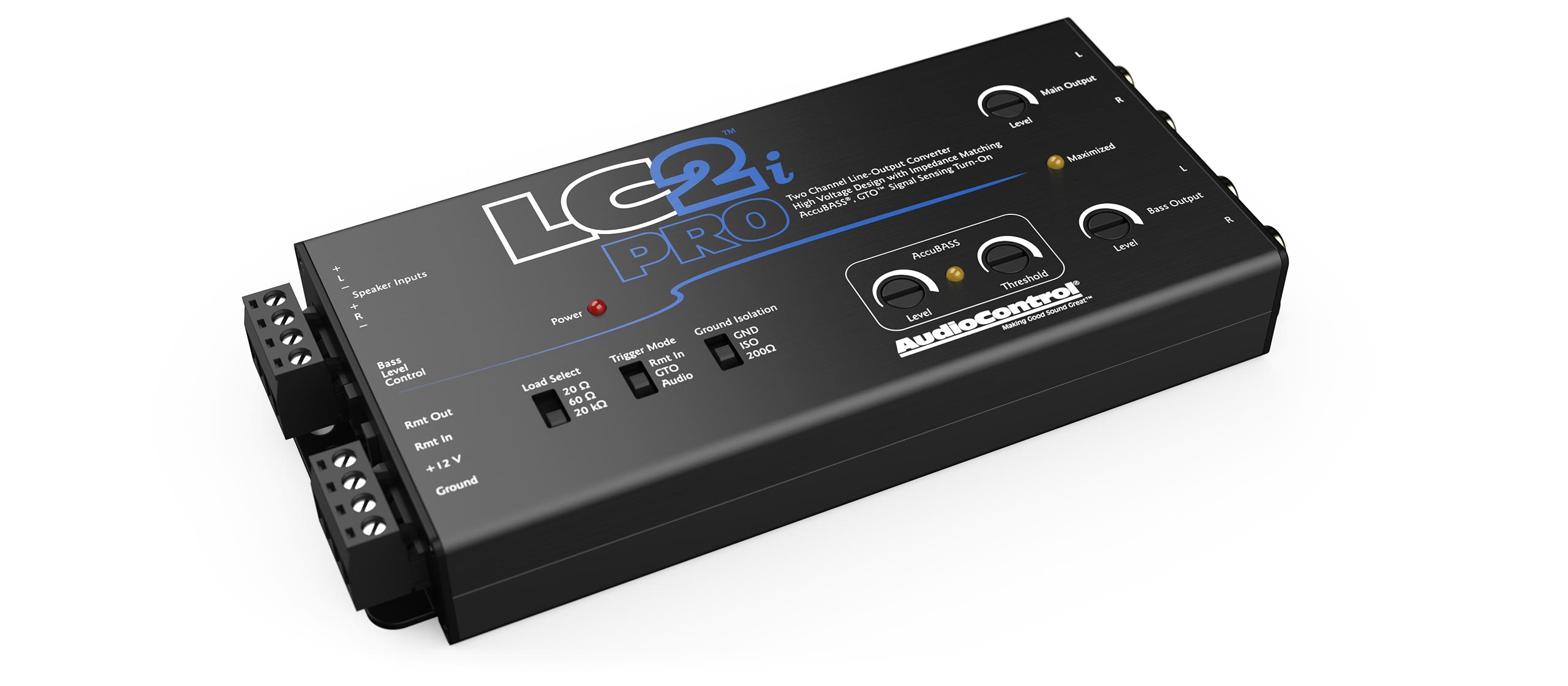

Audiocontrol LC2i PRO

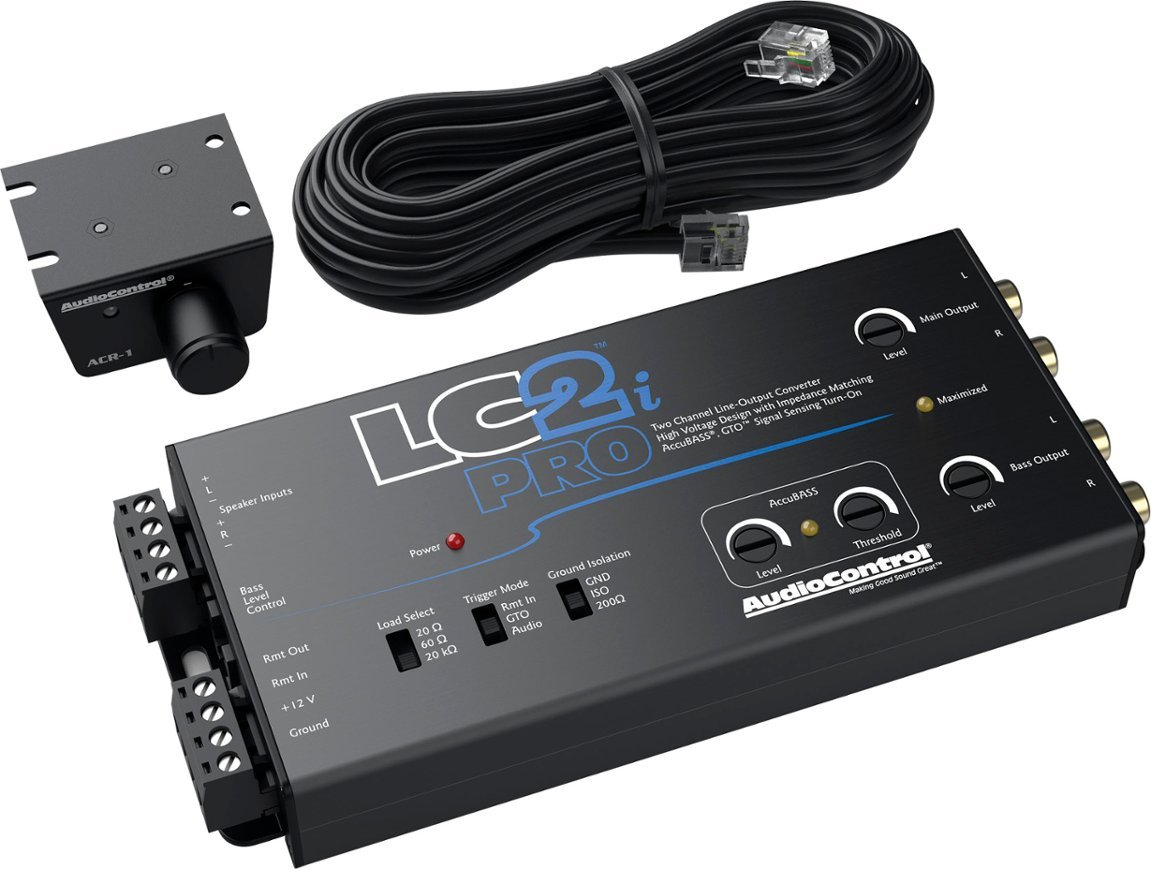

Features Two channels of active speaker level inputs (up to 40V input handling) Fixed and variable outputs with discrete level controls AccuBASS® processing for correction of bass roll-off Load Selection Switch GTOTM Signal Sensing Ground Isolation Switch ACR-1 dash remote included Compact design Specifications Inputs Speaker Level Input: 1 (2 channels) Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting) Input Impedance (selectable): 20Ω, 60Ω, 20kΩ Outputs Preamp Outputs: 2 (2 channels main, 2 channels bass) Maximum Output Level: 9.5Vrms/13V peak Output Gain: +/- 12 dB Output Impedance: 150Ω Performance Total Harmonic Distortion: 0.01% Signal to Noise: >110 dB Frequency Response: 20 Hz – 50 kHz ±1 dB Control Remote In / GTO™ Signal Sense / Audio Sense 12VDC Remote Out (always active when unit is on) General Current Draw: 200 mA Recommended Fuse Rating: 1 A Weights & Dimensions Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors) Weight: 0.75 lbs. (0.34 kg) What's in the box: LC2i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
