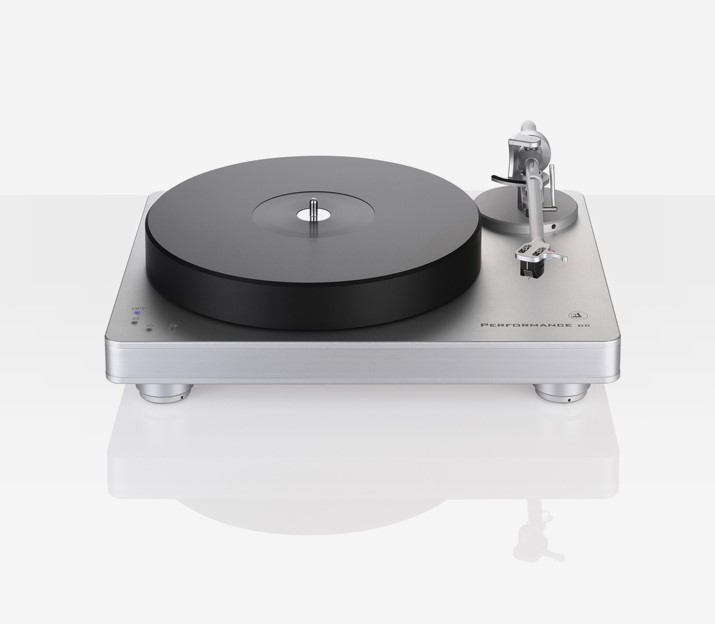

Clearaudio Performance DC

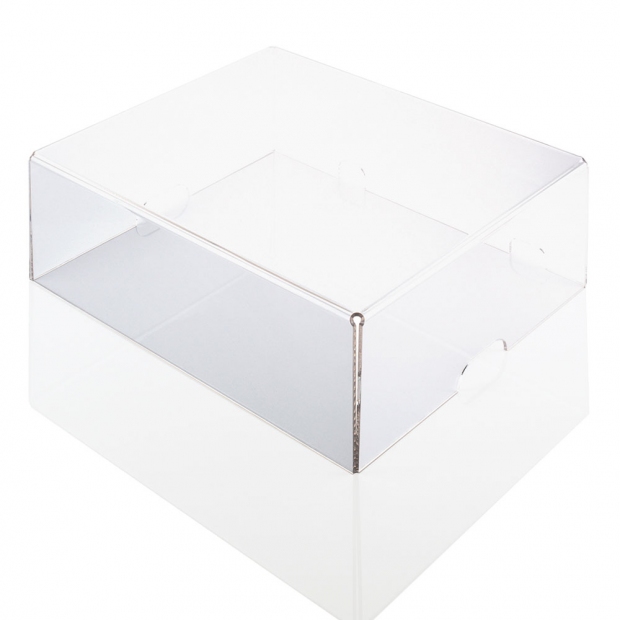

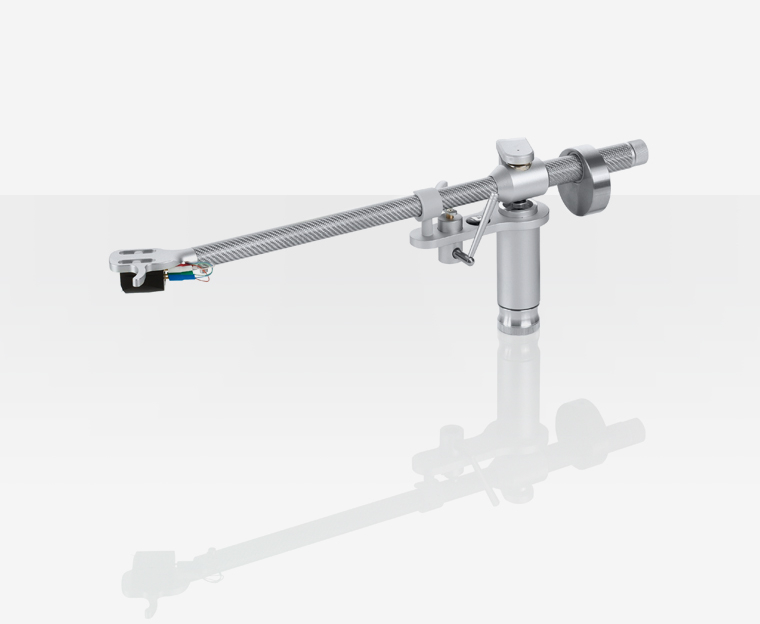

Alla original kartonger finns så skivspelaren kommer att skickas som 2 paket ett med drivverk, tonarm, pickup och centrum vikt och ett paket med dammskydd. Tonarm och pickup kommer monterad på drivverket så skivspelaren är inställd och spelklar. Tekniska Data Preformance DC Construction details: Resonance-optimised body, highly compressed wood chassis in sandwich construction embedded between two aluminium plates. Speed options: 33 ⅓, 45, 78rpm Drive unit: Decoupled and resonance damped 12V DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies. Bearing: Cut and polished ceramic shaft in a sintered bronze bushing, Clearaudio ceramic magnetic bearing (CMB) Platter:Synthetic material, surface CNC-precision milled, Surface CNC-precision milled, 1.1 inches / 40mm thickness Speed accuracy (measured): ± 0.05% Power consumption: Max. consumption: 3.3 watts Consumption in operation: 1.6 watts Standby mode: < 0.5 watts Off mode: 0.0 watts Total weight: Approx. 11.0kg Dimensions (W/D/H): Approx. 420 × 330 × 125mm (without tonearm) Clearaudio Clarify Construction Details Carbon Fiber, friction-free tonearm with magnetic bearing technology – micrometer-style precision adjustable counter weight Cartridge balance range 2.5 gram – 17 gram Null points Inner: 66.0 mm Outer: 120.9 mm Overhang 17.31 mm Wiring clearaudio Direct Wire Plus (1.1 m) terminated with RCA plug Distance from pivot to stylus 222 mm Offset angle 25.54 ° Maximum Tilt angle according to the radius 0.123 °/cm Middle skatingfactor at a radius of 62.9 mm and 126.9 mm 0.43 Effective Tonearm length 9 inches (exact 239.31 mm) Overall length 335 mm Mounting style Clearaudio (diameter of bore 24.85 mm) Weight 320 gram 410 gram (incl. counter weight) Talisman V2 Gold Total mass 10.6 – 11.2g Frequency response 20Hz – 20kHz Output voltage (at 5 cm/sec) 0.5mV Channel separation 25 – 30dB Channel balance < 0.5dB Tracking ability 80μm Recommended tracking force 2.8g (± 0.2g) Cartridge impedance 50Ω Cantilever / stylus shape Boron / Clearaudio Prime Line Compliance 15μ/mN Coil assembly Absolutely symmetrical design Coil material 24 carat gold Cartridge body Hand polished ebony wood body Acrylic Dust cover for Performance / Performance DC Dimensions (W/D/H in mm): 468 x 375 x 174 Concept record weight Record weight made of aluminum with an integrated Teflon bushing on the underside for smooth placement (215g).
