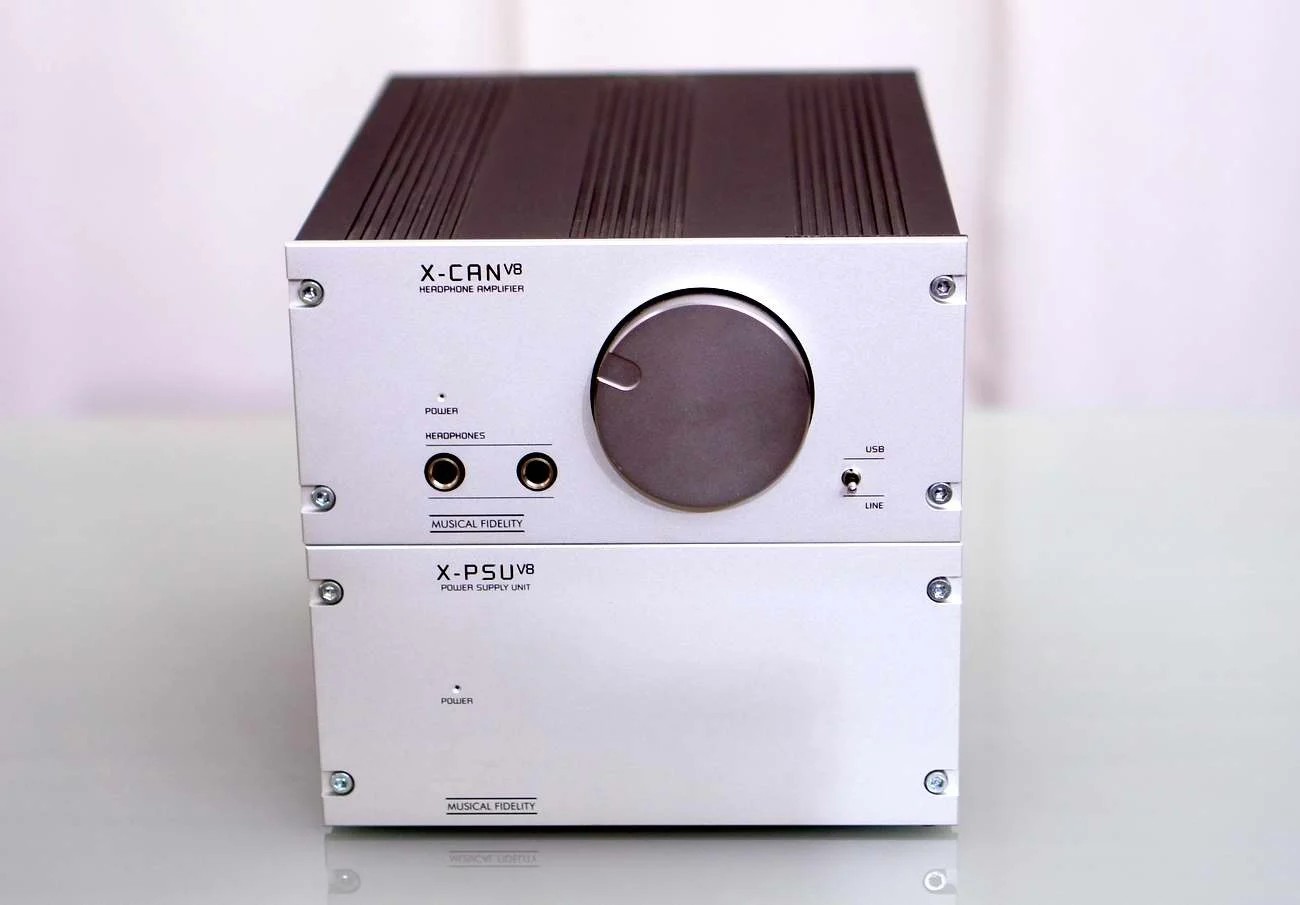

Musical Fidelity X-CAN V8 + X-PSU V8

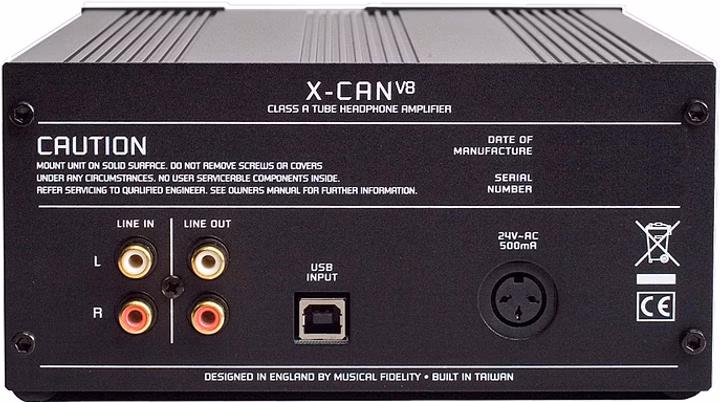

Specifikationer och funktioner X-CAN V8 DAC: DAC circuit 24 bit Delta-Sigma (Bit stream) dual differential 8X over sampling Up sampling 192 kHz Total correlated jitter < 135 pS Linearity < 0.1dB down to -96dB Output digital 0dB level 2.18VRMS at 1 kHz nominal Analogue output impedance 47 Ohms Frequency response 10Hz to 20 kHz -0.2dB max Channel separation > 105dB 20Hz to 20 kHz Signal / noise ratio > 117dB “A” weighted Total harmonic distortion < 0.003% 10Hz to 20 kHz Connections: Digital inputs 1 USB 1.1 [32, 44.1, 48 kHz sample rates] connection for computer only 3 S/PDIF (RCA connector) Digital outputs 1 S/PDIF (RCA connector) Line level analogue outputs: 1 pair RCA Power requirement: 100 / 115 / 230Volts AC 50 / 60Hz (factory pre-set), 16 W no devices connected, idle 26 W all devices connected, idle 30 W maximum Weight: 4.15 kg, unit only, unboxed 6.4 kg, 14.1 in shipping carton Dimensions: 219 mm wide 88 mm high including feet 340 mm deep including terminals Standard accessories: Remote control (X-V8 series, universal type), 2 batteries size LR03 or AAA, manganese alkaline type 10A IEC Mains lead Specifikationer och funktioner X-PSU V8 Connections: Power outputs: 4 off 3 way DIN socket Power requirement: 100W maximum Weight: 3.0 kg unit only unboxed 4.3 kg in shipping carton Dimensions: 180 mm 88 mm high including feet 235 mm deep including terminals (total 320mm with plugs in) Standard accessories: 10A IEC Mains lead
