DESIGN

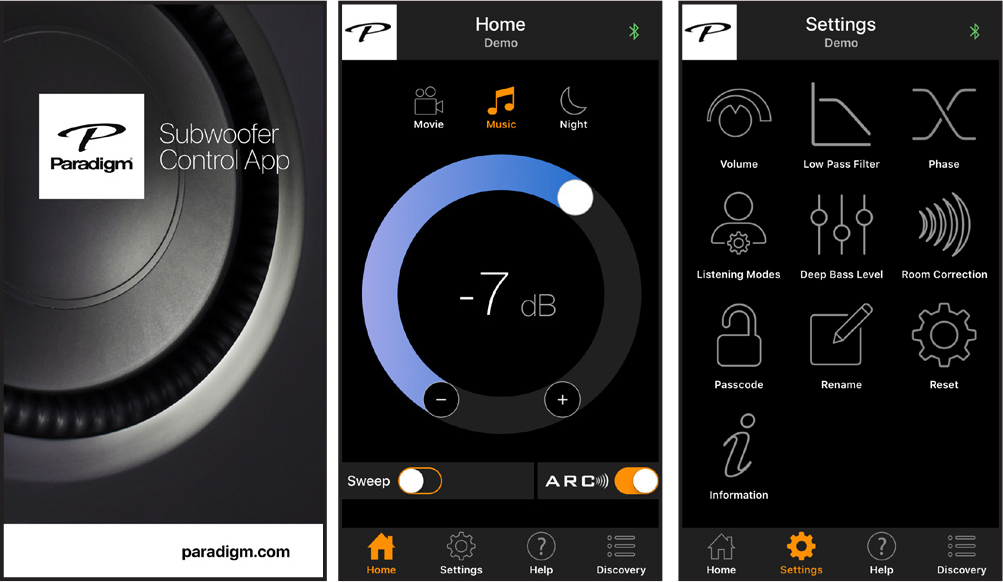

10" (254 mm) Driver, 120W RMS (250W Dynamic Peak), Class-D amplifier, App controlled via smartphone, Anthem Room Correction (ARC®) Ready.
AMPLIFIER 250 watts Dynamic Peak; 120 watts RMS
AMPLIFIER FEATURES Auto-On / Off, improved soft-clipping circuitry
FREQUENCY RESPONSE ON-AXIS ±3 dB from 29Hz – 200Hz

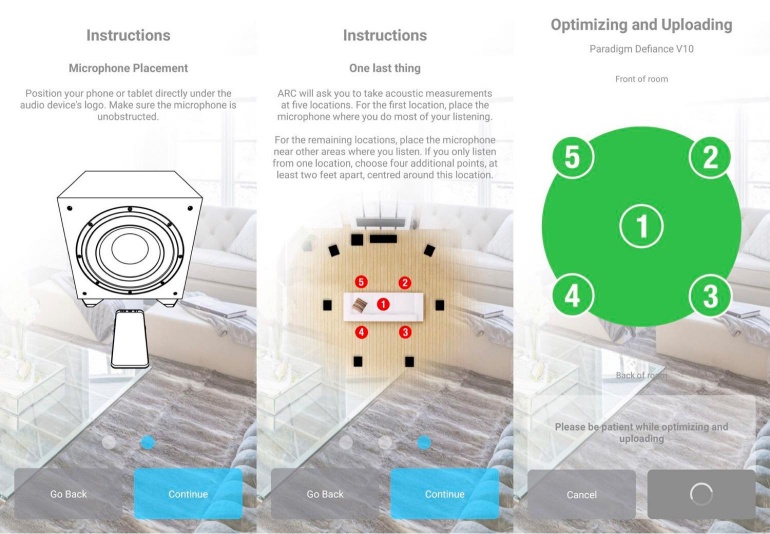

ROOM CORRECTION Anthem Room Correction (ARC®)

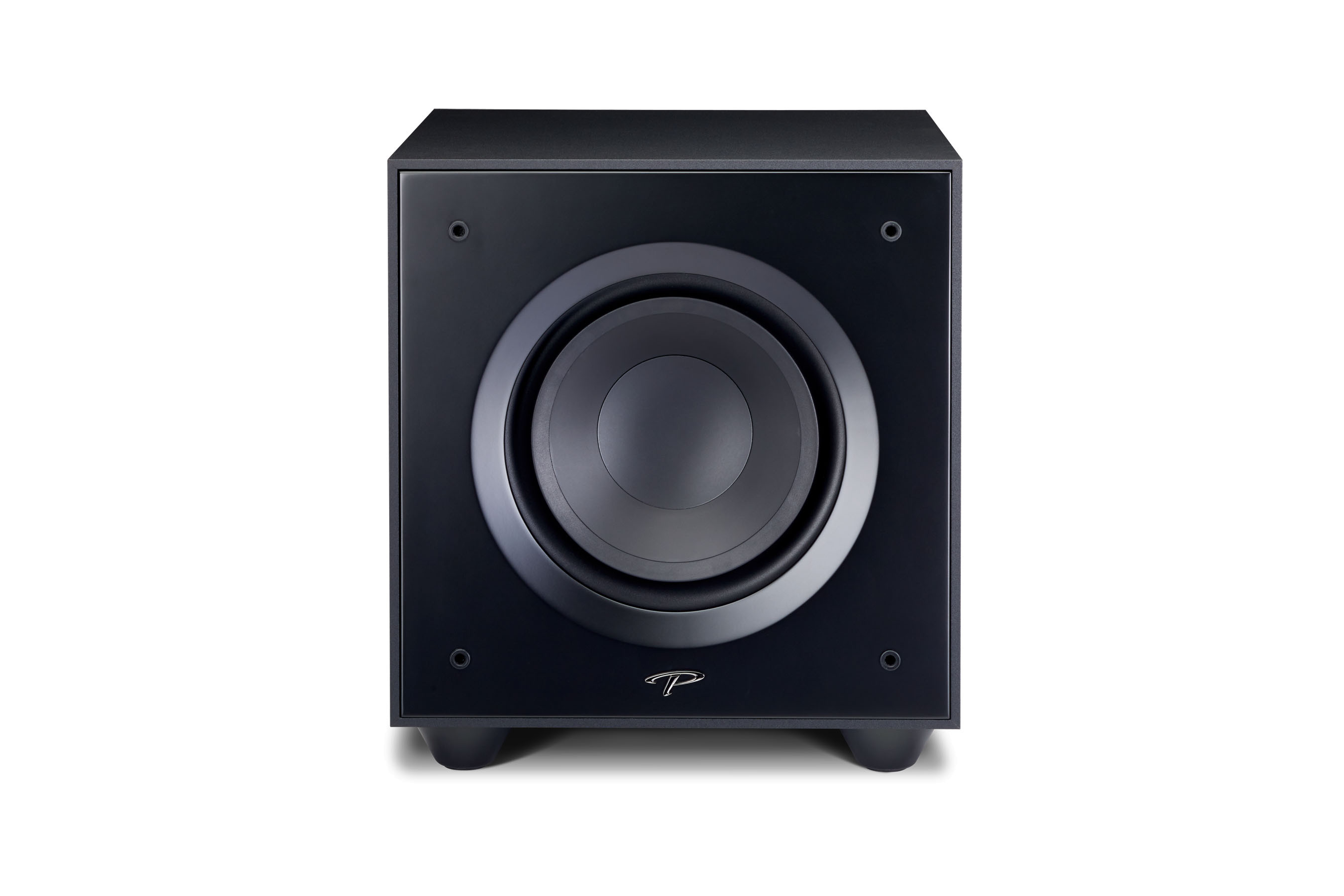

LOW FREQUENCY DRIVER 10" (254 mm) carbon-loaded polypropylene cone
SENSITIVITY ROOM / ANECHOIC 100mV mono (max. volume) /
IMPEDANCE RCA: 8.3k ohms

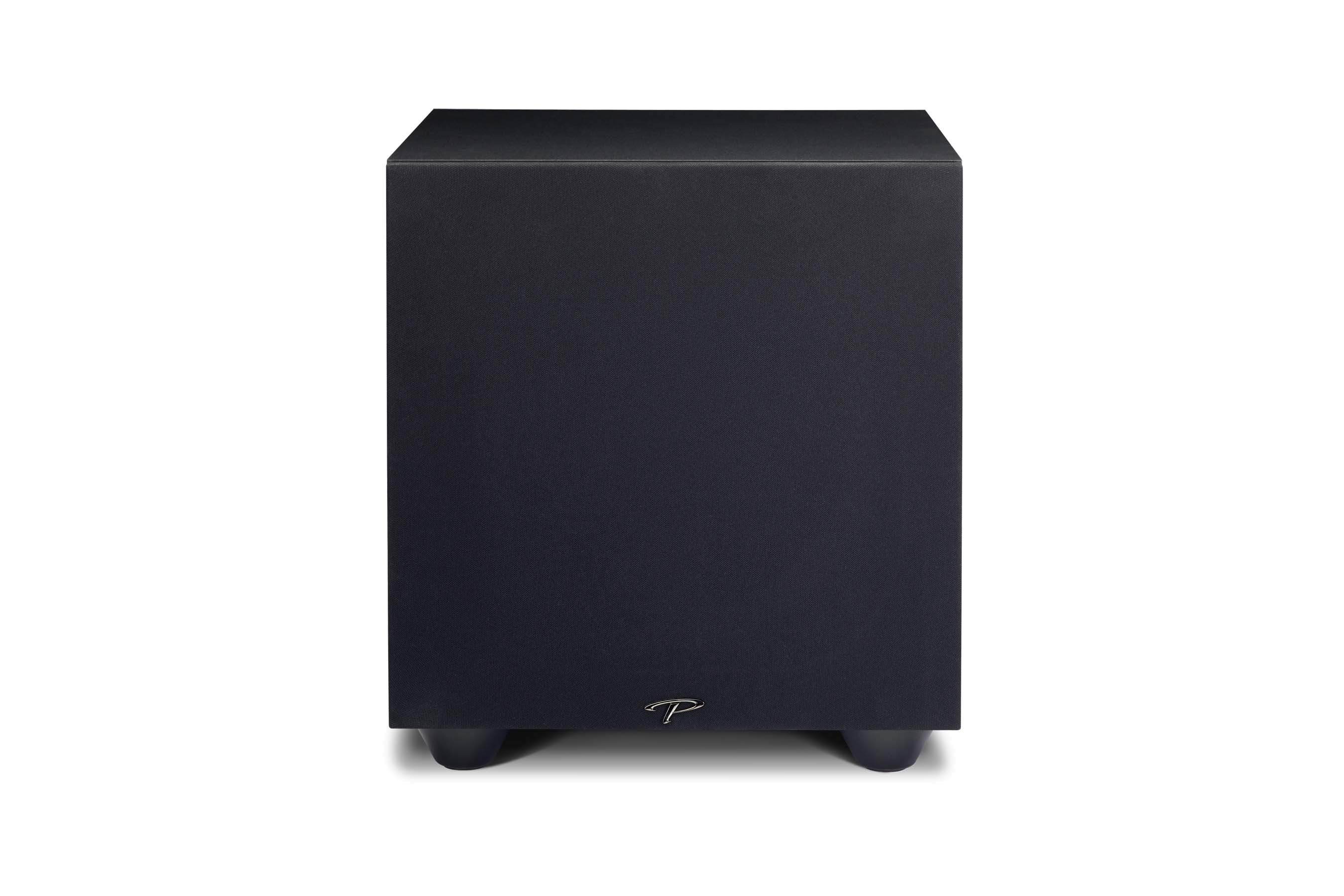

FINISHES Satin Black
WEIGHT 15.23 kg
LOW FREQUENCY EXTENSION 26 Hz (DIN)
LOW PASS FILTER FREQUENCY Variable 35Hz - 120Hz; Bypass Option
SUB / SAT PHASE ALIGNMENT Continuously Variable 0° - 180° Under App. Control

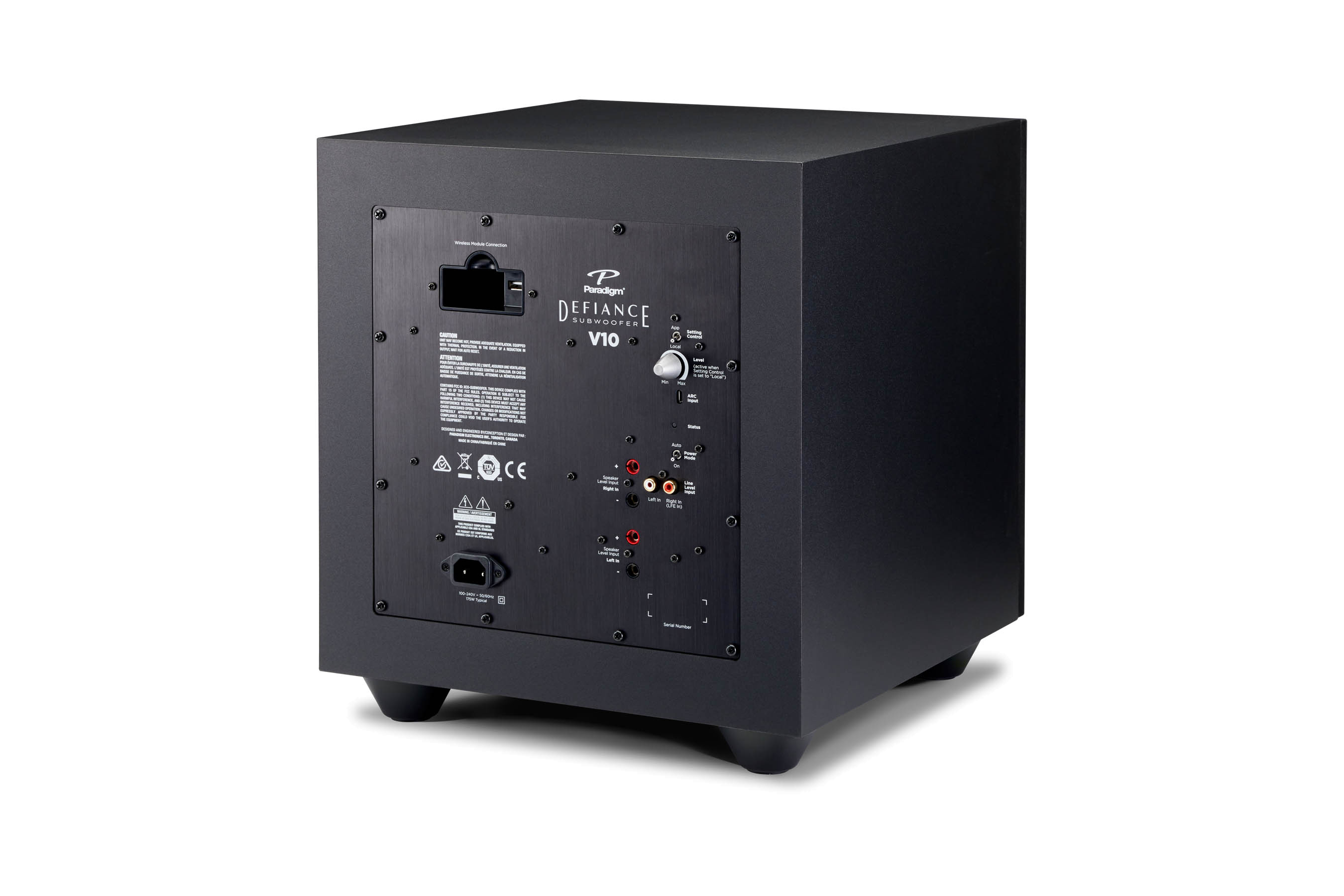

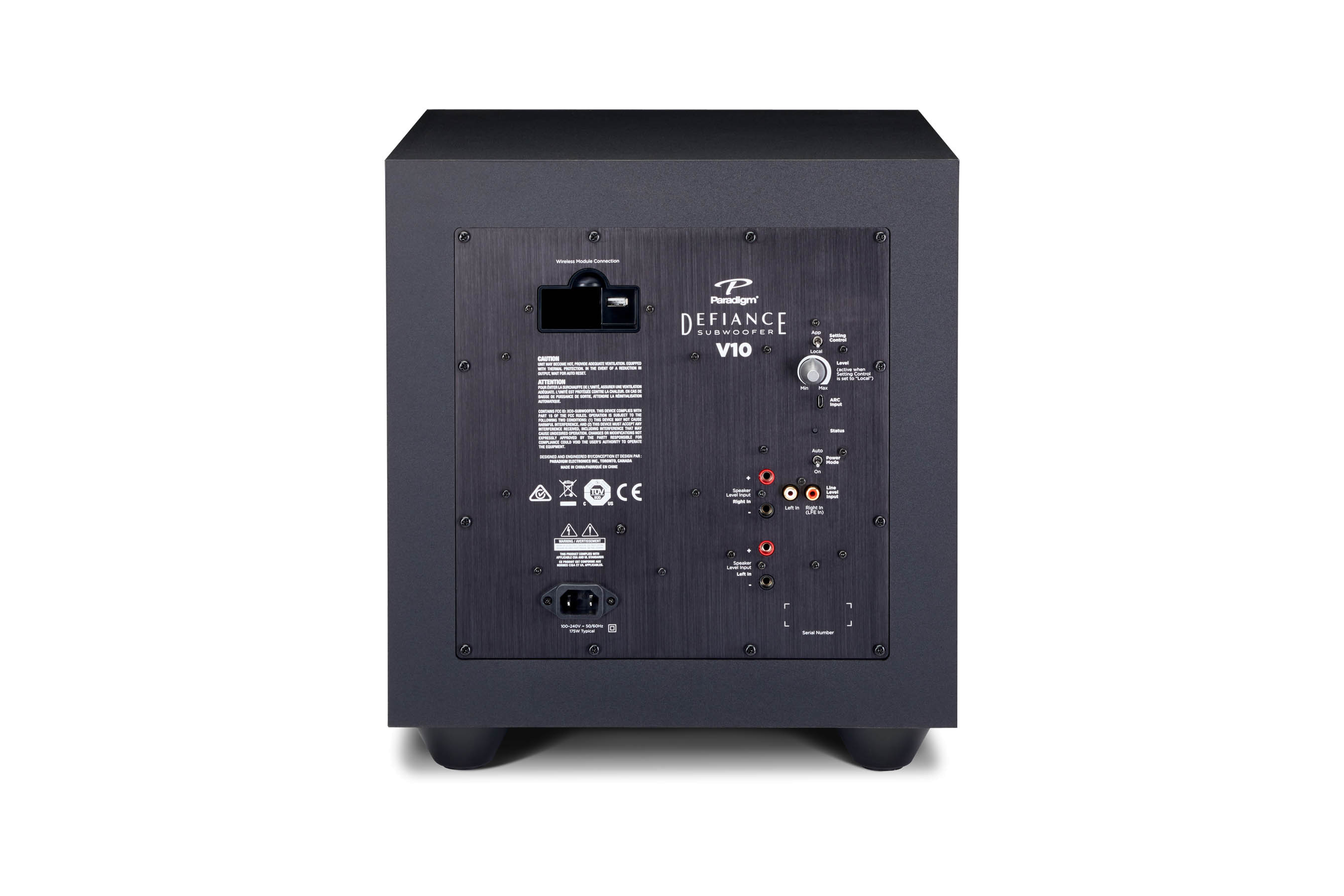

INPUTS
Two RCA (Left and Right/LFE) for left/right lineout or Sub-Out from receiver/processor or other line-level source, Two Speaker Level (Left and Right) for input from amplifier or other speaker level source, One Micro USB for ARC™ and firmware updates
COMPATIBLE PRODUCTS
Defiance WT Wireless Kit (sold separately)
DIMENSIONS HXWXD (INCLUDES GRILLE). 39.9cm × 36.2cm × 39.7cm
